8

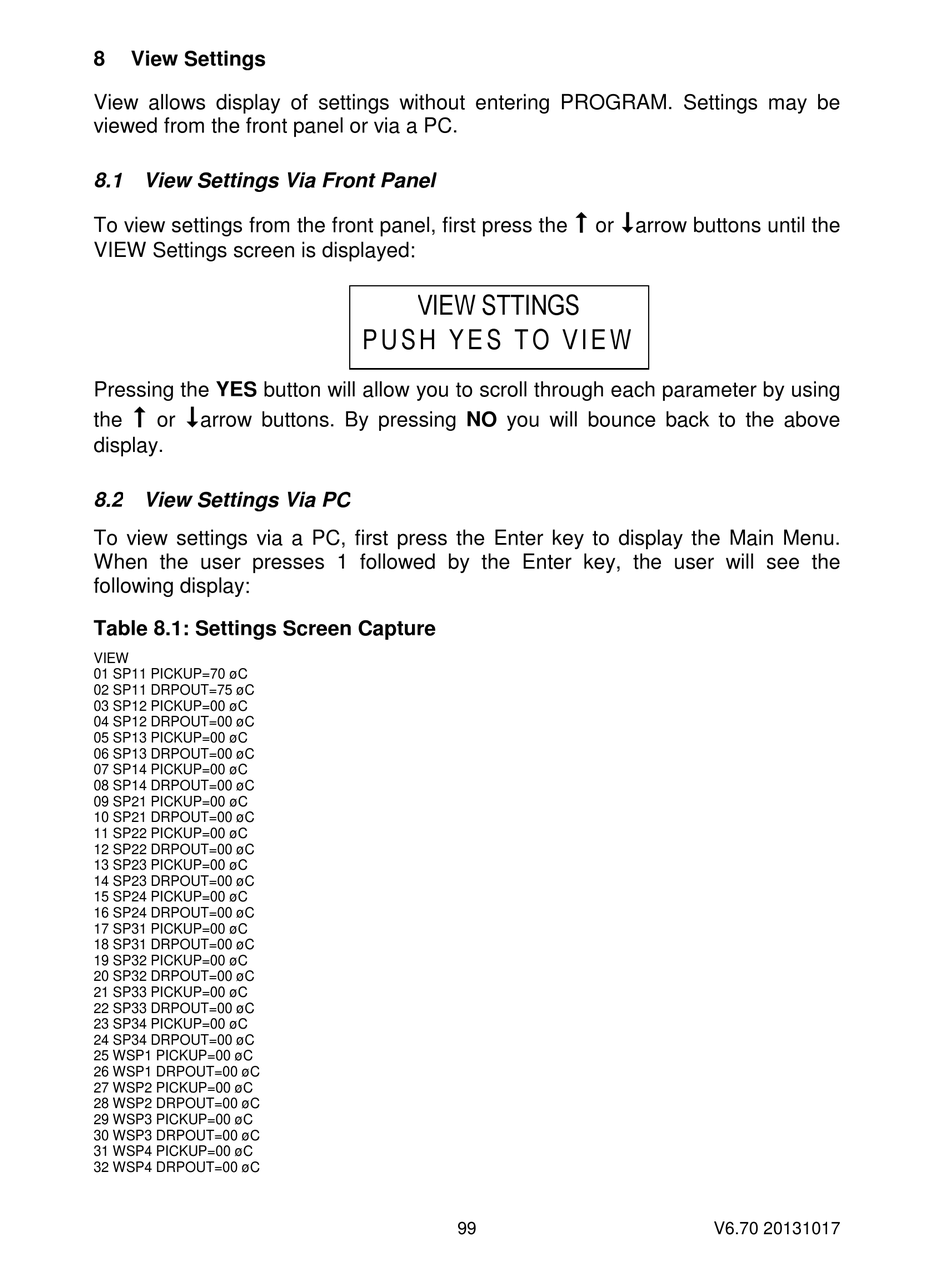

View Settings

View allows display of settings without entering PROGRAM. Settings may be
viewed from the front panel or via a PC.

8.1 View Settings Via Front Panel

 
To view settings from the front panel, first press the or arrow buttons until the
VIEW Settings screen is displayed:
VIEW STTINGS
P U S H Y E S T O V I E W
Pressing the YES button will allow you to scroll through each parameter by using
 
the or arrow buttons. By pressing NO you will bounce back to the above
display.

8.2 View Settings Via PC

To view settings via a PC, first press the Enter key to display the Main Menu.
When the user presses 1 followed by the Enter key, the user will see the
following display:
Table 8.1: Settings Screen Capture
VIEW
01 SP11 PICKUP=70 øC
02 SP11 DRPOUT=75 øC
03 SP12 PICKUP=00 øC
04 SP12 DRPOUT=00 øC
05 SP13 PICKUP=00 øC
06 SP13 DRPOUT=00 øC
07 SP14 PICKUP=00 øC
08 SP14 DRPOUT=00 øC
09 SP21 PICKUP=00 øC
10 SP21 DRPOUT=00 øC
11 SP22 PICKUP=00 øC
12 SP22 DRPOUT=00 øC
13 SP23 PICKUP=00 øC
14 SP23 DRPOUT=00 øC
15 SP24 PICKUP=00 øC
16 SP24 DRPOUT=00 øC
17 SP31 PICKUP=00 øC
18 SP31 DRPOUT=00 øC
19 SP32 PICKUP=00 øC
20 SP32 DRPOUT=00 øC
21 SP33 PICKUP=00 øC
22 SP33 DRPOUT=00 øC
23 SP34 PICKUP=00 øC
24 SP34 DRPOUT=00 øC
25 WSP1 PICKUP=00 øC
26 WSP1 DRPOUT=00 øC
27 WSP2 PICKUP=00 øC
28 WSP2 DRPOUT=00 øC
29 WSP3 PICKUP=00 øC
30 WSP3 DRPOUT=00 øC
31 WSP4 PICKUP=00 øC
32 WSP4 DRPOUT=00 øC
99 V6.70 20131017
