Press the YES button. The first digit will flash. Use the
scroll through the digits 0 – 9. Use the
digits. The currently active digit will flash. Press YES after you have entered all
four digits.
For programming from a PC, enter PROGRAM through the main menu as
discussed in Section 0. Once in PROGRAM, type the setting for the node
address on the "Enter:" line as follows:
This will set the node address to 7.

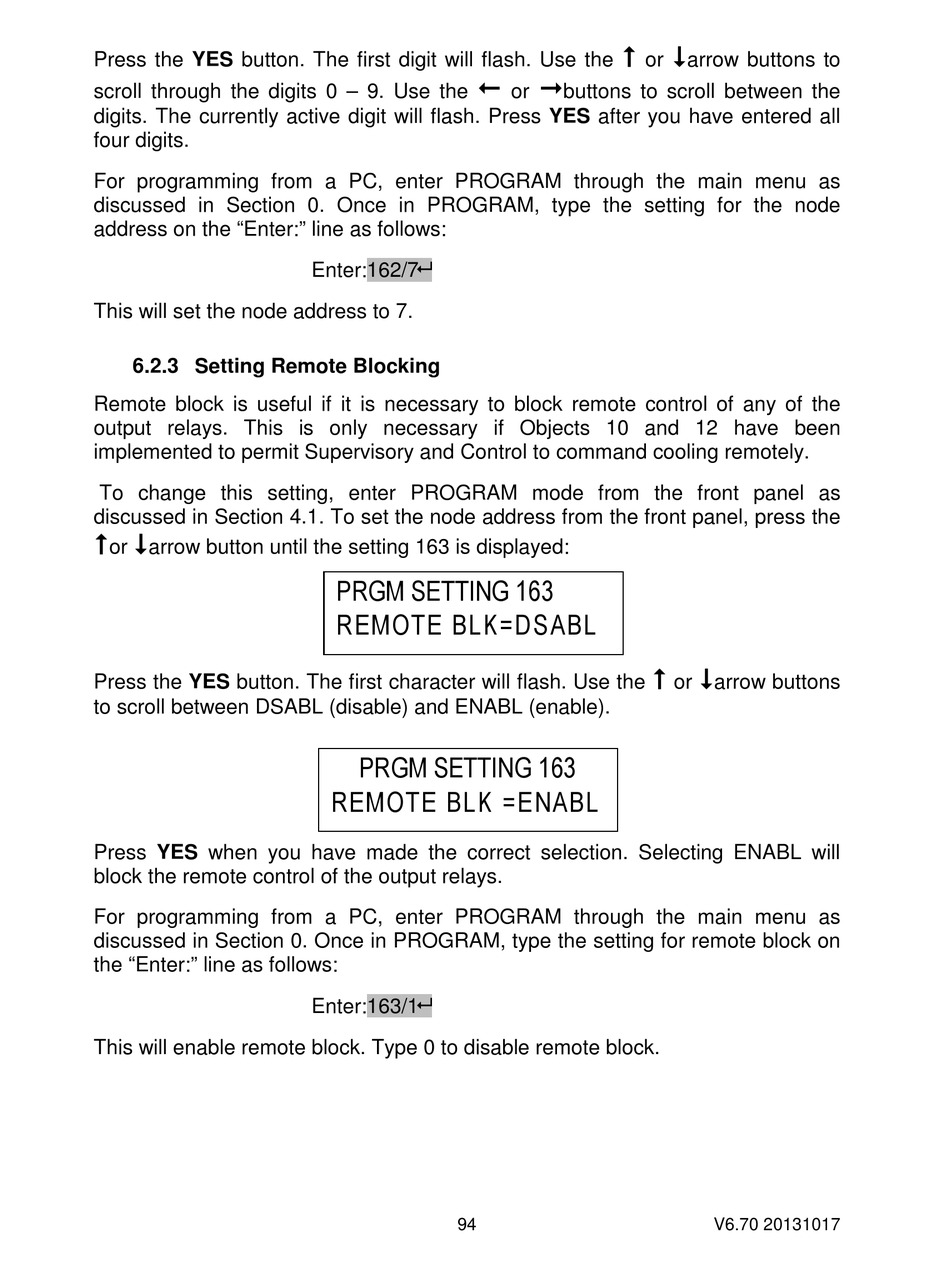

6.2.3 Setting Remote Blocking

Remote block is useful if it is necessary to block remote control of any of the
output relays. This is only necessary if Objects 10 and 12 have been
implemented to permit Supervisory and Control to command cooling remotely.
To change this setting, enter PROGRAM mode from the front panel as
discussed in Section 4.1. To set the node address from the front panel, press the
 
or arrow button until the setting 163 is displayed:
Press the YES button. The first character will flash. Use the
to scroll between DSABL (disable) and ENABL (enable).
Press YES when you have made the correct selection. Selecting ENABL will
block the remote control of the output relays.
For programming from a PC, enter PROGRAM through the main menu as
discussed in Section 0. Once in PROGRAM, type the setting for remote block on
the "Enter:" line as follows:
This will enable remote block. Type 0 to disable remote block.

Enter:162/7
PRGM SETTING 163
REMOTE BLK=DSABL
PRGM SETTING 163
REMOTE BLK =ENABL
Enter:163/1
94
 
or

or buttons to scroll between the

or
arrow buttons to

arrow buttons
V6.70 20131017
