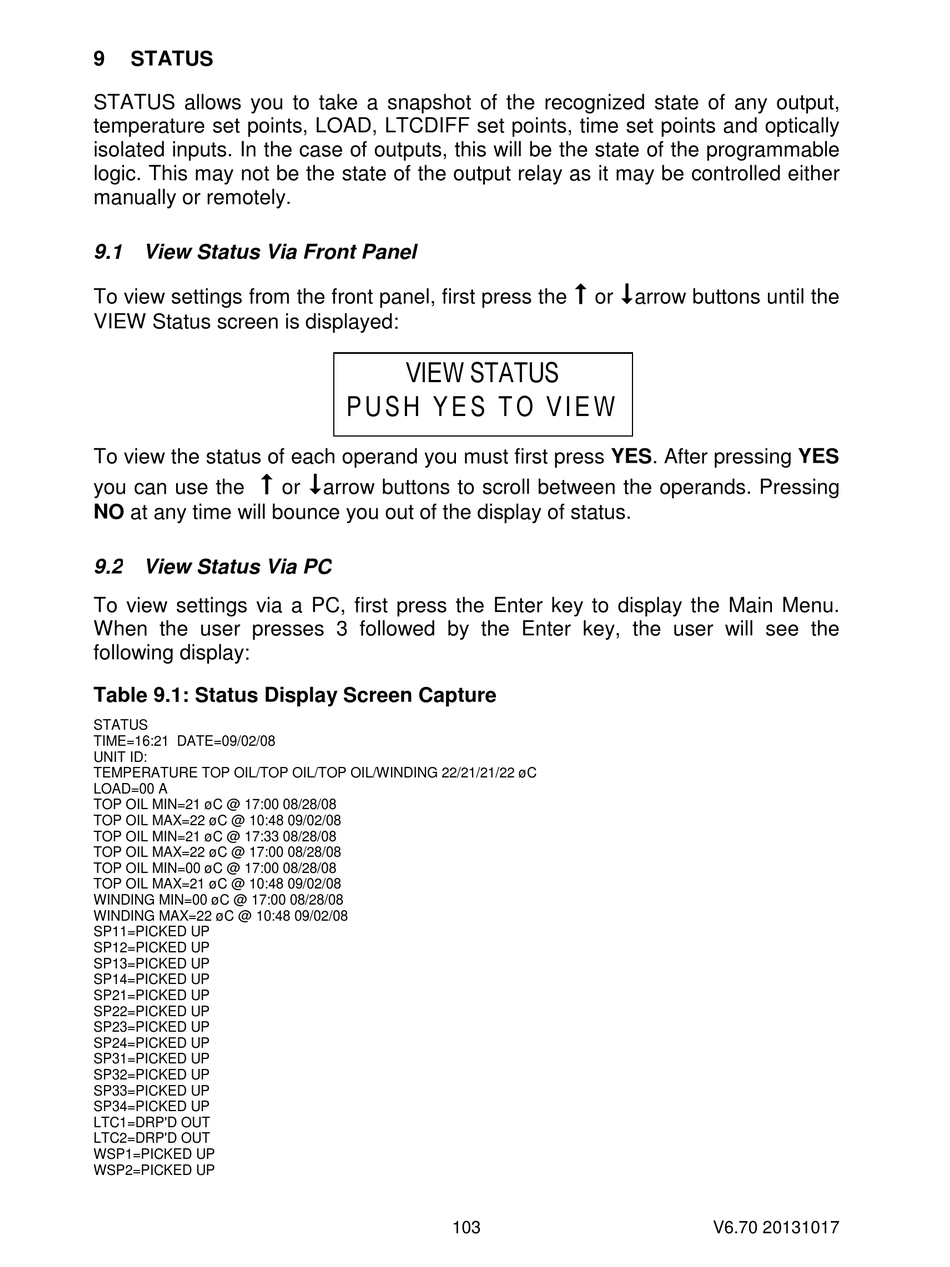

9

STATUS

STATUS allows you to take a snapshot of the recognized state of any output,
temperature set points, LOAD, LTCDIFF set points, time set points and optically
isolated inputs. In the case of outputs, this will be the state of the programmable
logic. This may not be the state of the output relay as it may be controlled either
manually or remotely.

9.1 View Status Via Front Panel

 
To view settings from the front panel, first press the or arrow buttons until the
VIEW Status screen is displayed:
VIEW STATUS
P U S H Y E S T O V I E W
To view the status of each operand you must first press YES. After pressing YES
 
you can use the or arrow buttons to scroll between the operands. Pressing
NO at any time will bounce you out of the display of status.

9.2 View Status Via PC

To view settings via a PC, first press the Enter key to display the Main Menu.
When the user presses 3 followed by the Enter key, the user will see the
following display:
Table 9.1: Status Display Screen Capture
STATUS
TIME=16:21 DATE=09/02/08
UNIT ID:
TEMPERATURE TOP OIL/TOP OIL/TOP OIL/WINDING 22/21/21/22 øC
LOAD=00 A
TOP OIL MIN=21 øC @ 17:00 08/28/08
TOP OIL MAX=22 øC @ 10:48 09/02/08
TOP OIL MIN=21 øC @ 17:33 08/28/08
TOP OIL MAX=22 øC @ 17:00 08/28/08
TOP OIL MIN=00 øC @ 17:00 08/28/08
TOP OIL MAX=21 øC @ 10:48 09/02/08
WINDING MIN=00 øC @ 17:00 08/28/08
WINDING MAX=22 øC @ 10:48 09/02/08
SP11=PICKED UP
SP12=PICKED UP
SP13=PICKED UP
SP14=PICKED UP
SP21=PICKED UP
SP22=PICKED UP
SP23=PICKED UP
SP24=PICKED UP
SP31=PICKED UP
SP32=PICKED UP
SP33=PICKED UP
SP34=PICKED UP
LTC1=DRP'D OUT
LTC2=DRP'D OUT
WSP1=PICKED UP
WSP2=PICKED UP
103 V6.70 20131017
