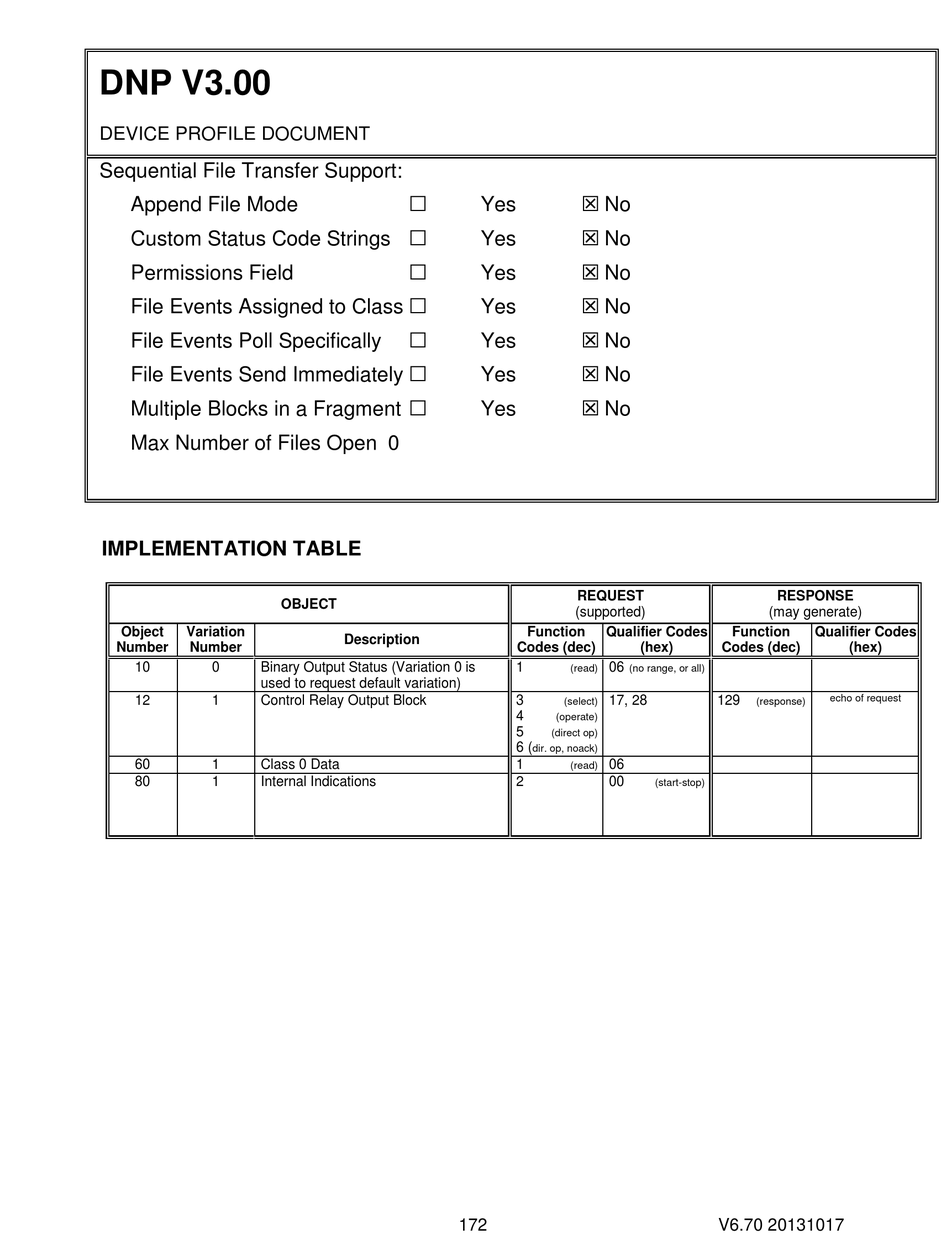

DNP V3.00
DEVICE PROFILE DOCUMENT
Sequential File Transfer Support:
Append File Mode
Custom Status Code Strings 
Permissions Field
File Events Assigned to Class 
File Events Poll Specifically
File Events Send Immediately 
Multiple Blocks in a Fragment 
Max Number of Files Open 0
IMPLEMENTATION TABLE
Object Variation
Number Number
10 0 Binary Output Status (Variation 0 is
used to request default variation)
12 1 Control Relay Output Block
60 1 Class 0 Data
80 1 Internal Indications



OBJECT
Description
172
 No
Yes
 No
Yes
 No
Yes
 No
Yes
 No
Yes
 No
Yes
 No
Yes
REQUEST
(supported)
Function Qualifier Codes
Codes (dec) (hex)
1 06
(read) (no range, or all)
3 17, 28
(select)
4
(operate)
5
(direct op)
6 (
dir. op, noack)
1 06
(read)
2 00
(start-stop)
RESPONSE
(may generate)
Function Qualifier Codes
Codes (dec) (hex)
129 echo of request
(response)
