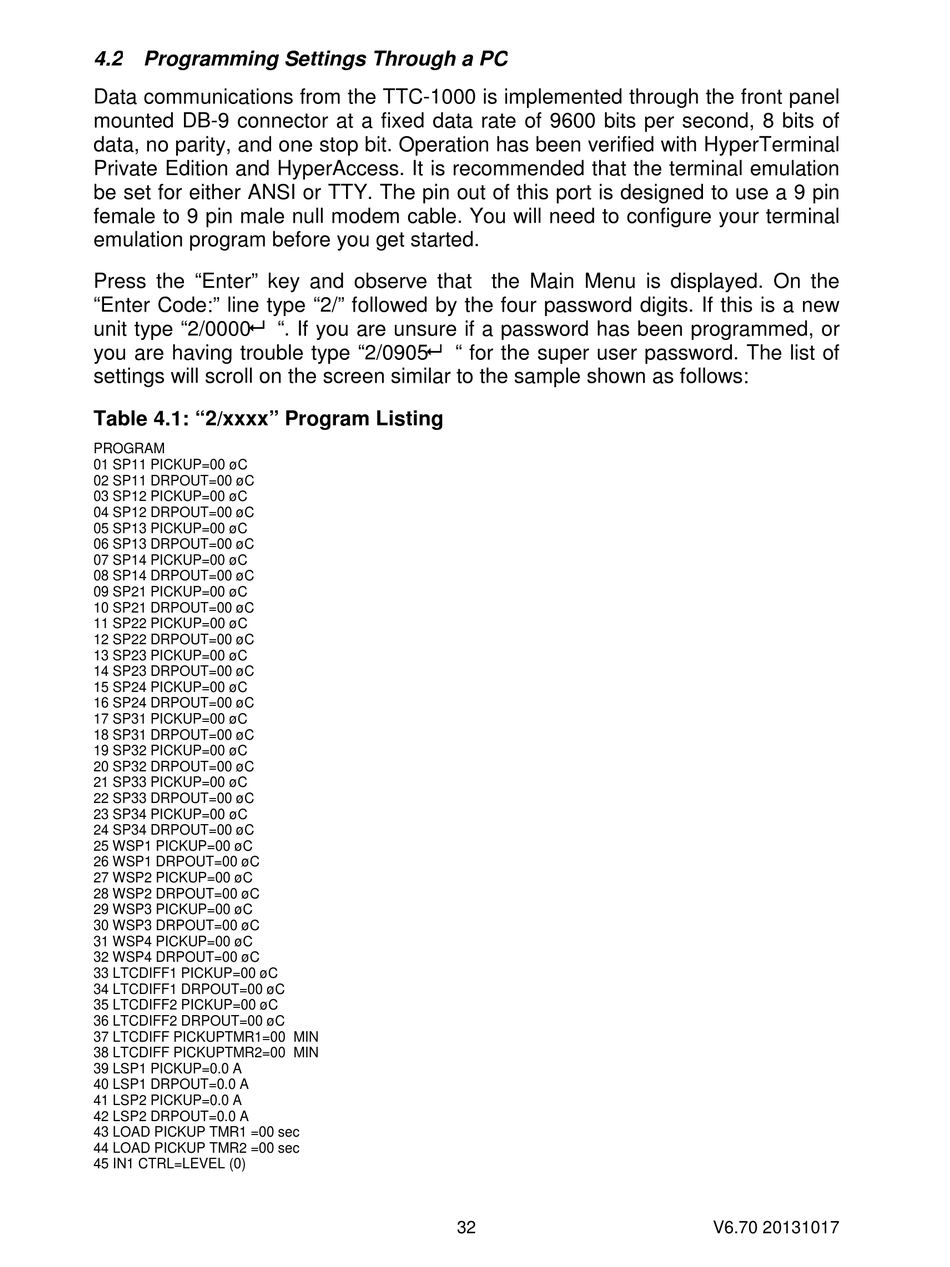

4.2 Programming Settings Through a PC

Data communications from the TTC-1000 is implemented through the front panel
mounted DB-9 connector at a fixed data rate of 9600 bits per second, 8 bits of
data, no parity, and one stop bit. Operation has been verified with HyperTerminal
Private Edition and HyperAccess. It is recommended that the terminal emulation
be set for either ANSI or TTY. The pin out of this port is designed to use a 9 pin
female to 9 pin male null modem cable. You will need to configure your terminal
emulation program before you get started.
Press the "Enter" key and observe that the Main Menu is displayed. On the
"Enter Code:" line type "2/" followed by the four password digits. If this is a new
unit type "2/0000 ". If you are unsure if a password has been programmed, or
you are having trouble type "2/0905 " for the super user password. The list of
settings will scroll on the screen similar to the sample shown as follows:
Table 4.1: "2/xxxx" Program Listing
PROGRAM
01 SP11 PICKUP=00 øC
02 SP11 DRPOUT=00 øC
03 SP12 PICKUP=00 øC
04 SP12 DRPOUT=00 øC
05 SP13 PICKUP=00 øC
06 SP13 DRPOUT=00 øC
07 SP14 PICKUP=00 øC
08 SP14 DRPOUT=00 øC
09 SP21 PICKUP=00 øC
10 SP21 DRPOUT=00 øC
11 SP22 PICKUP=00 øC
12 SP22 DRPOUT=00 øC
13 SP23 PICKUP=00 øC
14 SP23 DRPOUT=00 øC
15 SP24 PICKUP=00 øC
16 SP24 DRPOUT=00 øC
17 SP31 PICKUP=00 øC
18 SP31 DRPOUT=00 øC
19 SP32 PICKUP=00 øC
20 SP32 DRPOUT=00 øC
21 SP33 PICKUP=00 øC
22 SP33 DRPOUT=00 øC
23 SP34 PICKUP=00 øC
24 SP34 DRPOUT=00 øC
25 WSP1 PICKUP=00 øC
26 WSP1 DRPOUT=00 øC
27 WSP2 PICKUP=00 øC
28 WSP2 DRPOUT=00 øC
29 WSP3 PICKUP=00 øC
30 WSP3 DRPOUT=00 øC
31 WSP4 PICKUP=00 øC
32 WSP4 DRPOUT=00 øC
33 LTCDIFF1 PICKUP=00 øC
34 LTCDIFF1 DRPOUT=00 øC
35 LTCDIFF2 PICKUP=00 øC
36 LTCDIFF2 DRPOUT=00 øC
37 LTCDIFF PICKUPTMR1=00 MIN
38 LTCDIFF PICKUPTMR2=00 MIN
39 LSP1 PICKUP=0.0 A
40 LSP1 DRPOUT=0.0 A
41 LSP2 PICKUP=0.0 A
42 LSP2 DRPOUT=0.0 A
43 LOAD PICKUP TMR1 =00 sec
44 LOAD PICKUP TMR2 =00 sec
45 IN1 CTRL=LEVEL (0)
32 V6.70 20131017
