This will assign IN1 OR'ed to OUT1. To assign !IN1 And'ed OUT1:
Consult the setting sheets to assign IN2 through IN14.

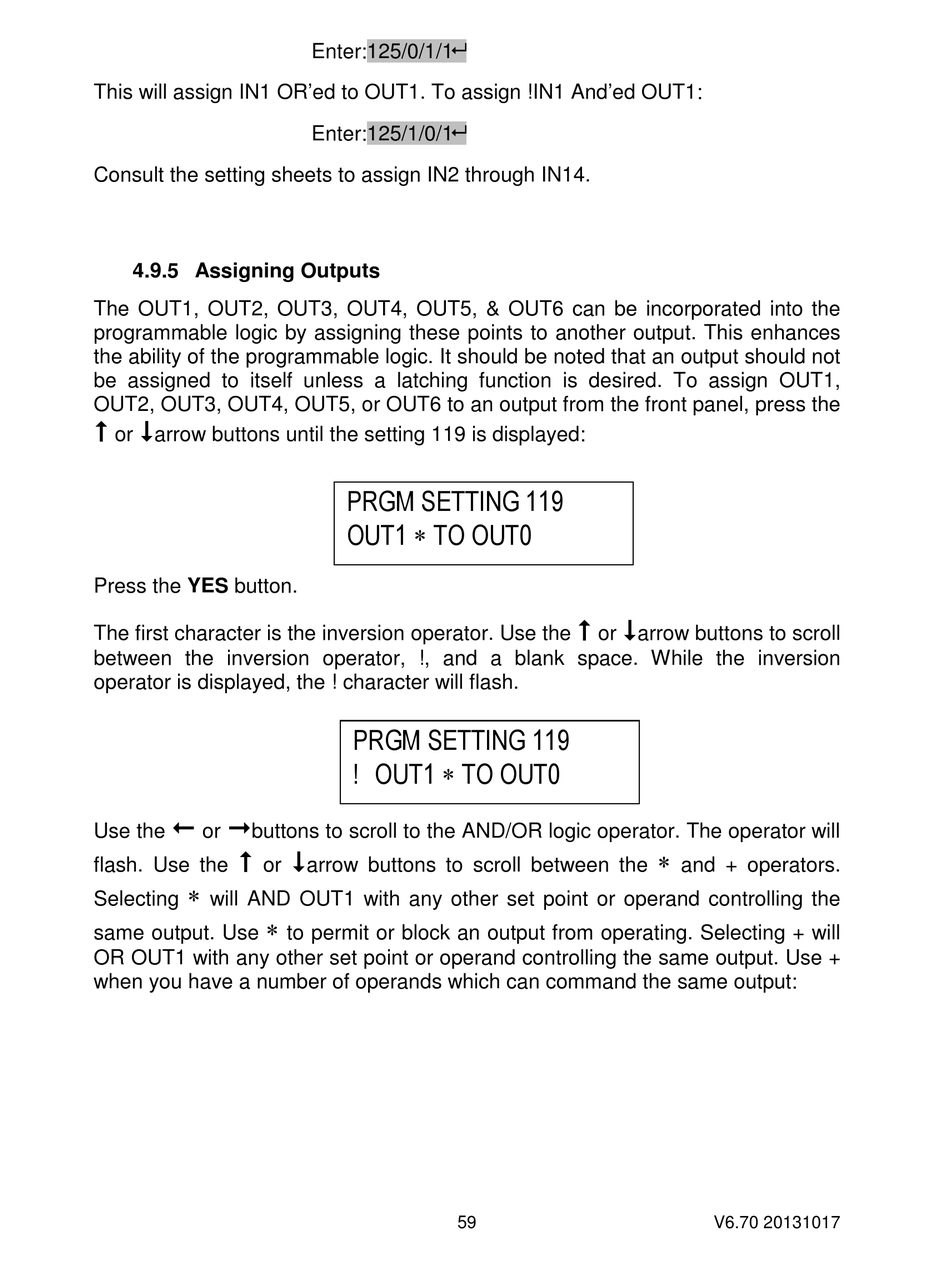

4.9.5 Assigning Outputs

The OUT1, OUT2, OUT3, OUT4, OUT5, & OUT6 can be incorporated into the
programmable logic by assigning these points to another output. This enhances
the ability of the programmable logic. It should be noted that an output should not
be assigned to itself unless a latching function is desired. To assign OUT1,
OUT2, OUT3, OUT4, OUT5, or OUT6 to an output from the front panel, press the
 
or arrow buttons until the setting 119 is displayed:
Press the YES button.
The first character is the inversion operator. Use the
between the inversion operator, !, and a blank space. While the inversion
operator is displayed, the ! character will flash.
 
Use the or buttons to scroll to the AND/OR logic operator. The operator will

flash. Use the or

Selecting will AND OUT1 with any other set point or operand controlling the

same output. Use
OR OUT1 with any other set point or operand controlling the same output. Use +
when you have a number of operands which can command the same output:
Enter:125/0/1/1
Enter:125/1/0/1
PRGM SETTING 119
OUT1  TO OUT0
PRGM SETTING 119
! OUT1  TO OUT0

arrow buttons to scroll between the
to permit or block an output from operating. Selecting + will
59
 
or arrow buttons to scroll

and + operators.
V6.70 20131017
