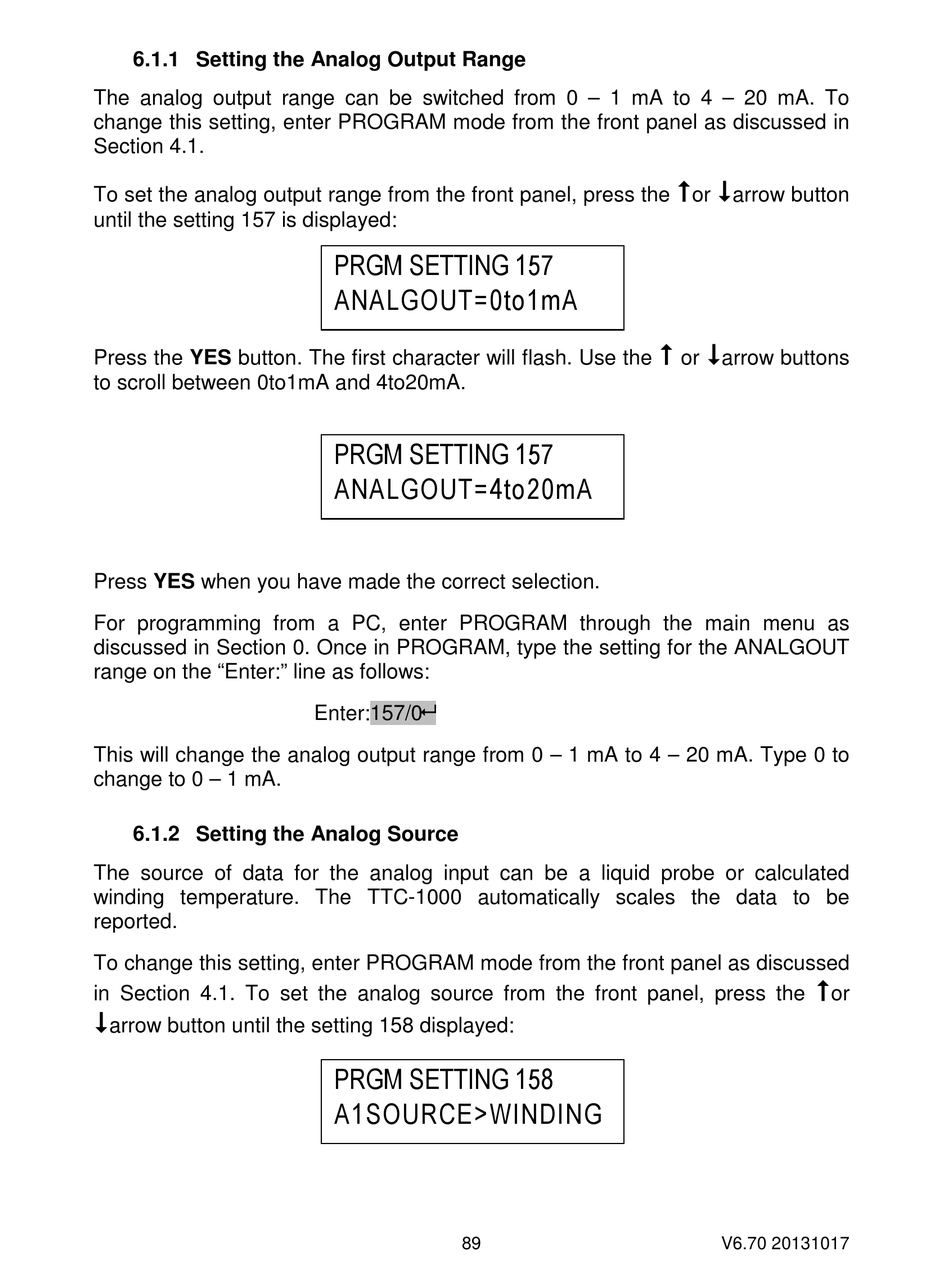

6.1.1 Setting the Analog Output Range

The analog output range can be switched from 0 – 1 mA to 4 – 20 mA. To
change this setting, enter PROGRAM mode from the front panel as discussed in
Section 4.1.
To set the analog output range from the front panel, press the
until the setting 157 is displayed:
Press the YES button. The first character will flash. Use the
to scroll between 0to1mA and 4to20mA.
Press YES when you have made the correct selection.
For programming from a PC, enter PROGRAM through the main menu as
discussed in Section 0. Once in PROGRAM, type the setting for the ANALGOUT
range on the "Enter:" line as follows:
This will change the analog output range from 0 – 1 mA to 4 – 20 mA. Type 0 to
change to 0 – 1 mA.

6.1.2 Setting the Analog Source

The source of data for the analog input can be a liquid probe or calculated
winding temperature. The TTC-1000 automatically scales the data to be
reported.
To change this setting, enter PROGRAM mode from the front panel as discussed
in Section 4.1. To set the analog source from the front panel, press the
arrow button until the setting 158 displayed:
PRGM SETTING 157
ANALGOUT=0to1mA
PRGM SETTING 157
ANALGOUT=4to20mA
Enter:157/0
PRGM SETTING 158
A1SOURCE>WINDING
89
or
arrow button
or
arrow buttons
or
V6.70 20131017
