13 FRONT PANEL SETTINGS WORKSHEETS

The following worksheet is a comprehensive list of all the settings programmable
through the Front Panel interface and possible settings. A blank space is
provided to write-in the desired setting:

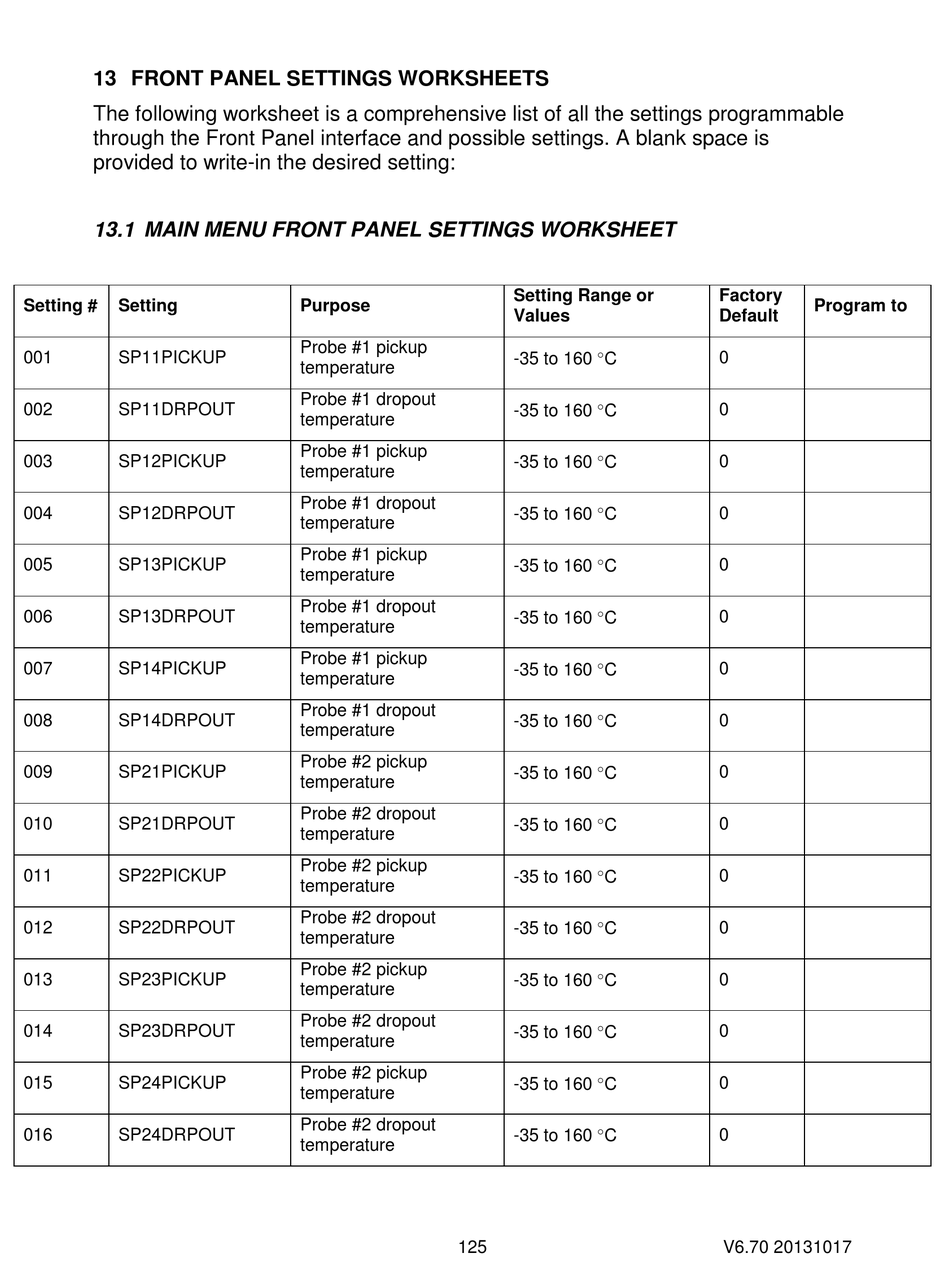

13.1 MAIN MENU FRONT PANEL SETTINGS WORKSHEET

Setting # Setting
001 SP11PICKUP
002 SP11DRPOUT
003 SP12PICKUP
004 SP12DRPOUT
005 SP13PICKUP
006 SP13DRPOUT
007 SP14PICKUP
008 SP14DRPOUT
009 SP21PICKUP
010 SP21DRPOUT
011 SP22PICKUP
012 SP22DRPOUT
013 SP23PICKUP
014 SP23DRPOUT
015 SP24PICKUP
016 SP24DRPOUT
Purpose
Probe #1 pickup
temperature
Probe #1 dropout
temperature
Probe #1 pickup
temperature
Probe #1 dropout
temperature
Probe #1 pickup
temperature
Probe #1 dropout
temperature
Probe #1 pickup
temperature
Probe #1 dropout
temperature
Probe #2 pickup
temperature
Probe #2 dropout
temperature
Probe #2 pickup
temperature
Probe #2 dropout
temperature
Probe #2 pickup
temperature
Probe #2 dropout
temperature
Probe #2 pickup
temperature
Probe #2 dropout
temperature
125
Setting Range or
Values
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
-35 to 160 C
Factory
Program to
Default
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
