3

INSTALLATION and CONNECTIONS

The following section gives information on hookup of power, temperature probes,
split core CT, outputs, optically isolated inputs, analog outputs along with
connections to RS232 and RS485 or fiber optics for DNP3.0 or MODBUS
communications.
There are two mounting configurations available. Panel Mounts are intended for
installation inside the transformer control cabinet and NEMA 4X for mounting
either inside or outside the control cabinet.

3.1 Mounting the NEMA Enclosure

MEMBRANE
BREATHER
7.00
5.00
Oblong
0.312 X 0.500
Lexan
Window
15.25
14.5
5.25
3.00
Ground Stud
1/4-20x1/2
1.73
0.000
3.00 5.50
1.00
0.000
1.38 DIA
1.63 DIA
Liquid-Tight
Probe Cable Strain
Relief

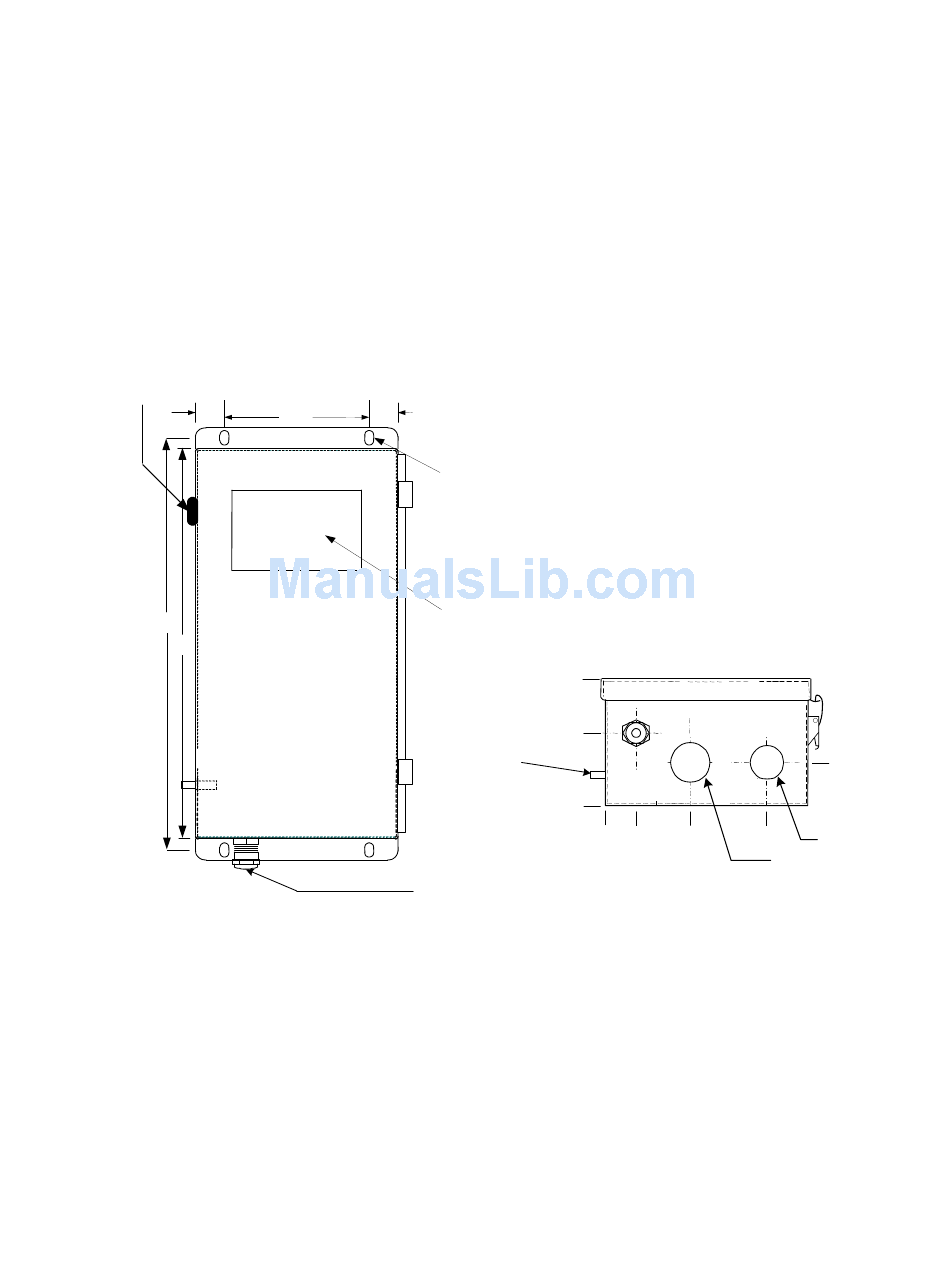

Figure 3.1: NEMA 4X Mounting

11 V6.70 20131017
