7

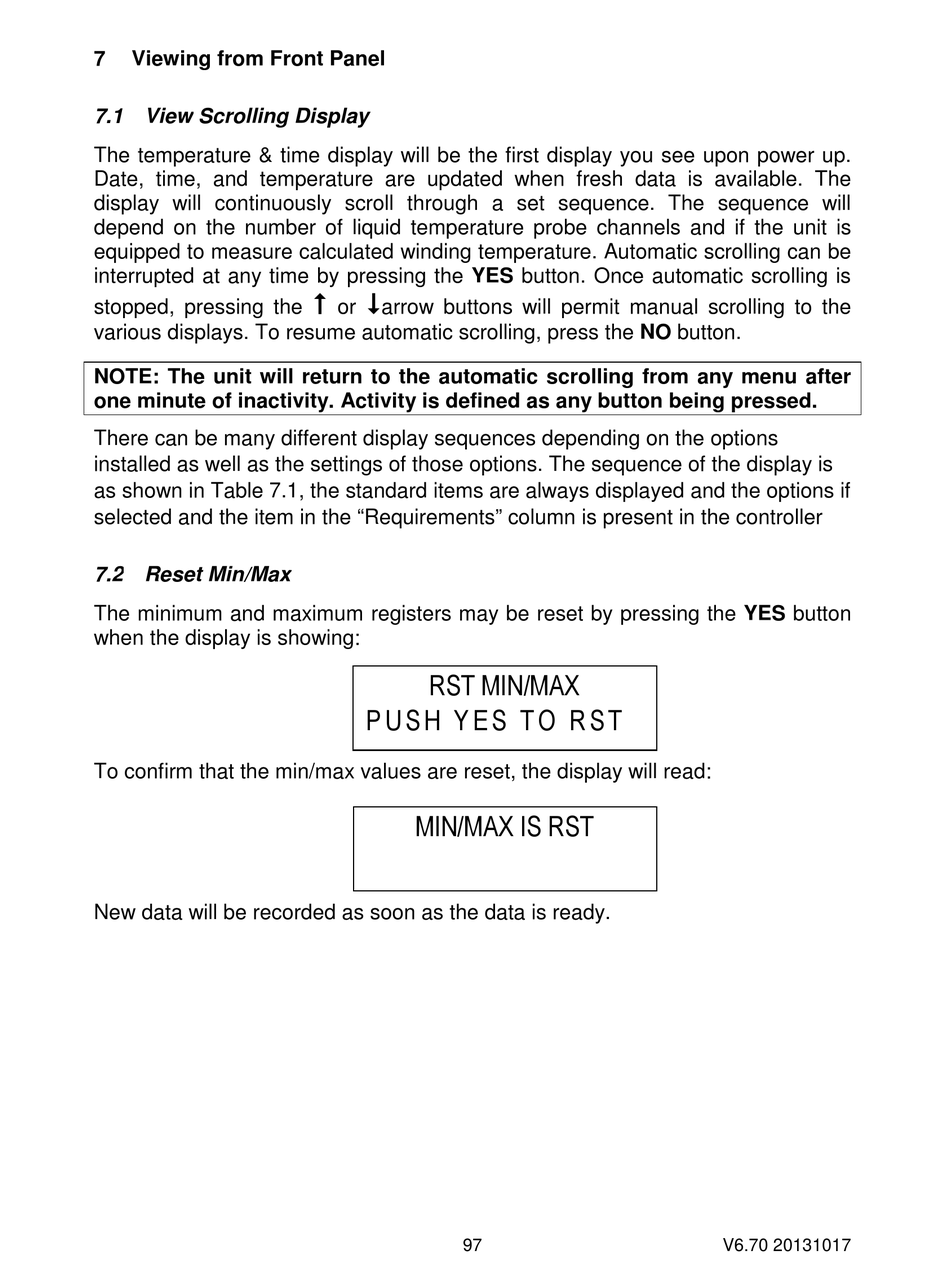

Viewing from Front Panel

7.1 View Scrolling Display

The temperature & time display will be the first display you see upon power up.
Date, time, and temperature are updated when fresh data is available. The
display will continuously scroll through a set sequence. The sequence will
depend on the number of liquid temperature probe channels and if the unit is
equipped to measure calculated winding temperature. Automatic scrolling can be
interrupted at any time by pressing the YES button. Once automatic scrolling is
 
stopped, pressing the or arrow buttons will permit manual scrolling to the
various displays. To resume automatic scrolling, press the NO button.
NOTE: The unit will return to the automatic scrolling from any menu after
one minute of inactivity. Activity is defined as any button being pressed.
There can be many different display sequences depending on the options
installed as well as the settings of those options. The sequence of the display is
as shown in Table 7.1, the standard items are always displayed and the options if
selected and the item in the "Requirements" column is present in the controller

7.2 Reset Min/Max

The minimum and maximum registers may be reset by pressing the YES button
when the display is showing:
RST MIN/MAX
P U S H Y E S T O R S T
To confirm that the min/max values are reset, the display will read:
MIN/MAX IS RST
New data will be recorded as soon as the data is ready.
