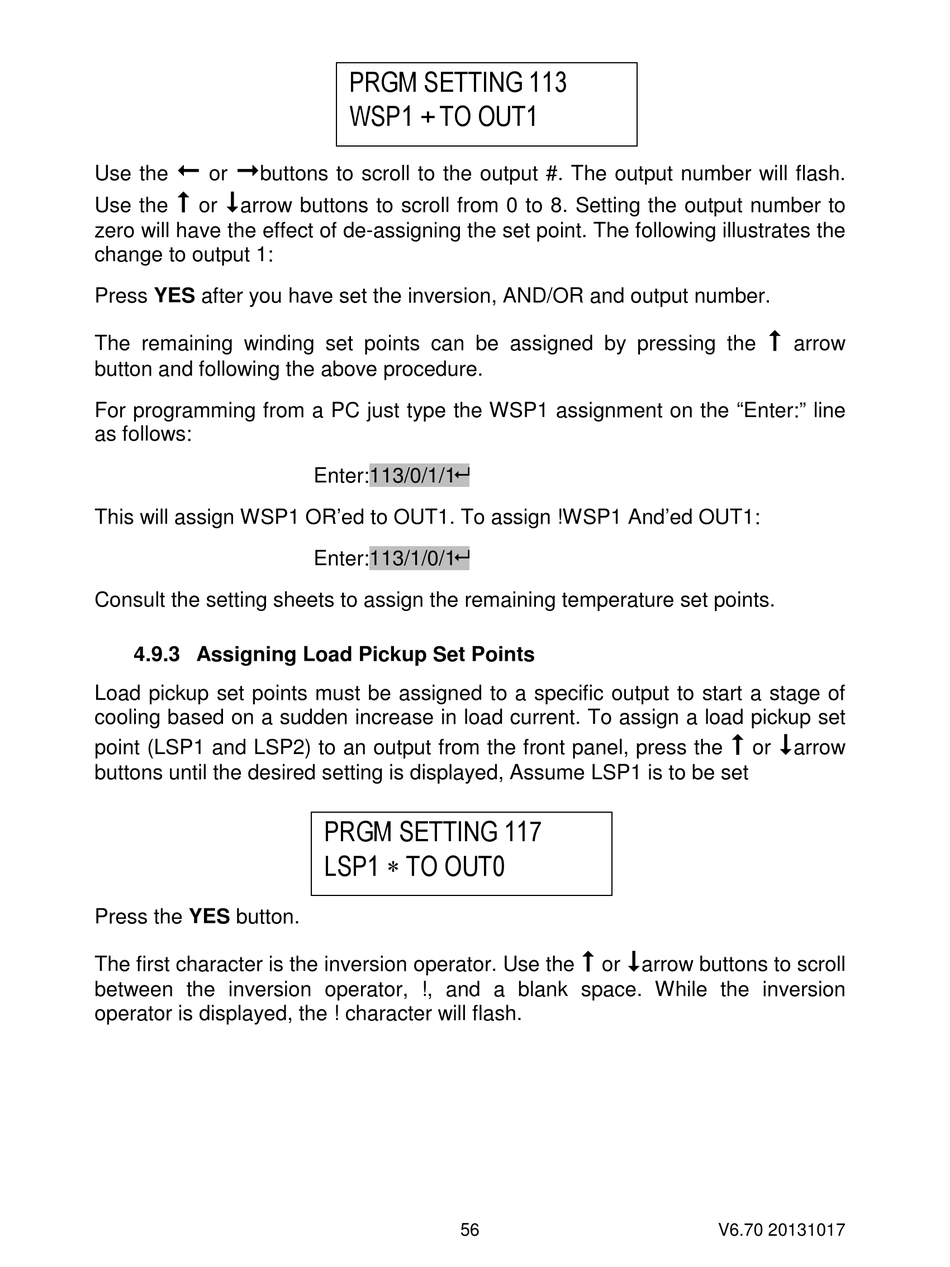

Use the or buttons to scroll to the output #. The output number will flash.
 
Use the or arrow buttons to scroll from 0 to 8. Setting the output number to
zero will have the effect of de-assigning the set point. The following illustrates the
change to output 1:
Press YES after you have set the inversion, AND/OR and output number.
The remaining winding set points can be assigned by pressing the
button and following the above procedure.
For programming from a PC just type the WSP1 assignment on the "Enter:" line
as follows:
This will assign WSP1 OR'ed to OUT1. To assign !WSP1 And'ed OUT1:
Consult the setting sheets to assign the remaining temperature set points.

4.9.3 Assigning Load Pickup Set Points

Load pickup set points must be assigned to a specific output to start a stage of
cooling based on a sudden increase in load current. To assign a load pickup set
point (LSP1 and LSP2) to an output from the front panel, press the
buttons until the desired setting is displayed, Assume LSP1 is to be set
Press the YES button.
The first character is the inversion operator. Use the
between the inversion operator, !, and a blank space. While the inversion
operator is displayed, the ! character will flash.
PRGM SETTING 113
WSP1 + TO OUT1
Enter:113/0/1/1
Enter:113/1/0/1
PRGM SETTING 117
LSP1  TO OUT0
56

or
 
or arrow buttons to scroll
