16 DNP3.0 PROFILE DOCUMENTS and TTC-1000 DATA MAPS

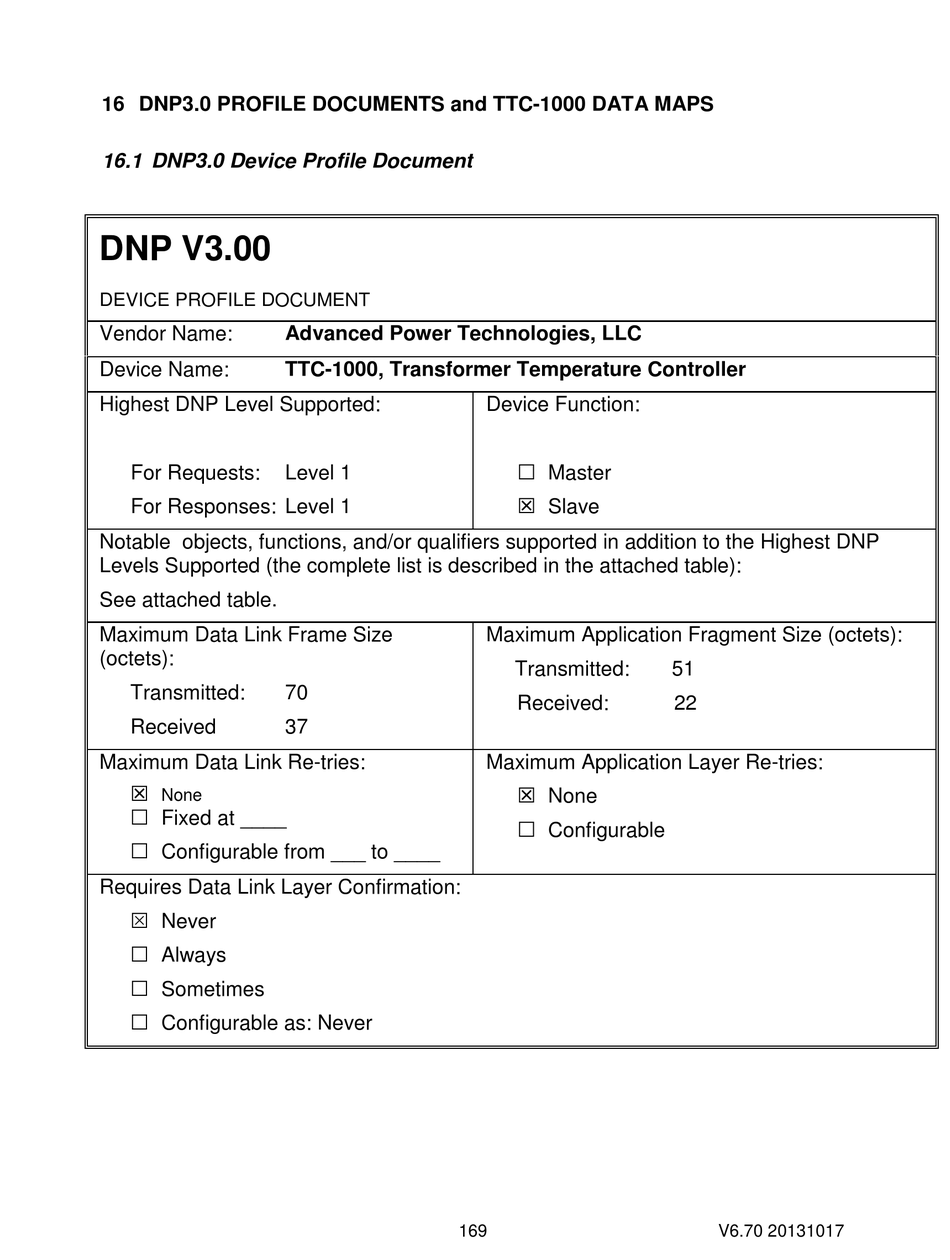

16.1 DNP3.0 Device Profile Document

DNP V3.00
DEVICE PROFILE DOCUMENT
Vendor Name:
Device Name:
Highest DNP Level Supported:
For Requests:
For Responses: Level 1
Notable objects, functions, and/or qualifiers supported in addition to the Highest DNP
Levels Supported (the complete list is described in the attached table):
See attached table.
Maximum Data Link Frame Size
(octets):
Transmitted:
Received
Maximum Data Link Re-tries:

None
 Fixed at ____
 Configurable from ___ to ____
Requires Data Link Layer Confirmation:
 Never
 Always
 Sometimes
 Configurable as: Never
Advanced Power Technologies, LLC
TTC-1000, Transformer Temperature Controller
Level 1
70
37
169
Device Function:
 Master
 Slave
Maximum Application Fragment Size (octets):
Transmitted:
Received:
Maximum Application Layer Re-tries:
 None
 Configurable
51
22
