NOTE:
1. ALL 4 DIGITS OF THE TIME SET POINT PICKUP AND DROP OUT
TIMES MUST BE ENTERED TO SET THE CORRECT TIME.
2. IF USING ALTERNATE, THE STOP TIME OF THE FIRST SET POINT
MUST OVERLAP THE START TIME OF THE SECOND SET POINT.
3. OUT5 AND OUT6 CAN NOT BE ASSIGNED TO ALTERNATE

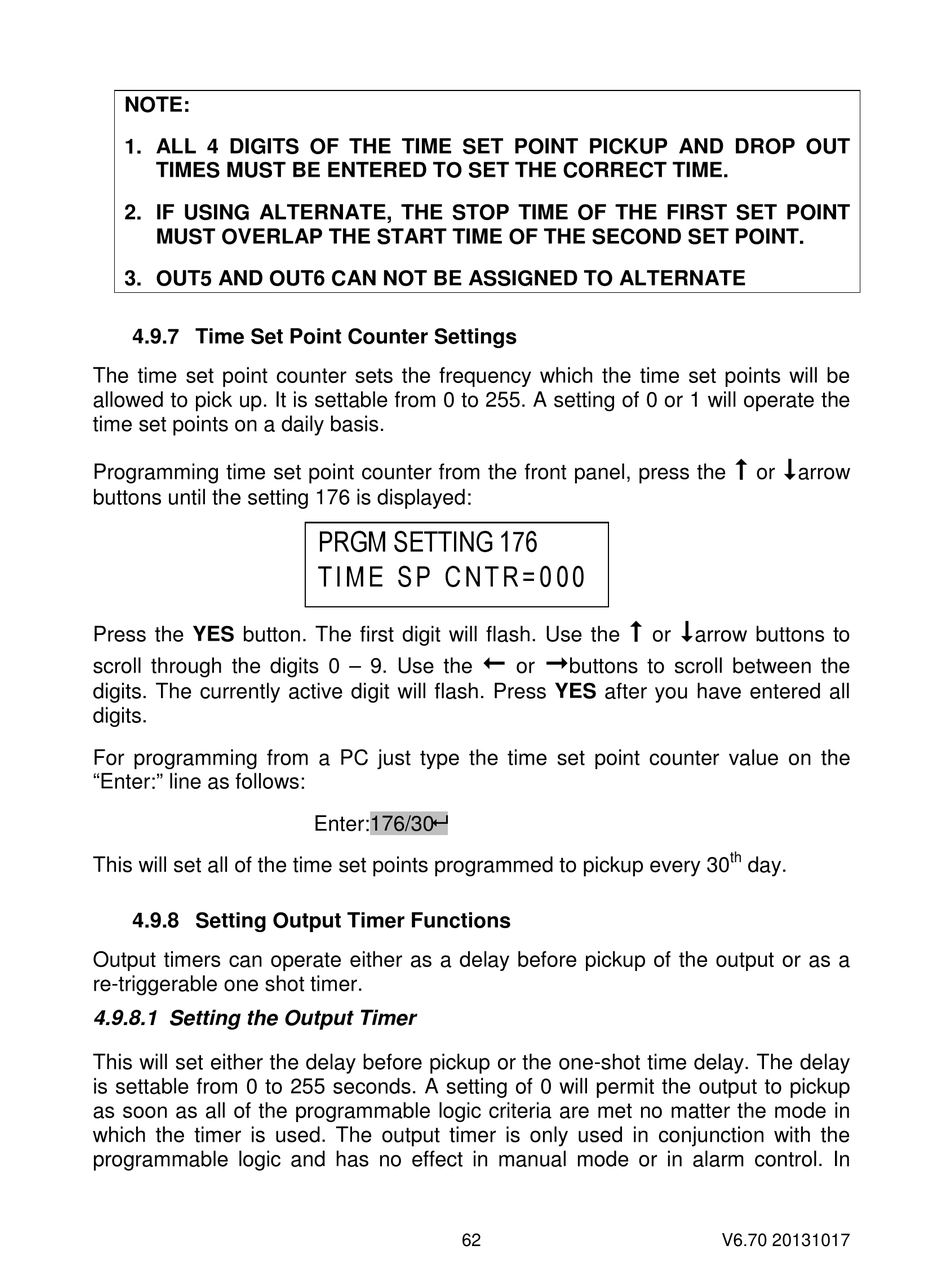

4.9.7 Time Set Point Counter Settings

The time set point counter sets the frequency which the time set points will be
allowed to pick up. It is settable from 0 to 255. A setting of 0 or 1 will operate the
time set points on a daily basis.
Programming time set point counter from the front panel, press the
buttons until the setting 176 is displayed:
Press the YES button. The first digit will flash. Use the
scroll through the digits 0 – 9. Use the
digits. The currently active digit will flash. Press YES after you have entered all
digits.
For programming from a PC just type the time set point counter value on the
"Enter:" line as follows:
This will set all of the time set points programmed to pickup every 30

4.9.8 Setting Output Timer Functions

Output timers can operate either as a delay before pickup of the output or as a
re-triggerable one shot timer.

4.9.8.1 Setting the Output Timer

This will set either the delay before pickup or the one-shot time delay. The delay
is settable from 0 to 255 seconds. A setting of 0 will permit the output to pickup
as soon as all of the programmable logic criteria are met no matter the mode in
which the timer is used. The output timer is only used in conjunction with the
programmable logic and has no effect in manual mode or in alarm control. In
PRGM SETTING 176
T I M E S P C N T R = 0 0 0

Enter:176/30
62
 
or

or buttons to scroll between the
 
or arrow
arrow buttons to
th
day.
