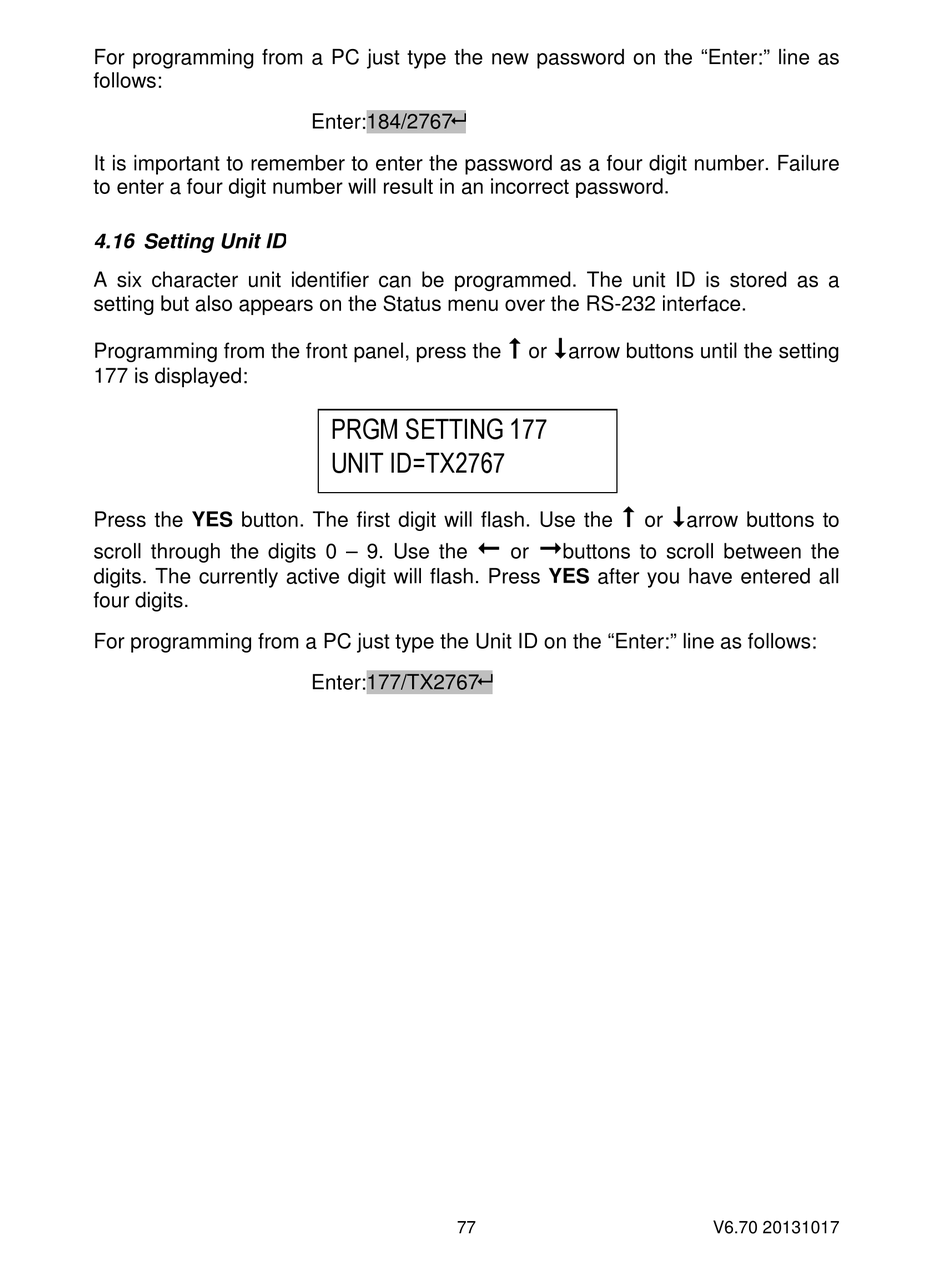

Setting Unit Id - Advanced Power technologies TTC-1000 Instruction & Operation Manual

For programming from a PC just type the new password on the "Enter:" line as
follows:
It is important to remember to enter the password as a four digit number. Failure
to enter a four digit number will result in an incorrect password.

4.16 Setting Unit ID

A six character unit identifier can be programmed. The unit ID is stored as a
setting but also appears on the Status menu over the RS-232 interface.
Programming from the front panel, press the
177 is displayed:
Press the YES button. The first digit will flash. Use the
scroll through the digits 0 – 9. Use the
digits. The currently active digit will flash. Press YES after you have entered all
four digits.
For programming from a PC just type the Unit ID on the "Enter:" line as follows:
Enter:184/2767
PRGM SETTING 177
UNIT ID=TX2767

Enter:177/TX2767
77
 
or arrow buttons until the setting
 
or

or buttons to scroll between the
arrow buttons to
V6.70 20131017
