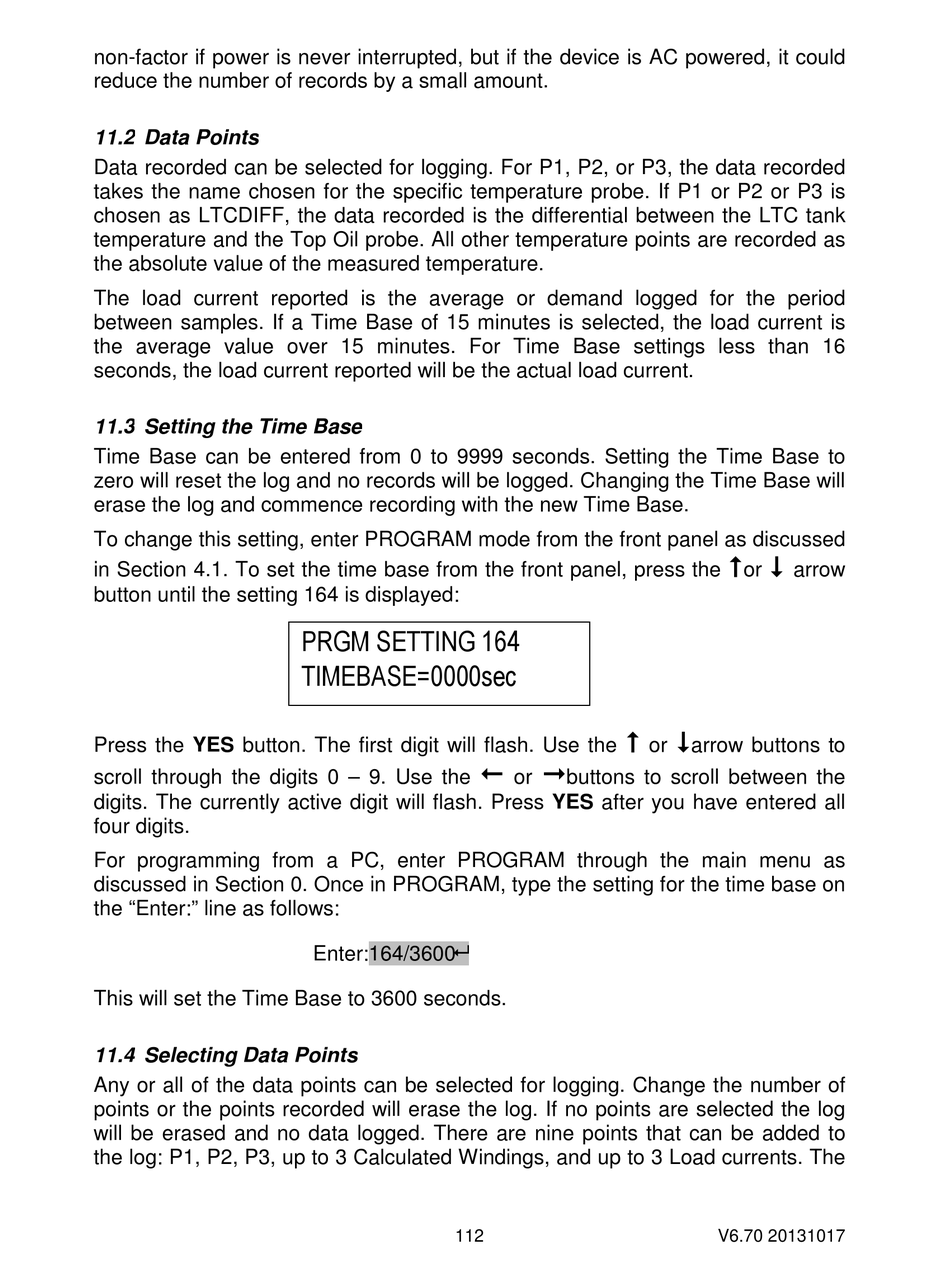

non-factor if power is never interrupted, but if the device is AC powered, it could
reduce the number of records by a small amount.

11.2 Data Points

Data recorded can be selected for logging. For P1, P2, or P3, the data recorded
takes the name chosen for the specific temperature probe. If P1 or P2 or P3 is
chosen as LTCDIFF, the data recorded is the differential between the LTC tank
temperature and the Top Oil probe. All other temperature points are recorded as
the absolute value of the measured temperature.
The load current reported is the average or demand logged for the period
between samples. If a Time Base of 15 minutes is selected, the load current is
the average value over 15 minutes. For Time Base settings less than 16
seconds, the load current reported will be the actual load current.

11.3 Setting the Time Base

Time Base can be entered from 0 to 9999 seconds. Setting the Time Base to
zero will reset the log and no records will be logged. Changing the Time Base will
erase the log and commence recording with the new Time Base.
To change this setting, enter PROGRAM mode from the front panel as discussed
in Section 4.1. To set the time base from the front panel, press the
button until the setting 164 is displayed:
Press the YES button. The first digit will flash. Use the
scroll through the digits 0 – 9. Use the
digits. The currently active digit will flash. Press YES after you have entered all
four digits.
For programming from a PC, enter PROGRAM through the main menu as
discussed in Section 0. Once in PROGRAM, type the setting for the time base on
the "Enter:" line as follows:
This will set the Time Base to 3600 seconds.

11.4 Selecting Data Points

Any or all of the data points can be selected for logging. Change the number of
points or the points recorded will erase the log. If no points are selected the log
will be erased and no data logged. There are nine points that can be added to
the log: P1, P2, P3, up to 3 Calculated Windings, and up to 3 Load currents. The
PRGM SETTING 164
TIMEBASE=0000sec
Enter:164/3600
112

or
 
or buttons to scroll between the
 
or arrow

arrow buttons to
