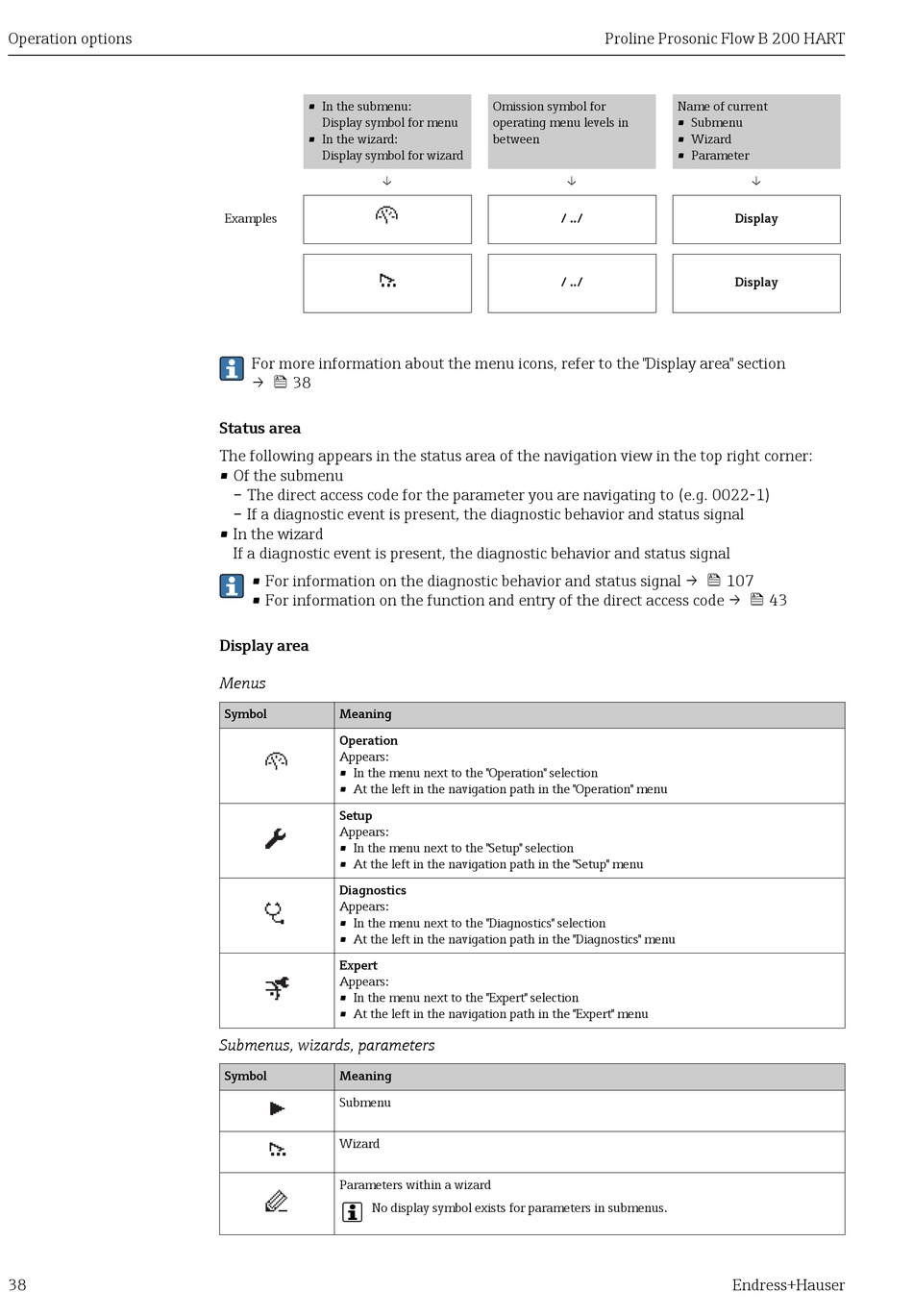

Endress+Hauser Proline Prosonic Flow B 200 Operating Instructions Manual page 38

Operation options
38
• In the submenu:
Display symbol for menu
• In the wizard:
Display symbol for wizard
↓
Examples
For more information about the menu icons, refer to the "Display area" section
→  38
Status area
The following appears in the status area of the navigation view in the top right corner:
• Of the submenu
– The direct access code for the parameter you are navigating to (e.g. 0022-1)
– If a diagnostic event is present, the diagnostic behavior and status signal
• In the wizard
If a diagnostic event is present, the diagnostic behavior and status signal
• For information on the diagnostic behavior and status signal →  107
• For information on the function and entry of the direct access code →  43
Display area
Menus
Symbol Meaning
Operation
Appears:
• In the menu next to the "Operation" selection
• At the left in the navigation path in the "Operation" menu
Setup
Appears:
• In the menu next to the "Setup" selection
• At the left in the navigation path in the "Setup" menu
Diagnostics
Appears:
• In the menu next to the "Diagnostics" selection
• At the left in the navigation path in the "Diagnostics" menu
Expert
Appears:
• In the menu next to the "Expert" selection
• At the left in the navigation path in the "Expert" menu
Submenus, wizards, parameters
Symbol Meaning
Submenu
Wizard
Parameters within a wizard

No display symbol exists for parameters in submenus.
Proline Prosonic Flow B 200 HART
Omission symbol for
operating menu levels in
between
↓
/ ../
/ ../
Name of current
• Submenu
• Wizard
• Parameter
↓
Display
Display
