Operation options
36

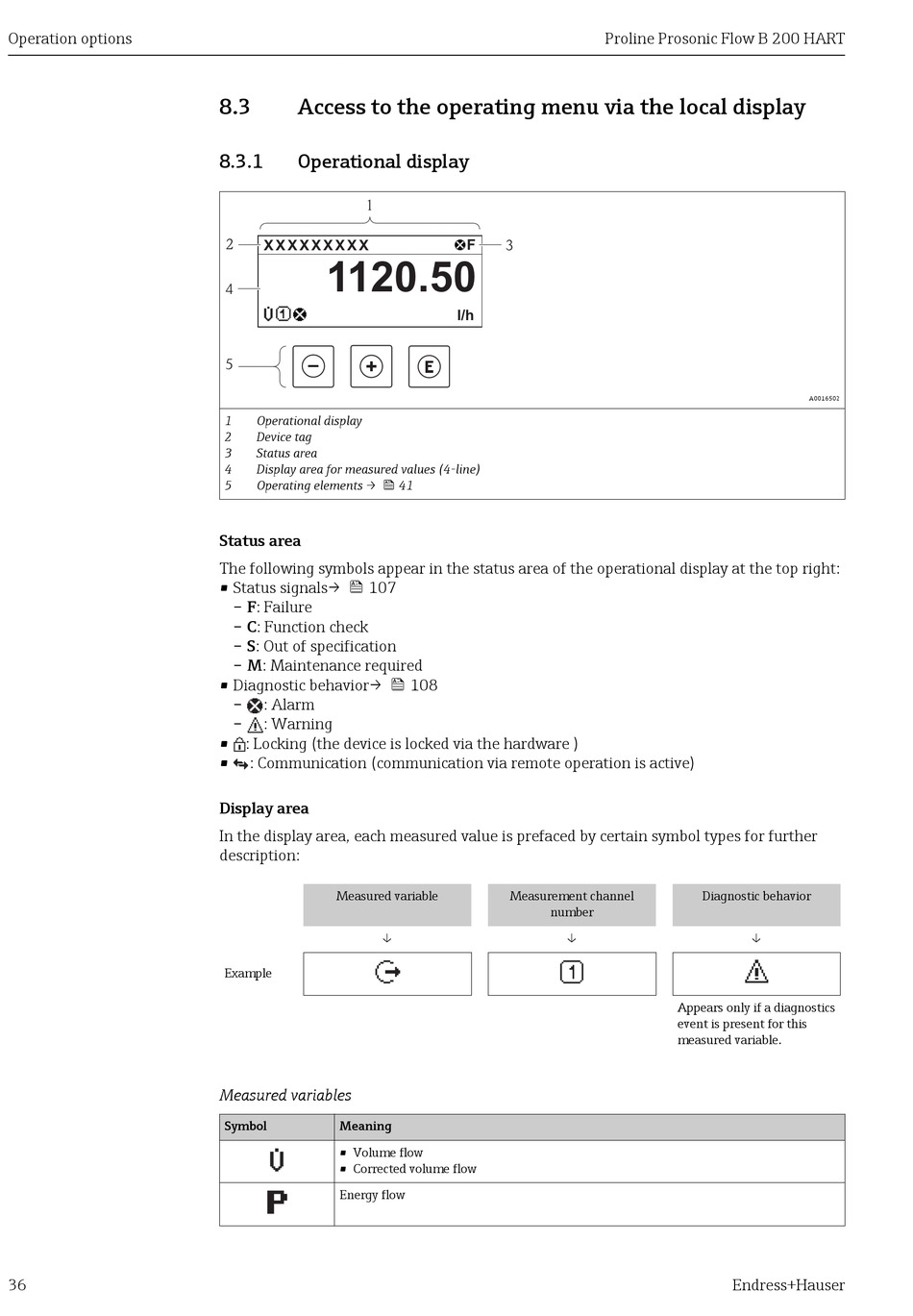

8.3 Access to the operating menu via the local display
8.3.1 Operational display
1
2
X X X X X X X X X
1120.50
4
5
1 Operational display
2 Device tag
3 Status area
4 Display area for measured values (4-line)
5 Operating elements →  41
Status area
The following symbols appear in the status area of the operational display at the top right:
• Status signals→  107
– F: Failure
– C: Function check
– S: Out of specification
– M: Maintenance required
• Diagnostic behavior→  108
– : Alarm
– : Warning
• : Locking (the device is locked via the hardware )
• : Communication (communication via remote operation is active)
Display area
In the display area, each measured value is prefaced by certain symbol types for further
description:
Measured variable
↓
Example
Measured variables
Symbol Meaning
• Volume flow
• Corrected volume flow
Energy flow
Proline Prosonic Flow B 200 HART
F
3
l/h
Measurement channel
number
↓
A0016502
Diagnostic behavior
↓
Appears only if a diagnostics
event is present for this
measured variable.
