4.9

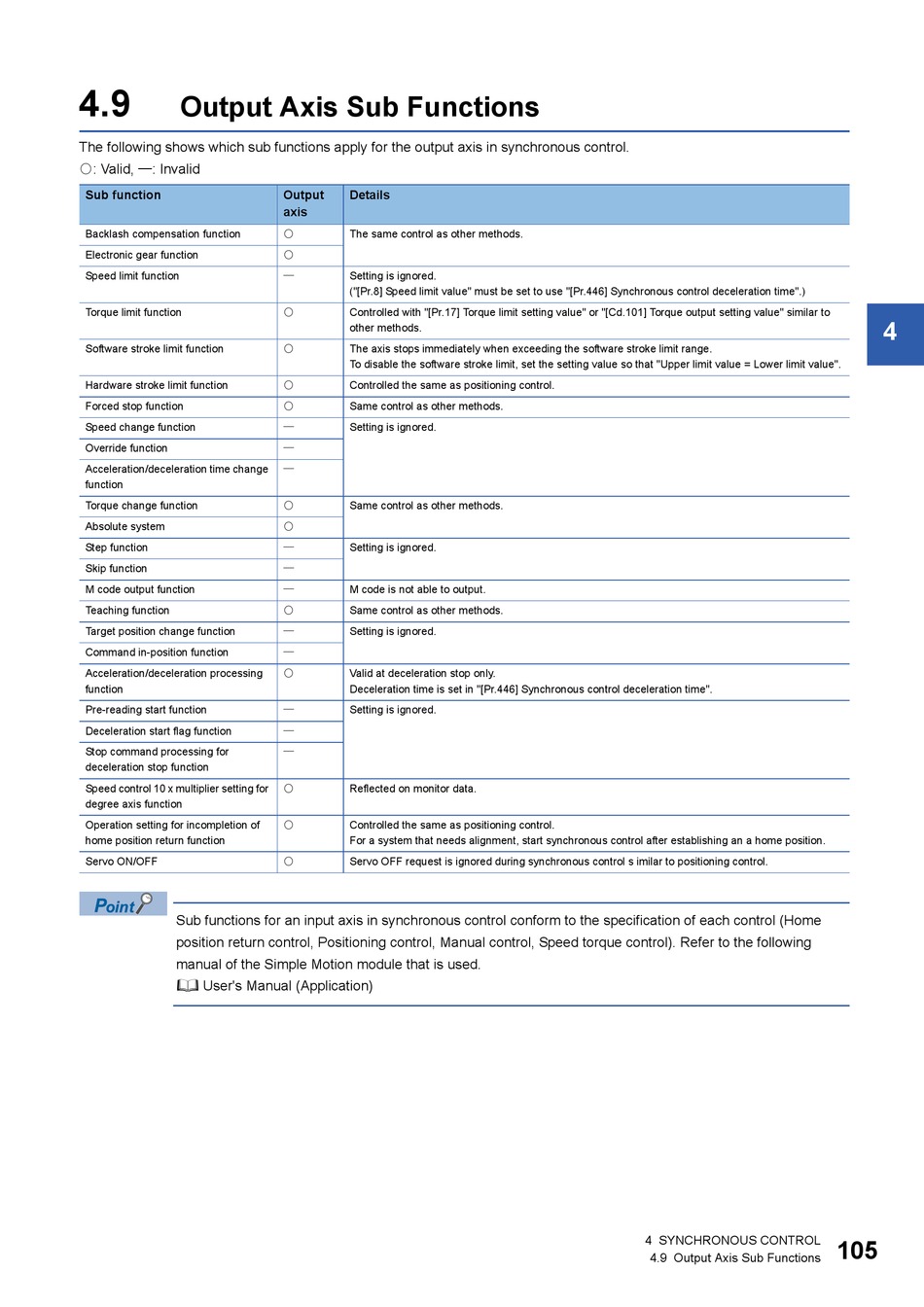

Output Axis Sub Functions

The following shows which sub functions apply for the output axis in synchronous control.
: Valid, : Invalid
Sub function
Backlash compensation function
Electronic gear function
Speed limit function
Torque limit function
Software stroke limit function
Hardware stroke limit function
Forced stop function
Speed change function
Override function
Acceleration/deceleration time change
function
Torque change function
Absolute system
Step function
Skip function
M code output function
Teaching function
Target position change function
Command in-position function
Acceleration/deceleration processing
function
Pre-reading start function
Deceleration start flag function
Stop command processing for
deceleration stop function
Speed control 10 x multiplier setting for
degree axis function
Operation setting for incompletion of
home position return function
Servo ON/OFF
Sub functions for an input axis in synchronous control conform to the specification of each control (Home
position return control, Positioning control, Manual control, Speed torque control). Refer to the following
manual of the Simple Motion module that is used.
 User's Manual (Application)
Output
Details
axis
The same control as other methods.
Setting is ignored.
("[Pr.8] Speed limit value" must be set to use "[Pr.446] Synchronous control deceleration time".)
Controlled with "[Pr.17] Torque limit setting value" or "[Cd.101] Torque output setting value" similar to
other methods.
The axis stops immediately when exceeding the software stroke limit range.
To disable the software stroke limit, set the setting value so that "Upper limit value = Lower limit value".
Controlled the same as positioning control.
Same control as other methods.
Setting is ignored.
Same control as other methods.
Setting is ignored.
M code is not able to output.
Same control as other methods.
Setting is ignored.
Valid at deceleration stop only.
Deceleration time is set in "[Pr.446] Synchronous control deceleration time".
Setting is ignored.
Reflected on monitor data.
Controlled the same as positioning control.
For a system that needs alignment, start synchronous control after establishing an a home position.
Servo OFF request is ignored during synchronous control s imilar to positioning control.
4 SYNCHRONOUS CONTROL
4.9 Output Axis Sub Functions
4
105
