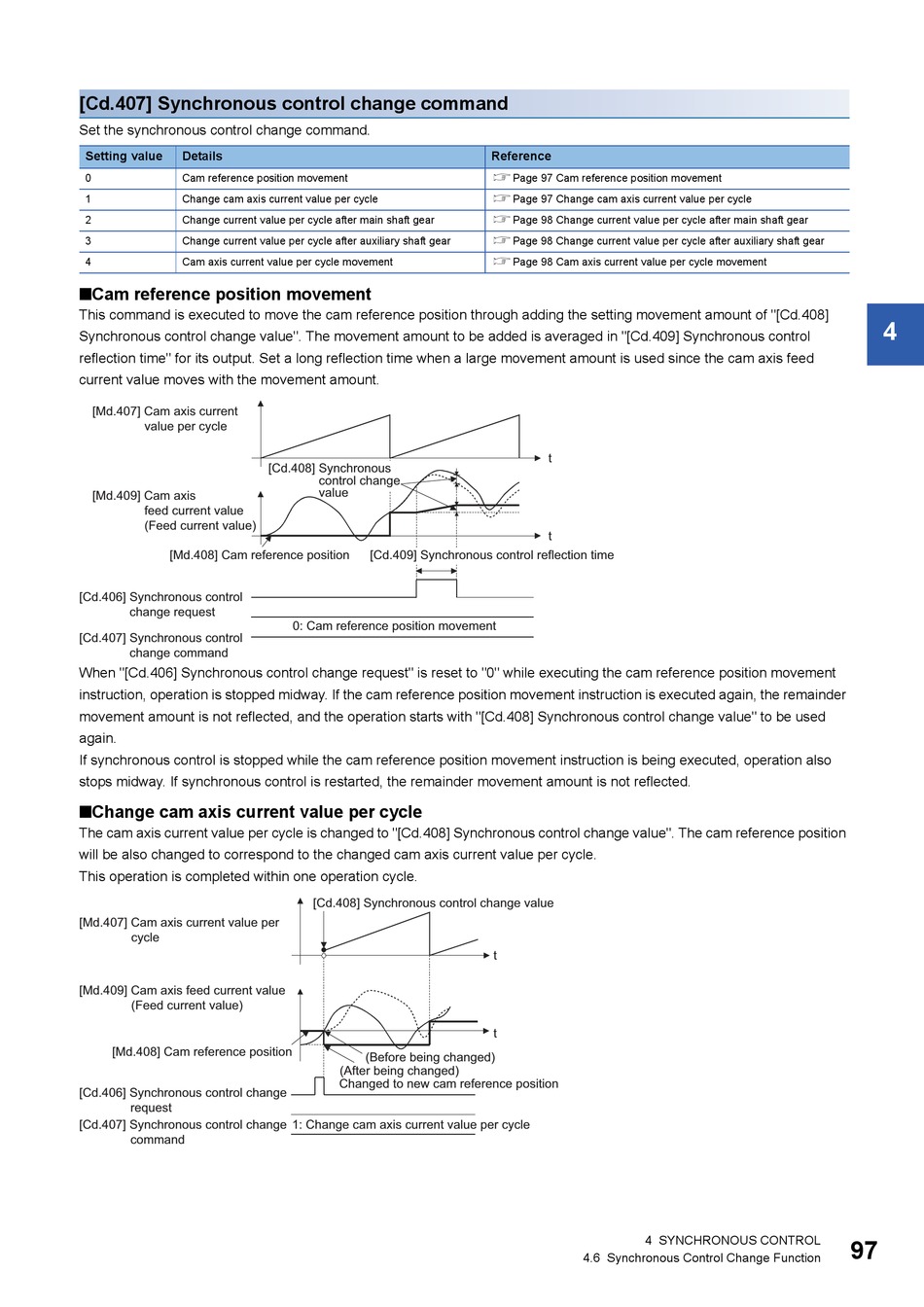

[Cd.407] Synchronous control change command
Set the synchronous control change command.
Setting value
Details
0
Cam reference position movement
1
Change cam axis current value per cycle
2
Change current value per cycle after main shaft gear
3
Change current value per cycle after auxiliary shaft gear
4
Cam axis current value per cycle movement
■Cam reference position movement
This command is executed to move the cam reference position through adding the setting movement amount of "[Cd.408]
Synchronous control change value". The movement amount to be added is averaged in "[Cd.409] Synchronous control
reflection time" for its output. Set a long reflection time when a large movement amount is used since the cam axis feed
current value moves with the movement amount.
[Md.407] Cam axis current
value per cycle
[Md.409] Cam axis
feed current value
(Feed current value)
[Md.408] Cam reference position
[Cd.406] Synchronous control
change request
[Cd.407] Synchronous control
change command
When "[Cd.406] Synchronous control change request" is reset to "0" while executing the cam reference position movement
instruction, operation is stopped midway. If the cam reference position movement instruction is executed again, the remainder
movement amount is not reflected, and the operation starts with "[Cd.408] Synchronous control change value" to be used
again.
If synchronous control is stopped while the cam reference position movement instruction is being executed, operation also
stops midway. If synchronous control is restarted, the remainder movement amount is not reflected.
■Change cam axis current value per cycle
The cam axis current value per cycle is changed to "[Cd.408] Synchronous control change value". The cam reference position
will be also changed to correspond to the changed cam axis current value per cycle.
This operation is completed within one operation cycle.
[Md.407] Cam axis current value per
cycle
[Md.409] Cam axis feed current value
(Feed current value)
[Md.408] Cam reference position
[Cd.406] Synchronous control change
request
[Cd.407] Synchronous control change
command
[Cd.408] Synchronous
control change
value
[Cd.409] Synchronous control reflection time
0: Cam reference position movement
[Cd.408] Synchronous control change value
(Before being changed)
(After being changed)
Changed to new cam reference position
1: Change cam axis current value per cycle
Reference
Page 97 Cam reference position movement
Page 97 Change cam axis current value per cycle
Page 98 Change current value per cycle after main shaft gear
Page 98 Change current value per cycle after auxiliary shaft gear
Page 98 Cam axis current value per cycle movement
t
t
t
t
4 SYNCHRONOUS CONTROL
4.6 Synchronous Control Change Function
4
97
