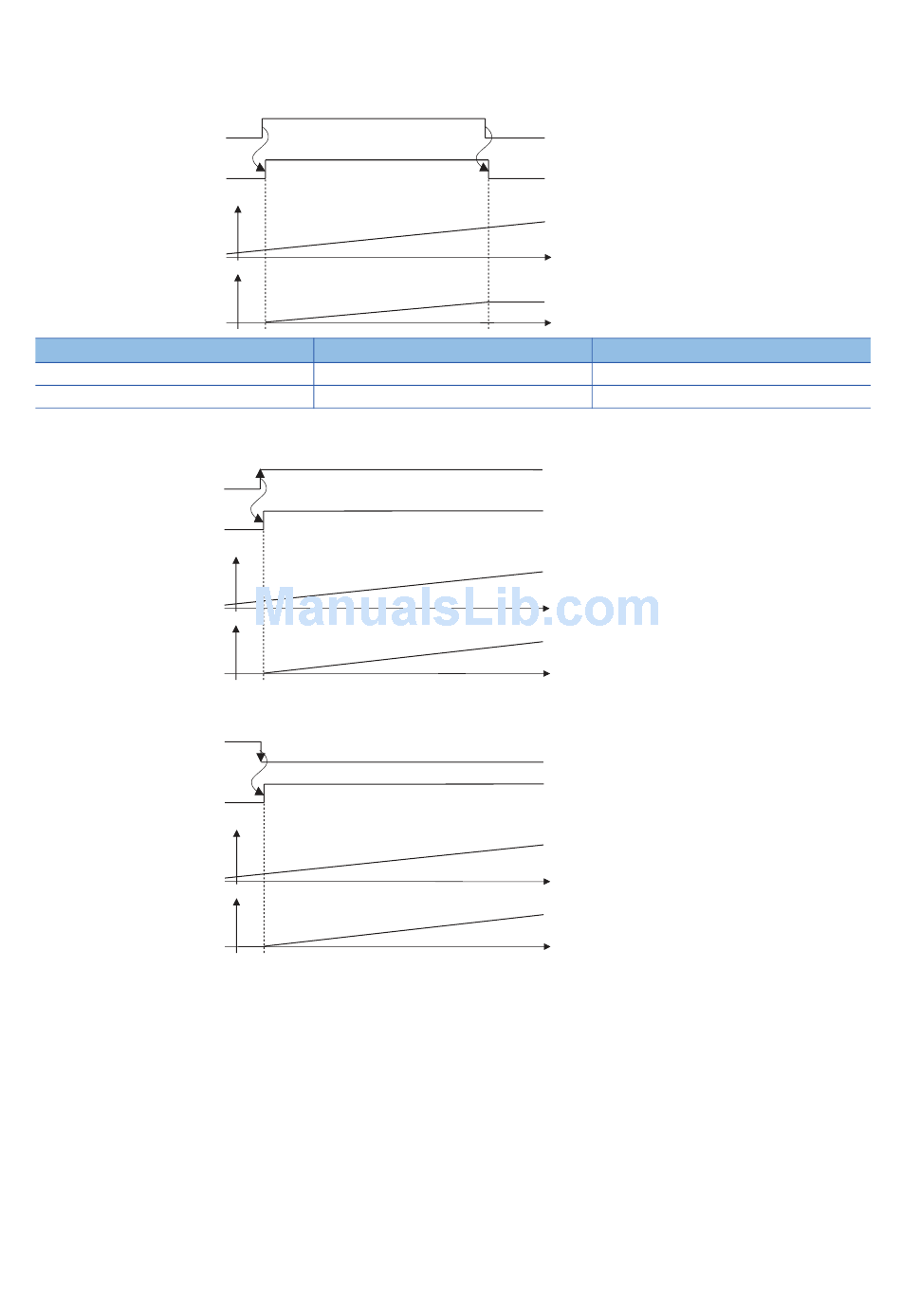

■Clutch command ON/OFF
The clutch is turned ON/OFF by the operation of clutch command ON/OFF.
(Setting in the OFF control mode are not applicable in the clutch command ON/OFF mode.)
Clutch command
Clutch ON/OFF status
Current value before clutch
Movement amount after clutch
Item
Clutch command
Clutch ON/OFF status
■Clutch command leading edge
The clutch is turned ON when the clutch command passes the leading edge (from OFF to ON).
Clutch command
Clutch ON/OFF status
Current value before clutch
Movement amount after clutch
■Clutch command trailing edge
The clutch is turned ON when the clutch command passes the trailing edge (from ON to OFF).
Clutch command
Clutch ON/OFF status
Current value before clutch
Movement amount after clutch
4 SYNCHRONOUS CONTROL
4.3 Clutch
Main shaft clutch
[Cd.400] Main shaft clutch command
[Md.420] Main shaft clutch ON/OFF status
t
t
Auxiliary shaft clutch
[Cd.403] Auxiliary shaft clutch command
[Md.423] Auxiliary shaft clutch ON/OFF status
t
t
t
t
