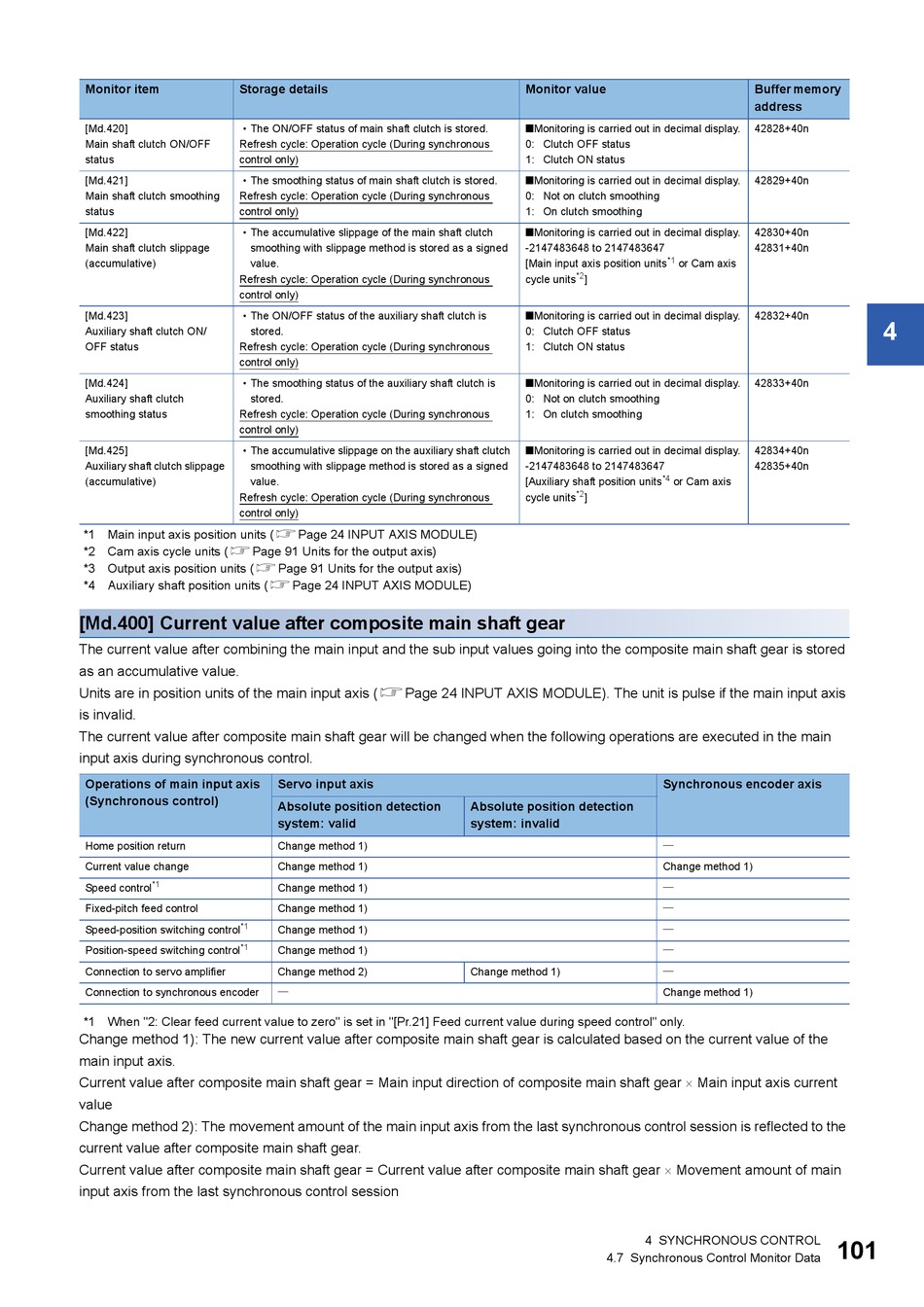

Monitor item
Storage details
[Md.420]
• The ON/OFF status of main shaft clutch is stored.
Main shaft clutch ON/OFF
Refresh cycle: Operation cycle (During synchronous
status
control only)
[Md.421]
• The smoothing status of main shaft clutch is stored.
Main shaft clutch smoothing
Refresh cycle: Operation cycle (During synchronous
status
control only)
[Md.422]
• The accumulative slippage of the main shaft clutch
Main shaft clutch slippage
smoothing with slippage method is stored as a signed
(accumulative)
value.
Refresh cycle: Operation cycle (During synchronous
control only)
[Md.423]
• The ON/OFF status of the auxiliary shaft clutch is
Auxiliary shaft clutch ON/
stored.
OFF status
Refresh cycle: Operation cycle (During synchronous
control only)
[Md.424]
• The smoothing status of the auxiliary shaft clutch is
Auxiliary shaft clutch
stored.
smoothing status
Refresh cycle: Operation cycle (During synchronous
control only)
[Md.425]
• The accumulative slippage on the auxiliary shaft clutch
Auxiliary shaft clutch slippage
smoothing with slippage method is stored as a signed
(accumulative)
value.
Refresh cycle: Operation cycle (During synchronous
control only)
*1 Main input axis position units (Page 24 INPUT AXIS MODULE)
*2 Cam axis cycle units (Page 91 Units for the output axis)
*3 Output axis position units (Page 91 Units for the output axis)
*4 Auxiliary shaft position units (Page 24 INPUT AXIS MODULE)
[Md.400] Current value after composite main shaft gear
The current value after combining the main input and the sub input values going into the composite main shaft gear is stored
as an accumulative value.
Units are in position units of the main input axis (Page 24 INPUT AXIS MODULE). The unit is pulse if the main input axis
is invalid.
The current value after composite main shaft gear will be changed when the following operations are executed in the main
input axis during synchronous control.
Operations of main input axis
(Synchronous control)
Home position return
Current value change
*1
Speed control
Fixed-pitch feed control
*1
Speed-position switching control
*1
Position-speed switching control
Connection to servo amplifier
Connection to synchronous encoder
*1 When "2: Clear feed current value to zero" is set in "[Pr.21] Feed current value during speed control" only.
Change method 1): The new current value after composite main shaft gear is calculated based on the current value of the
main input axis.
Current value after composite main shaft gear = Main input direction of composite main shaft gear  Main input axis current
value
Change method 2): The movement amount of the main input axis from the last synchronous control session is reflected to the
current value after composite main shaft gear.
Current value after composite main shaft gear = Current value after composite main shaft gear  Movement amount of main
input axis from the last synchronous control session
Servo input axis
Absolute position detection
system: valid
Change method 1)
Change method 1)
Change method 1)
Change method 1)
Change method 1)
Change method 1)
Change method 2)
Monitor value
■Monitoring is carried out in decimal display.
0: Clutch OFF status
1: Clutch ON status
■Monitoring is carried out in decimal display.
0: Not on clutch smoothing
1: On clutch smoothing
■Monitoring is carried out in decimal display.
-2147483648 to 2147483647
[Main input axis position units
*2
cycle units
]
■Monitoring is carried out in decimal display.
0: Clutch OFF status
1: Clutch ON status
■Monitoring is carried out in decimal display.
0: Not on clutch smoothing
1: On clutch smoothing
■Monitoring is carried out in decimal display.
-2147483648 to 2147483647
[Auxiliary shaft position units
*2
cycle units
]
Absolute position detection
system: invalid
Change method 1)
4.7 Synchronous Control Monitor Data
Buffer memory
address
42828+40n
42829+40n
42830+40n
42831+40n
*1
or Cam axis
42832+40n
42833+40n
42834+40n
42835+40n
*4
or Cam axis
Synchronous encoder axis
Change method 1)
Change method 1)
4 SYNCHRONOUS CONTROL
4
101
