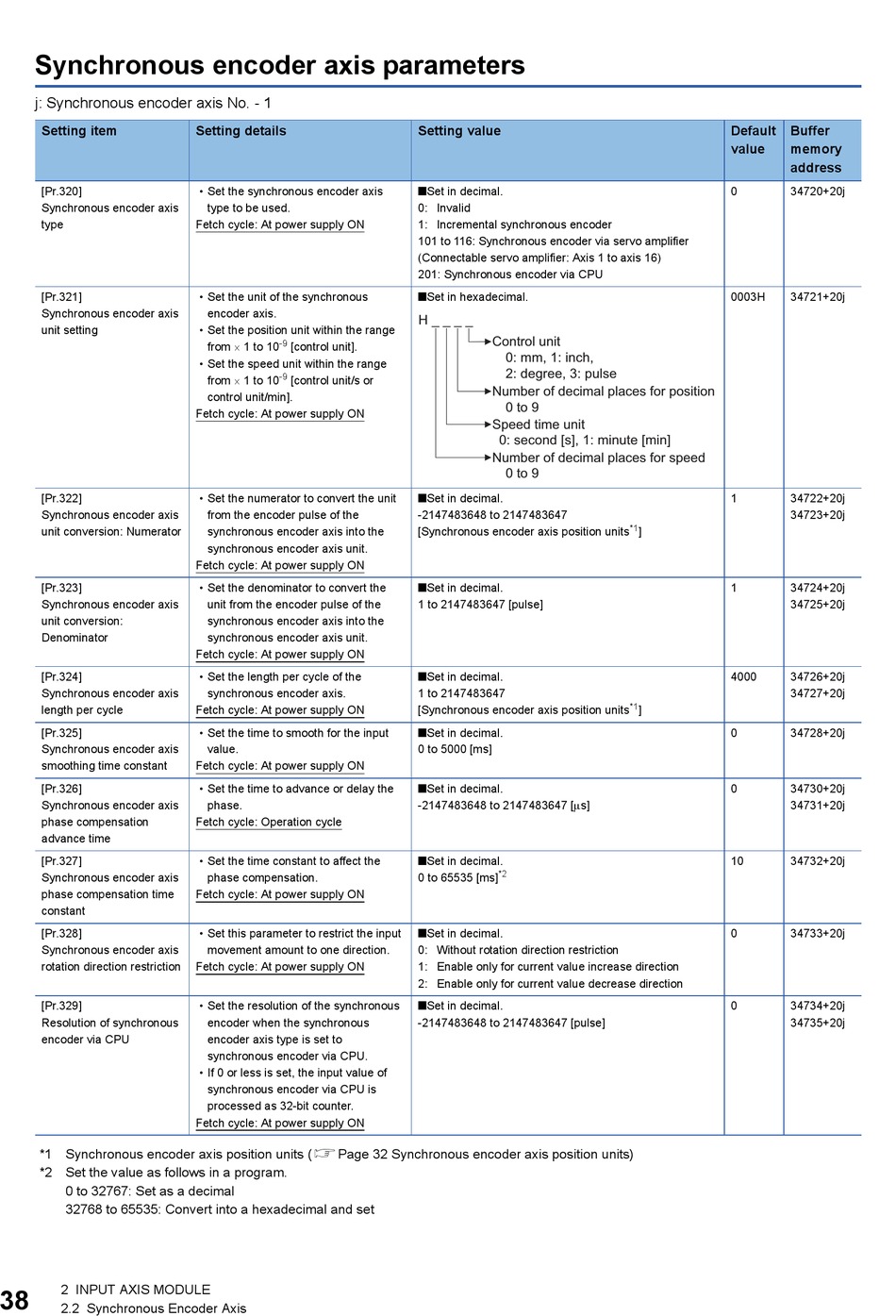

Synchronous encoder axis parameters

j: Synchronous encoder axis No. - 1
Setting item
[Pr.320]
Synchronous encoder axis
type
[Pr.321]
Synchronous encoder axis
unit setting
[Pr.322]
Synchronous encoder axis
unit conversion: Numerator
[Pr.323]
Synchronous encoder axis
unit conversion:
Denominator
[Pr.324]
Synchronous encoder axis
length per cycle
[Pr.325]
Synchronous encoder axis
smoothing time constant
[Pr.326]
Synchronous encoder axis
phase compensation
advance time
[Pr.327]
Synchronous encoder axis
phase compensation time
constant
[Pr.328]
Synchronous encoder axis
rotation direction restriction
[Pr.329]
Resolution of synchronous
encoder via CPU
*1 Synchronous encoder axis position units (Page 32 Synchronous encoder axis position units)
*2 Set the value as follows in a program.
0 to 32767: Set as a decimal
32768 to 65535: Convert into a hexadecimal and set
2 INPUT AXIS MODULE
38
2.2 Synchronous Encoder Axis
Setting details
• Set the synchronous encoder axis
type to be used.
Fetch cycle: At power supply ON
• Set the unit of the synchronous
encoder axis.
• Set the position unit within the range
from  1 to 10 -9
[control unit].
• Set the speed unit within the range
from  1 to 10 -9
[control unit/s or
control unit/min].
Fetch cycle: At power supply ON
• Set the numerator to convert the unit
from the encoder pulse of the
synchronous encoder axis into the
synchronous encoder axis unit.
Fetch cycle: At power supply ON
• Set the denominator to convert the
unit from the encoder pulse of the
synchronous encoder axis into the
synchronous encoder axis unit.
Fetch cycle: At power supply ON
• Set the length per cycle of the
synchronous encoder axis.
Fetch cycle: At power supply ON
• Set the time to smooth for the input
value.
Fetch cycle: At power supply ON
• Set the time to advance or delay the
phase.
Fetch cycle: Operation cycle
• Set the time constant to affect the
phase compensation.
Fetch cycle: At power supply ON
• Set this parameter to restrict the input
movement amount to one direction.
Fetch cycle: At power supply ON
• Set the resolution of the synchronous
encoder when the synchronous
encoder axis type is set to
synchronous encoder via CPU.
• If 0 or less is set, the input value of
synchronous encoder via CPU is
processed as 32-bit counter.
Fetch cycle: At power supply ON
Setting value
■Set in decimal.
0: Invalid
1: Incremental synchronous encoder
101 to 116: Synchronous encoder via servo amplifier
(Connectable servo amplifier: Axis 1 to axis 16)
201: Synchronous encoder via CPU
■Set in hexadecimal.
H _ _ _ _
Control unit
0: mm, 1: inch,
2: degree, 3: pulse
Number of decimal places for position
0 to 9
Speed time unit
0: second [s], 1: minute [min]
Number of decimal places for speed
0 to 9
■Set in decimal.
-2147483648 to 2147483647
[Synchronous encoder axis position units
■Set in decimal.
1 to 2147483647 [pulse]
■Set in decimal.
1 to 2147483647
[Synchronous encoder axis position units
■Set in decimal.
0 to 5000 [ms]
■Set in decimal.
-2147483648 to 2147483647 [s]
■Set in decimal.
*2
0 to 65535 [ms]
■Set in decimal.
0: Without rotation direction restriction
1: Enable only for current value increase direction
2: Enable only for current value decrease direction
■Set in decimal.
-2147483648 to 2147483647 [pulse]
Default Buffer
value memory
address
0 34720+20j
0003H 34721+20j
1 34722+20j
34723+20j
*1
]
1 34724+20j
34725+20j
4000 34726+20j
34727+20j
*1
]
0 34728+20j
0 34730+20j
34731+20j
10 34732+20j
0 34733+20j
0 34734+20j
34735+20j
