Electrical Installation
4 4

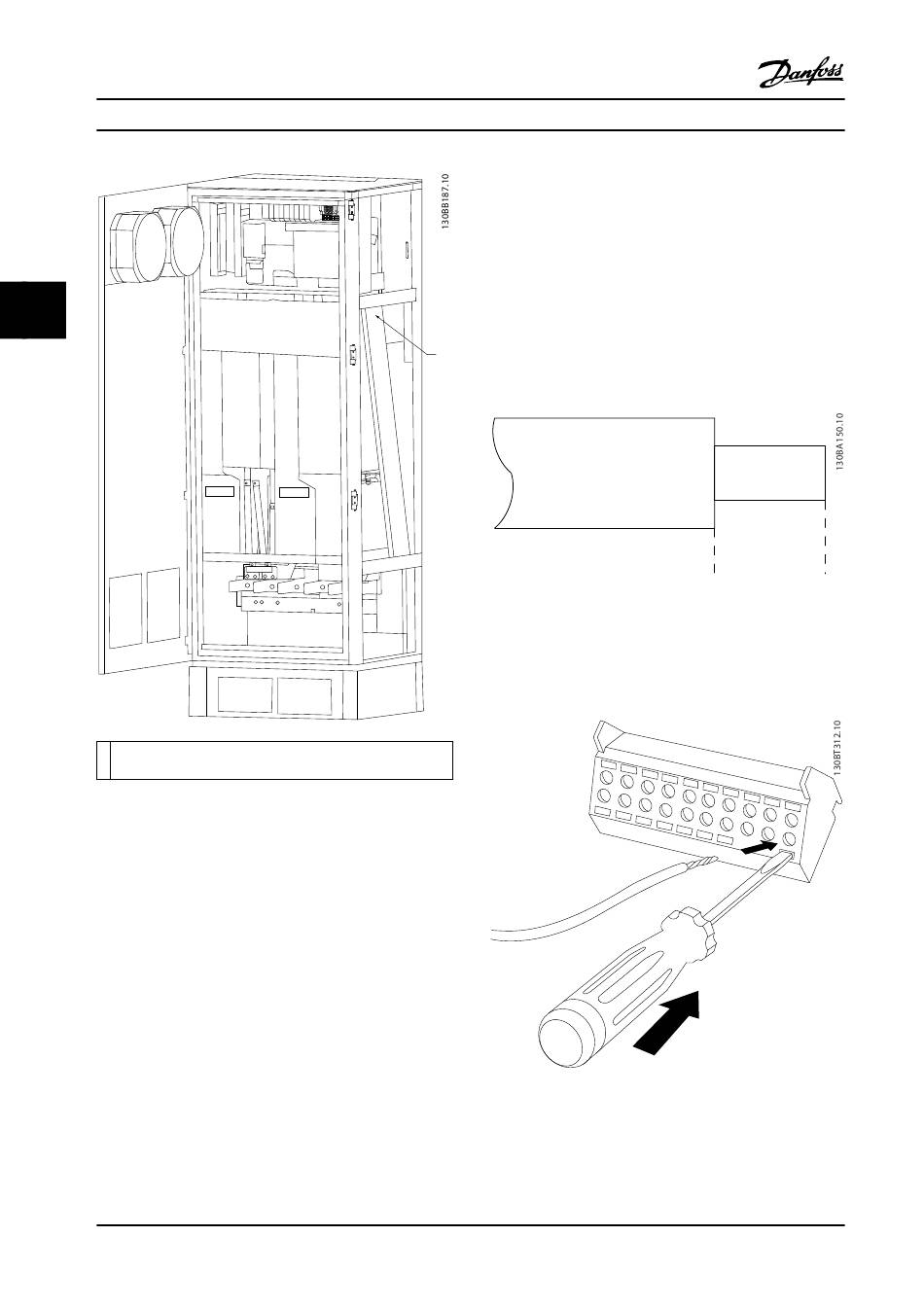

1 Routing path for the control card wiring, inside the adjustable
frequency drive enclosure.
Figure 4.7 Control Card Wiring Path for Frame Size F18
42
®
VLT AQUA Drive FC 202 Low Harmonic Drive

4.8.2 Access to Control Terminals

All terminals to the control cables are located beneath the
LCP (both filter and adjustable frequency drive LCP). They
are accessed by opening the door of the unit.
4.8.3 Electrical Installation, Control
To connect the cable to the terminal:
1
1.
Figure 4.8 Length to Strip the Insulation
2.
3.
Figure 4.9 Inserting the Cable in the Terminal Block
4.
Danfoss A/S © 10/2015 All rights reserved.
Terminals
Strip insulation by about 0.35–0.4 in [9–10 mm]
Electrical installationControl terminals
Insert a screwdriver (max. 0.016x0.1 in [0.4x2.5
mm]) in the square hole.
Insert the cable in the adjacent circular hole.
Remove the screwdriver. The cable is now
mounted in the terminal.
9 - 10 mm
(0.37 in)
MG21B322
