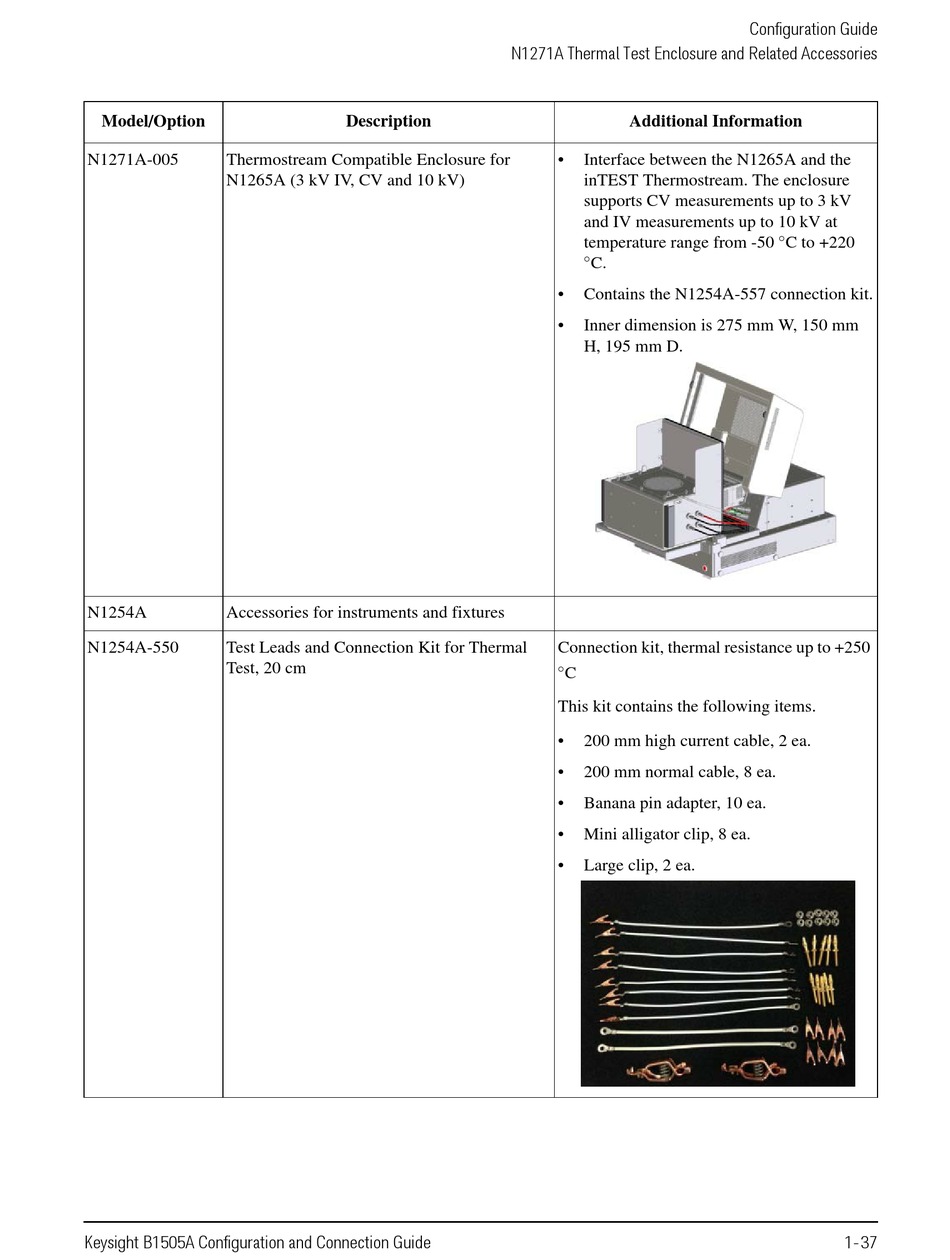

Keysight Technologies B1505A Configuration Manual page 45

Model/Option
N1271A-005 Thermostream Compatible Enclosure for
N1265A (3 kV IV, CV and 10 kV)
N1254A Accessories for instruments and fixtures
N1254A-550 Test Leads and Connection Kit for Thermal
Test, 20 cm
Keysight B1505A Configuration and Connection Guide
N1271A Thermal Test Enclosure and Related Accessories
Description Additional Information
• Interface between the N1265A and the
inTEST Thermostream. The enclosure
supports CV measurements up to 3 kV
and IV measurements up to 10 kV at
temperature range from -50 C to +220
C.
• Contains the N1254A-557 connection kit.
• Inner dimension is 275 mm W, 150 mm
H, 195 mm D.
Connection kit, thermal resistance up to +250
C
This kit contains the following items.
• 200 mm high current cable, 2 ea.
• 200 mm normal cable, 8 ea.
• Banana pin adapter, 10 ea.
• Mini alligator clip, 8 ea.
• Large clip, 2 ea.
Configuration Guide
1-37
