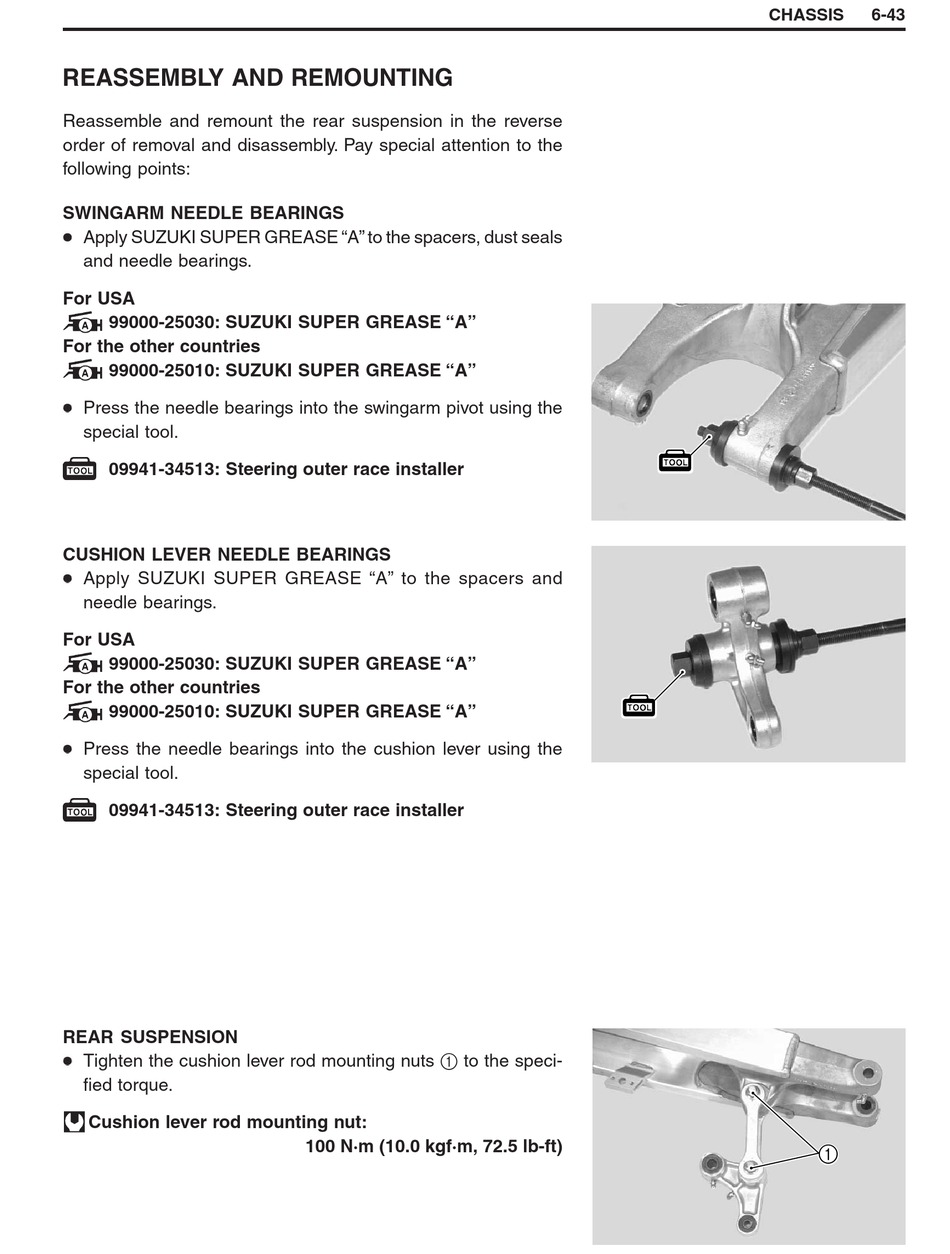

REASSEMBLY AND REMOUNTING

Reassemble and remount the rear suspension in the reverse
order of removal and disassembly. Pay special attention to the
following points:
SWINGARM NEEDLE BEARINGS
Apply SUZUKI SUPER GREASE "A" to the spacers, dust seals
and needle bearings.
For USA
99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
99000-25010: SUZUKI SUPER GREASE "A"
Press the needle bearings into the swingarm pivot using the
special tool.
09941-34513: Steering outer race installer
CUSHION LEVER NEEDLE BEARINGS
Apply SUZUKI SUPER GREASE "A" to the spacers and
needle bearings.
For USA
99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
99000-25010: SUZUKI SUPER GREASE "A"
Press the needle bearings into the cushion lever using the
special tool.
09941-34513: Steering outer race installer
REAR SUSPENSION
Tighten the cushion lever rod mounting nuts 1 to the speci-
fied torque.
Cushion lever rod mounting nut:
100 N·m (10.0 kgf·m, 72.5 lb-ft)
