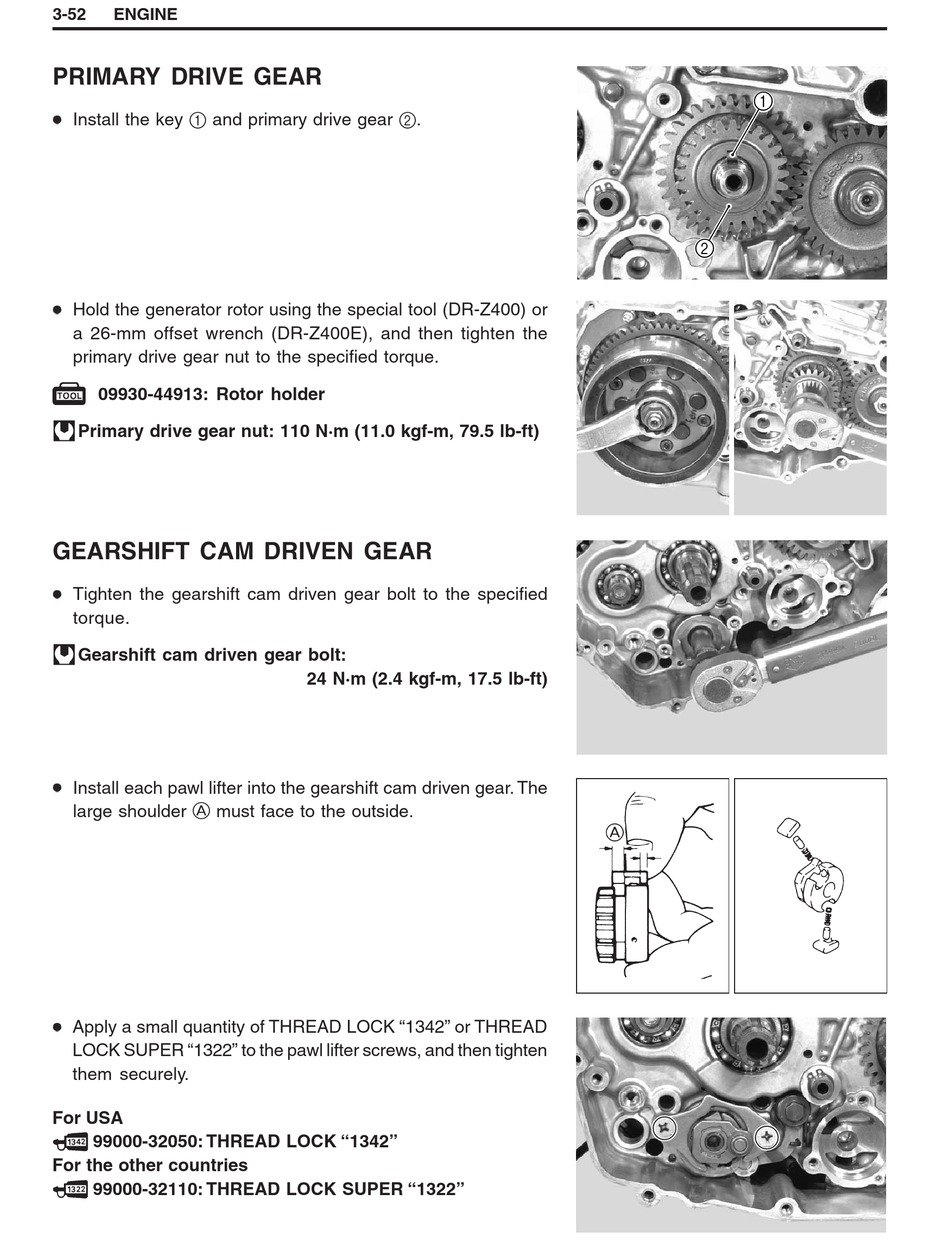

3-52 ENGINE

PRIMARY DRIVE GEAR

Install the key 1 and primary drive gear 2.
Hold the generator rotor using the special tool (DR-Z400) or
a 26-mm offset wrench (DR-Z400E), and then tighten the
primary drive gear nut to the specified torque.
09930-44913: Rotor holder
Primary drive gear nut: 110 N·m (11.0 kgf-m, 79.5 lb-ft)

GEARSHIFT CAM DRIVEN GEAR

Tighten the gearshift cam driven gear bolt to the specified
torque.
Gearshift cam driven gear bolt:
Install each pawl lifter into the gearshift cam driven gear. The
large shoulder A must face to the outside.
Apply a small quantity of THREAD LOCK "1342" or THREAD
LOCK SUPER "1322" to the pawl lifter screws, and then tighten
them securely.
For USA
99000-32050: THREAD LOCK "1342"
For the other countries
99000-32110: THREAD LOCK SUPER "1322"
24 N·m (2.4 kgf-m, 17.5 lb-ft)
1
2
