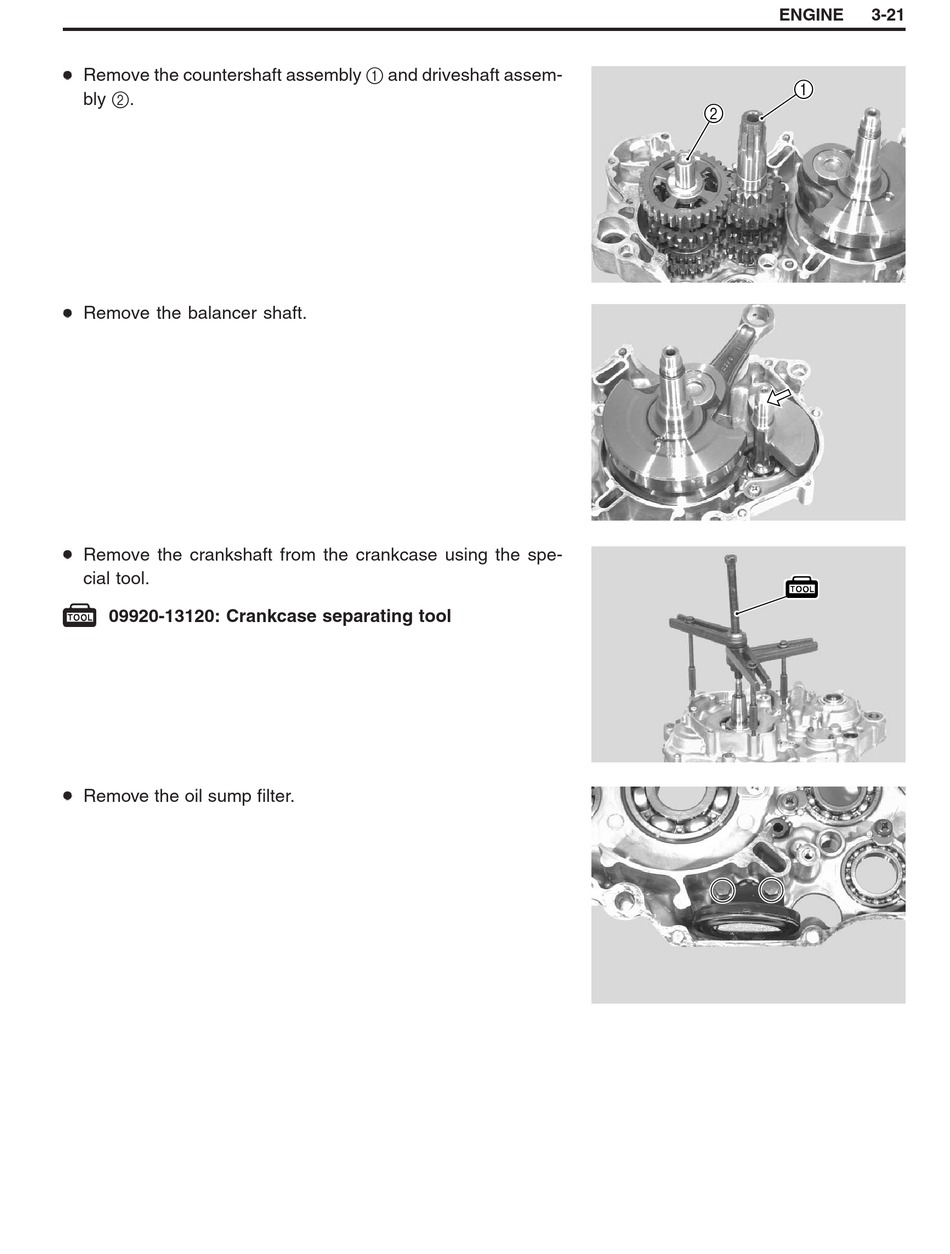

ENGINE
3-21
Remove the countershaft assembly 1 and driveshaft assem-
1
bly 2.
2
Remove the balancer shaft.
Remove the crankshaft from the crankcase using the spe-
cial tool.
09920-13120: Crankcase separating tool
Remove the oil sump filter.
