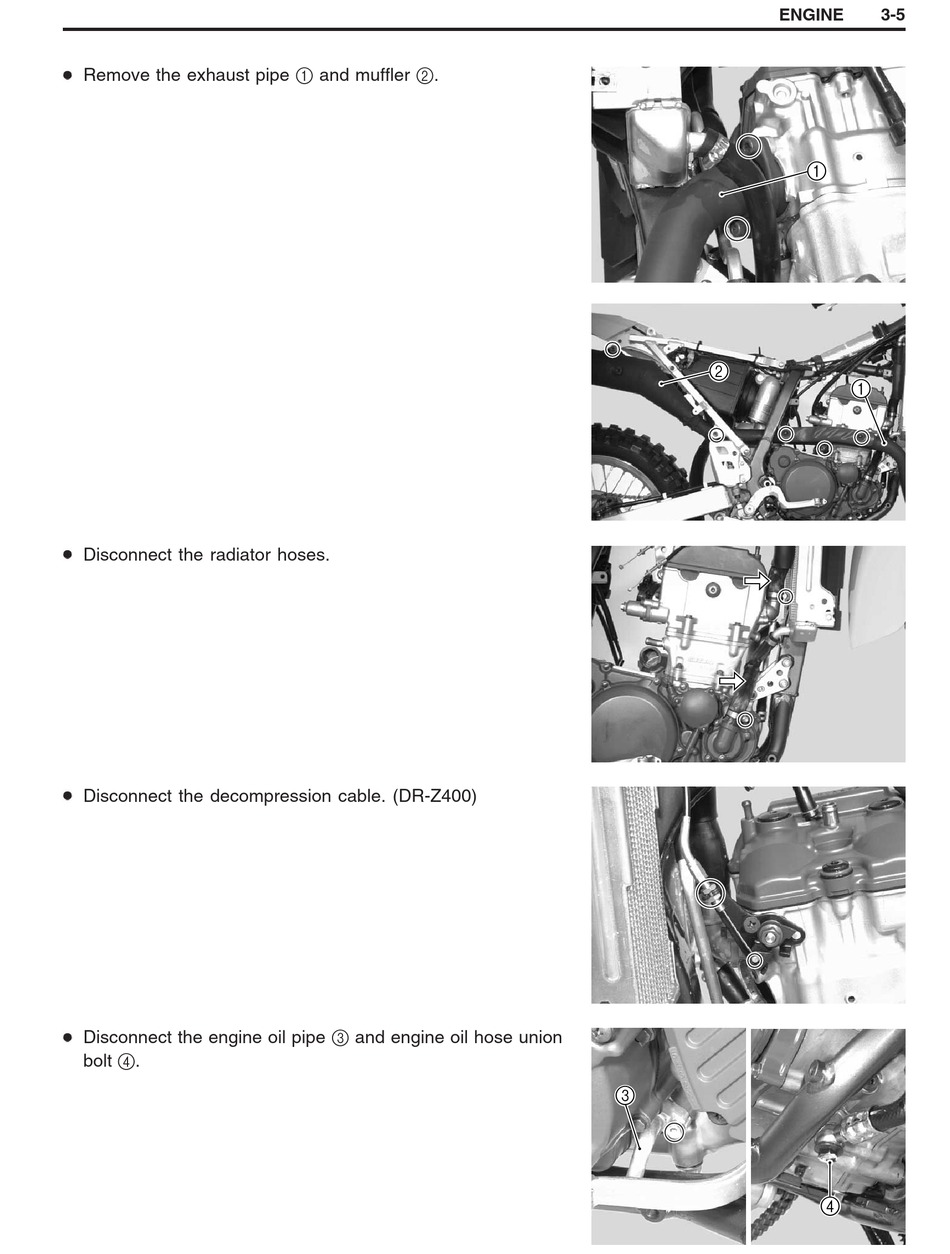

ENGINE
3-5
Remove the exhaust pipe 1 and muffler 2.
1
2
1
Disconnect the radiator hoses.
Disconnect the decompression cable. (DR-Z400)
Disconnect the engine oil pipe 3 and engine oil hose union
bolt 4.
3
3 4
