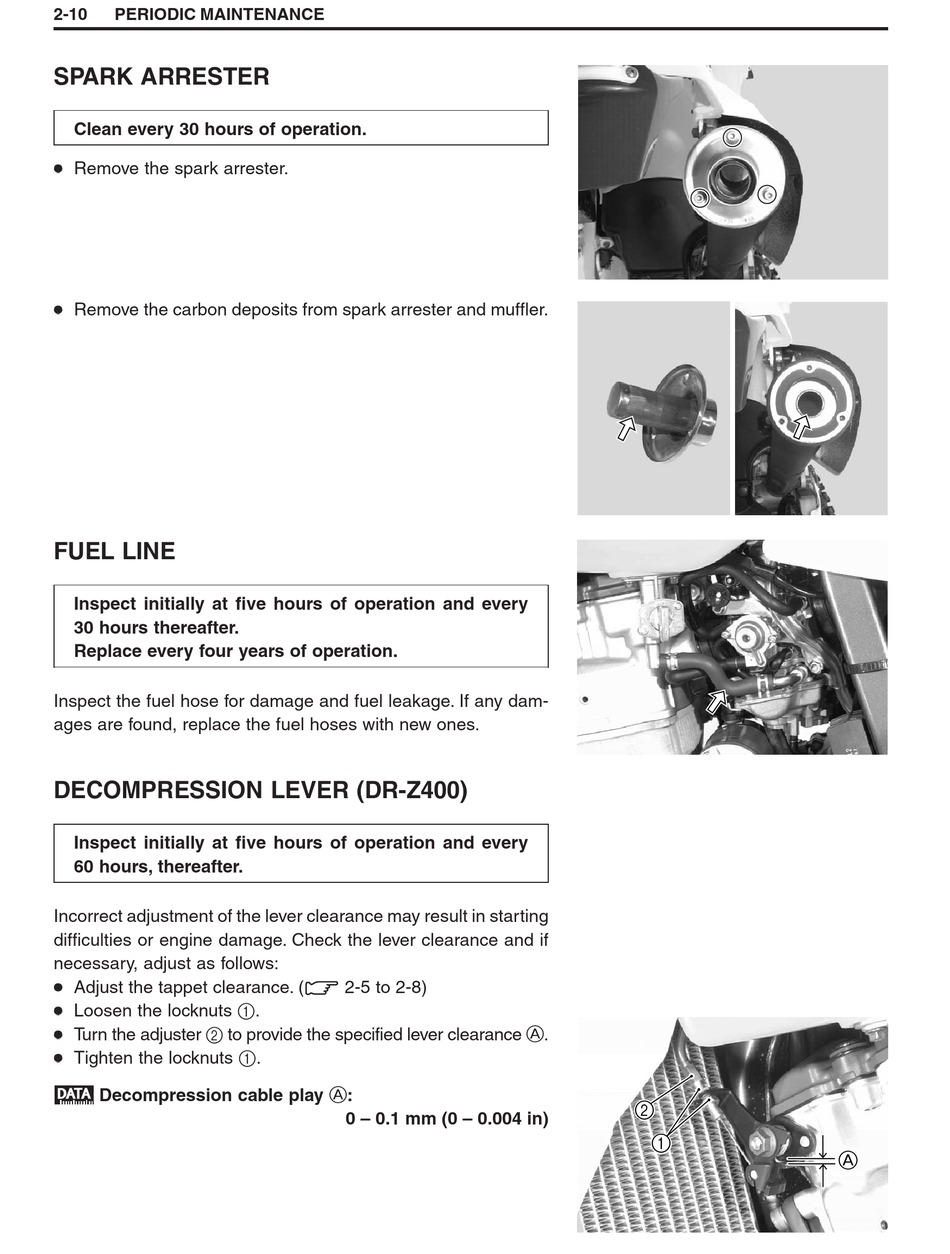

2-10 PERIODIC MAINTENANCE

SPARK ARRESTER

Clean every 30 hours of operation.
Remove the spark arrester.
Remove the carbon deposits from spark arrester and muffler.

FUEL LINE

Inspect initially at five hours of operation and every
30 hours thereafter.
Replace every four years of operation.
Inspect the fuel hose for damage and fuel leakage. If any dam-
ages are found, replace the fuel hoses with new ones.

DECOMPRESSION LEVER (DR-Z400)

Inspect initially at five hours of operation and every
60 hours, thereafter.
Incorrect adjustment of the lever clearance may result in starting
difficulties or engine damage. Check the lever clearance and if
necessary, adjust as follows:
Adjust the tappet clearance. (
Loosen the locknuts 1.
Turn the adjuster 2 to provide the specified lever clearance A.
Tighten the locknuts 1.
Decompression cable play A:
2-5 to 2-8)
0 – 0.1 mm (0 – 0.004 in)
2
1
A
