9-18 DR-Z400EY (E-24 MODEL)

WIRE, CABLE AND HOSE ROUTING

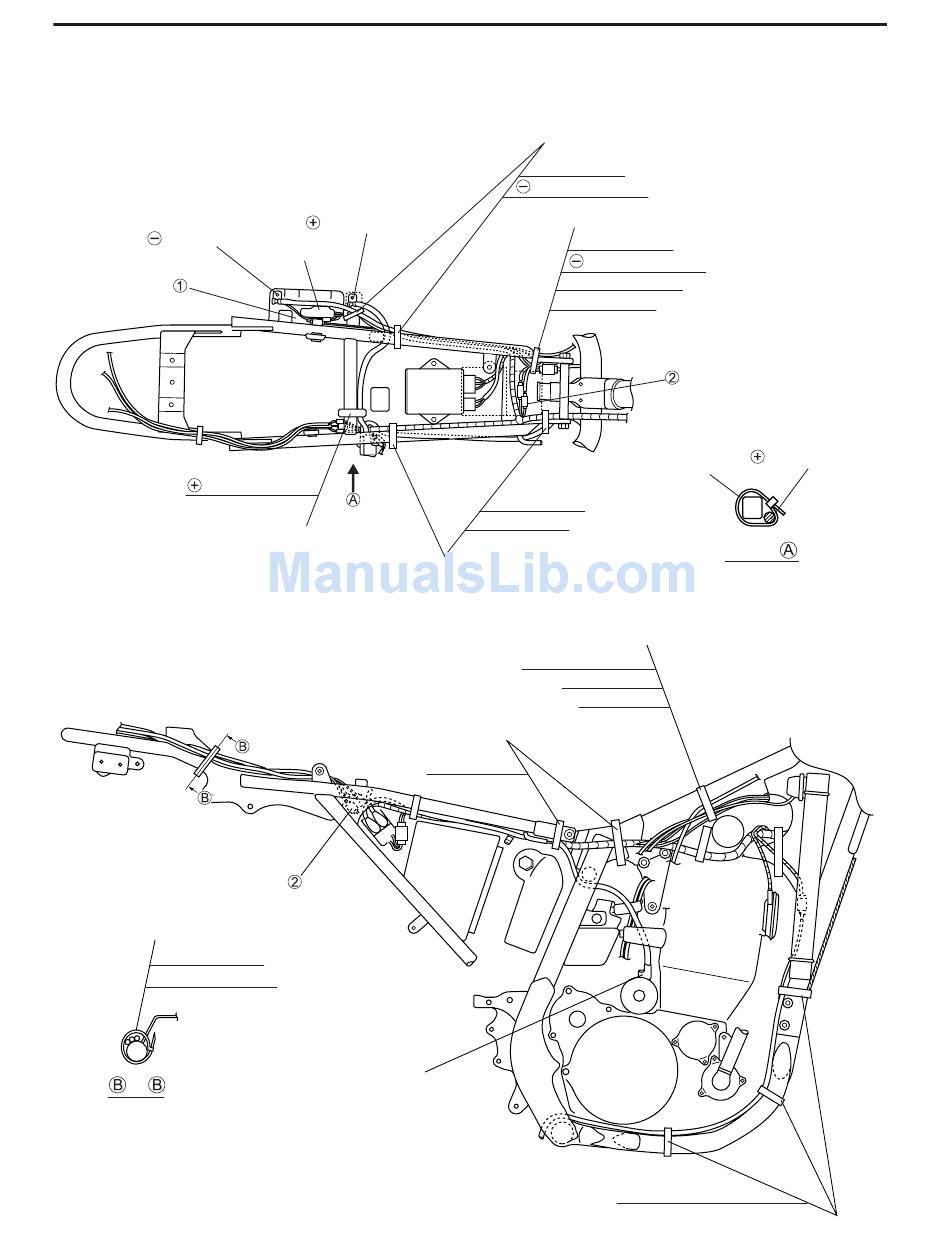

WIRE ROUTING
battery terminal
battery lead wire
Clamp
Turn signal light
Brake light/taillight
–
1 Set + battery and - battery coupler between frame and fuse holder.
2 Push the couplers into the frame.
battery terminal
Fuse
Clamp
Clamp
Wire harness
Starter motor terminal
Clamp
Wire harness
battery lead wire
Clamp
Wire harness
battery lead wire
Side stand switch
Neutral switch
Wire harness
Starter moter
Clamp
Engine stop switch
Throttle cable
Clutch cable
Clamp
Front brake light switch
battery lead wire
Clamp
VIEW
Clamp
