3-8 ENGINE

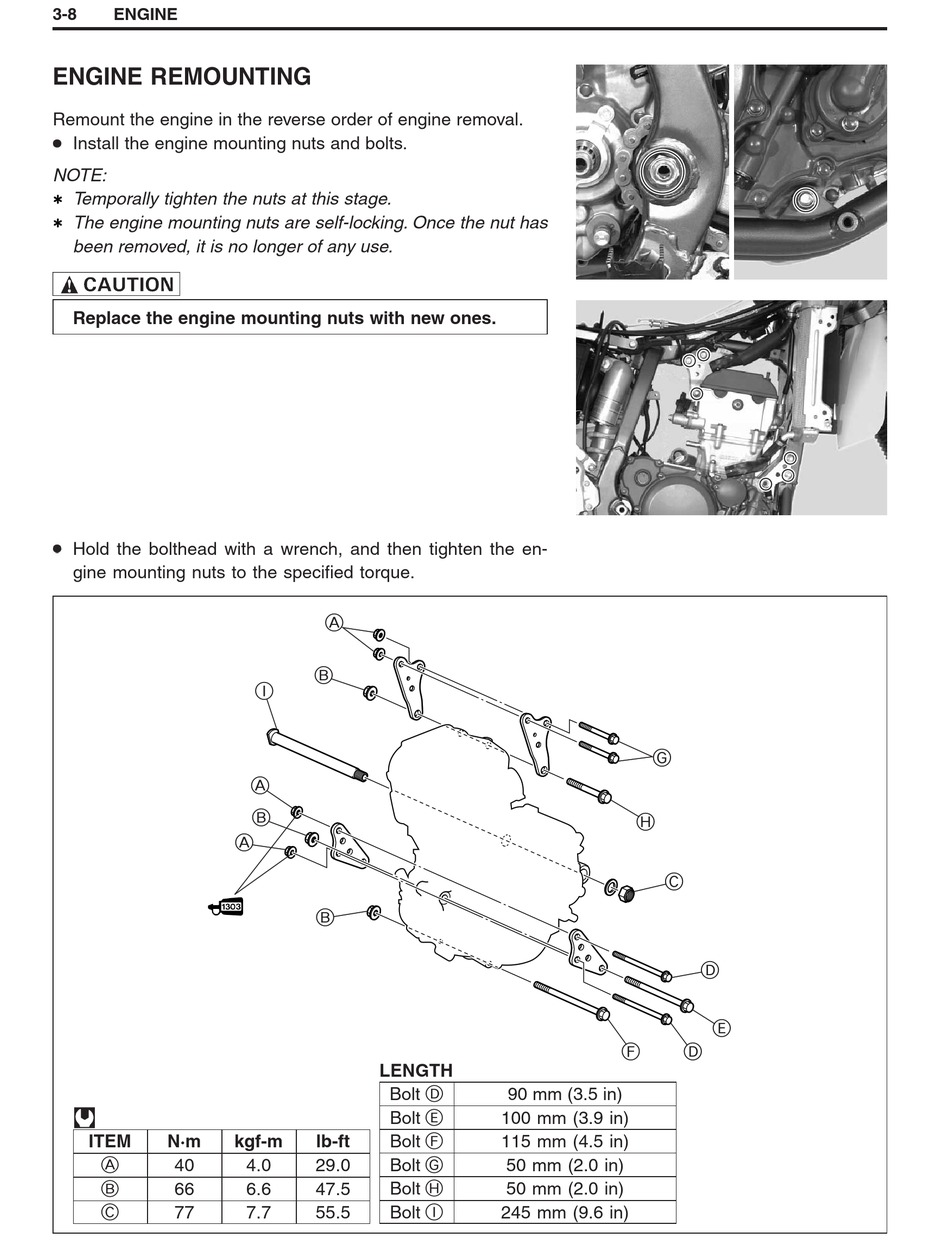

ENGINE REMOUNTING

Remount the engine in the reverse order of engine removal.
Install the engine mounting nuts and bolts.
NOTE:
Temporally tighten the nuts at this stage.
The engine mounting nuts are self-locking. Once the nut has
been removed, it is no longer of any use.
Replace the engine mounting nuts with new ones.
Hold the bolthead with a wrench, and then tighten the en-
gine mounting nuts to the specified torque.
ITEM N·m
A
40
B
66
C
77
A
B
I
A
B
A
B
LENGTH
Bolt D
Bolt E
Bolt F
kgf-m lb-ft
Bolt G
4.0 29.0
Bolt H
6.6 47.5
Bolt I
7.7 55.5
G
H
C
F
90 mm (3.5 in)
100 mm (3.9 in)
115 mm (4.5 in)
50 mm (2.0 in)
50 mm (2.0 in)
245 mm (9.6 in)
D
E
D
