FRONT WHEEL

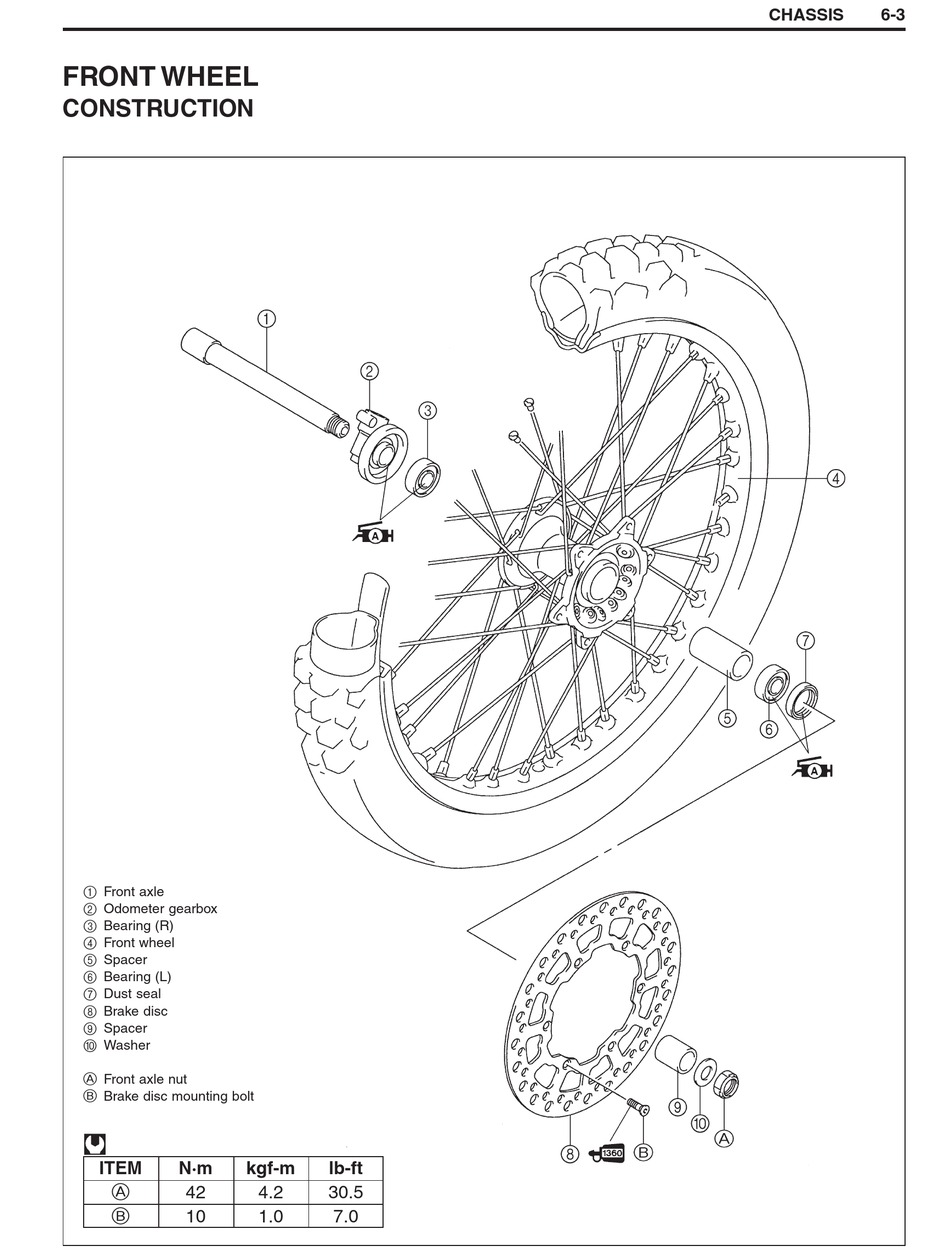

CONSTRUCTION

1 Front axle
2 Odometer gearbox
3 Bearing (R)
4 Front wheel
5 Spacer
6 Bearing (L)
7 Dust seal
8 Brake disc
9 Spacer
0 Washer
A Front axle nut
B Brake disc mounting bolt
ITEM N·m
A
42
B
10
kgf-m lb-ft
4.2 30.5
1.0 7.0
