9-22
DR-Z400EY (E-24 MODEL)

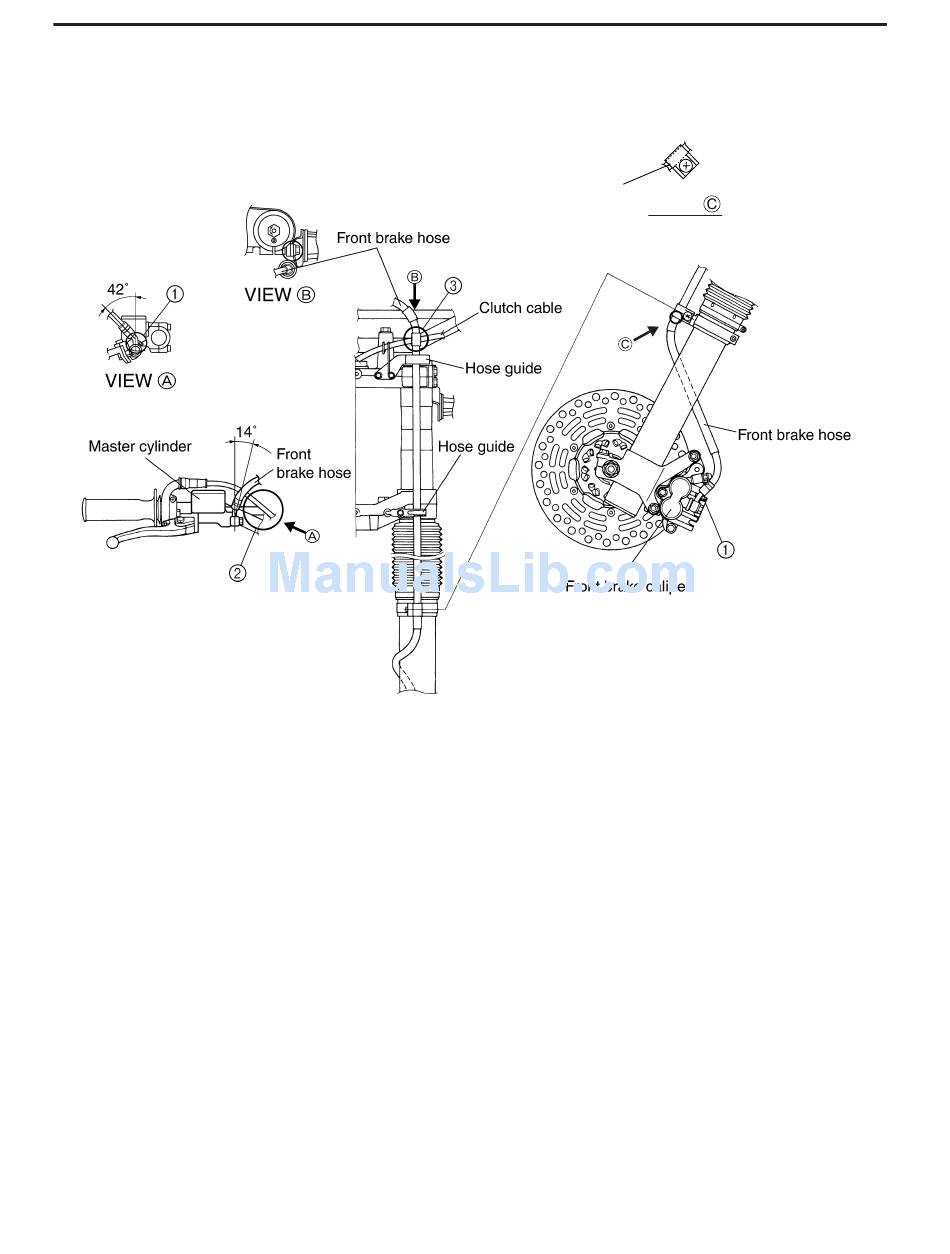

FRONT BRAKE HOSE ROUTING
1 After touching the brake hose union to the stopper, tighten the union bolt to the specified torque.
2 Set brake hose in front of throttle cables.
3 Set brake hose in front of clutch cable.
Align the green mark on
the brake hose with the
lower end of the brake
hose clamp.
Green mark
VIEW
