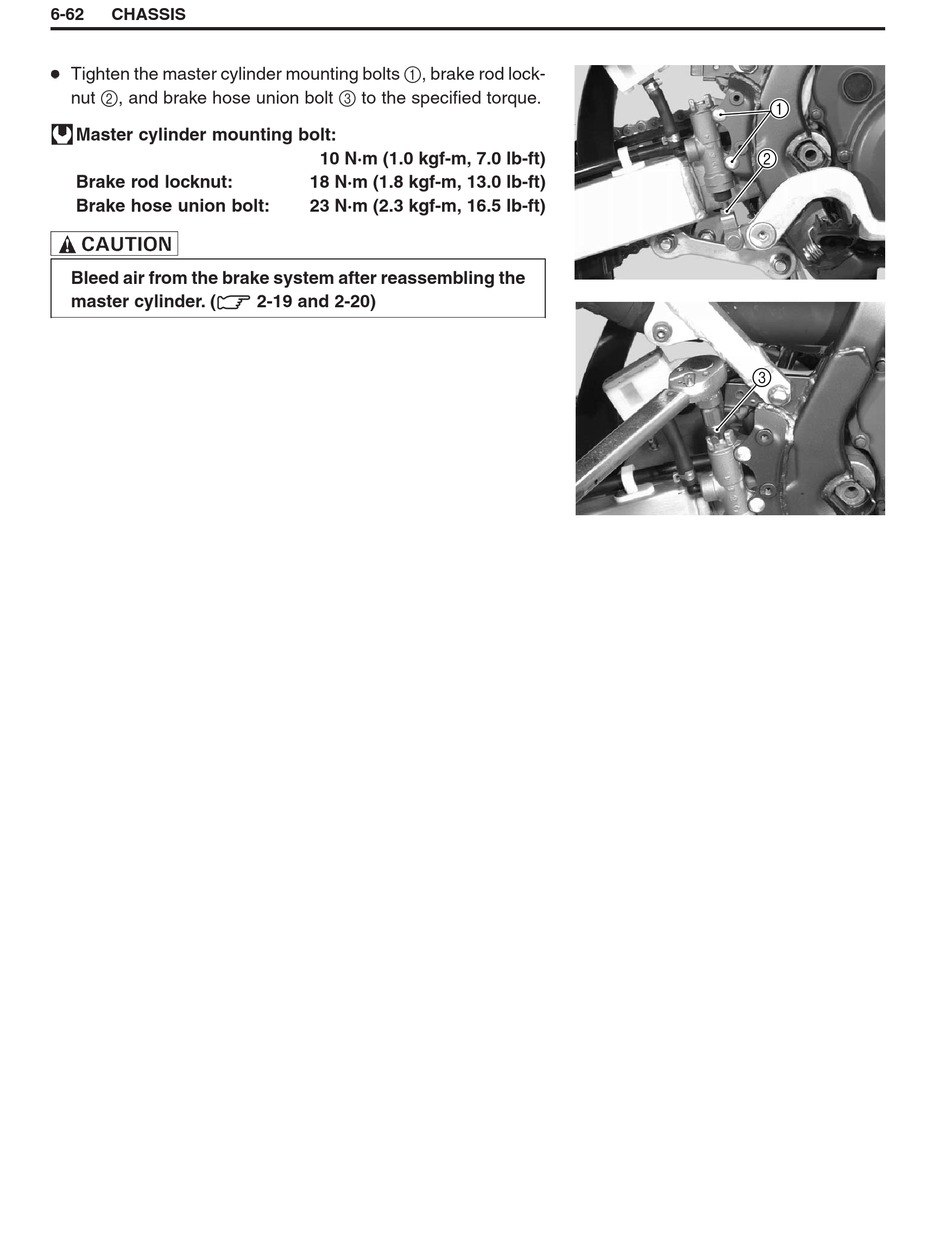

6-62 CHASSIS
Tighten the master cylinder mounting bolts 1, brake rod lock-
nut 2, and brake hose union bolt 3 to the specified torque.
Master cylinder mounting bolt:
Brake rod locknut:
Brake hose union bolt:
Bleed air from the brake system after reassembling the
master cylinder. (
10 N·m (1.0 kgf-m, 7.0 lb-ft)
18 N·m (1.8 kgf-m, 13.0 lb-ft)
23 N·m (2.3 kgf-m, 16.5 lb-ft)
2-19 and 2-20)
1
2
3
