8-16
SERVICING INFORMATION

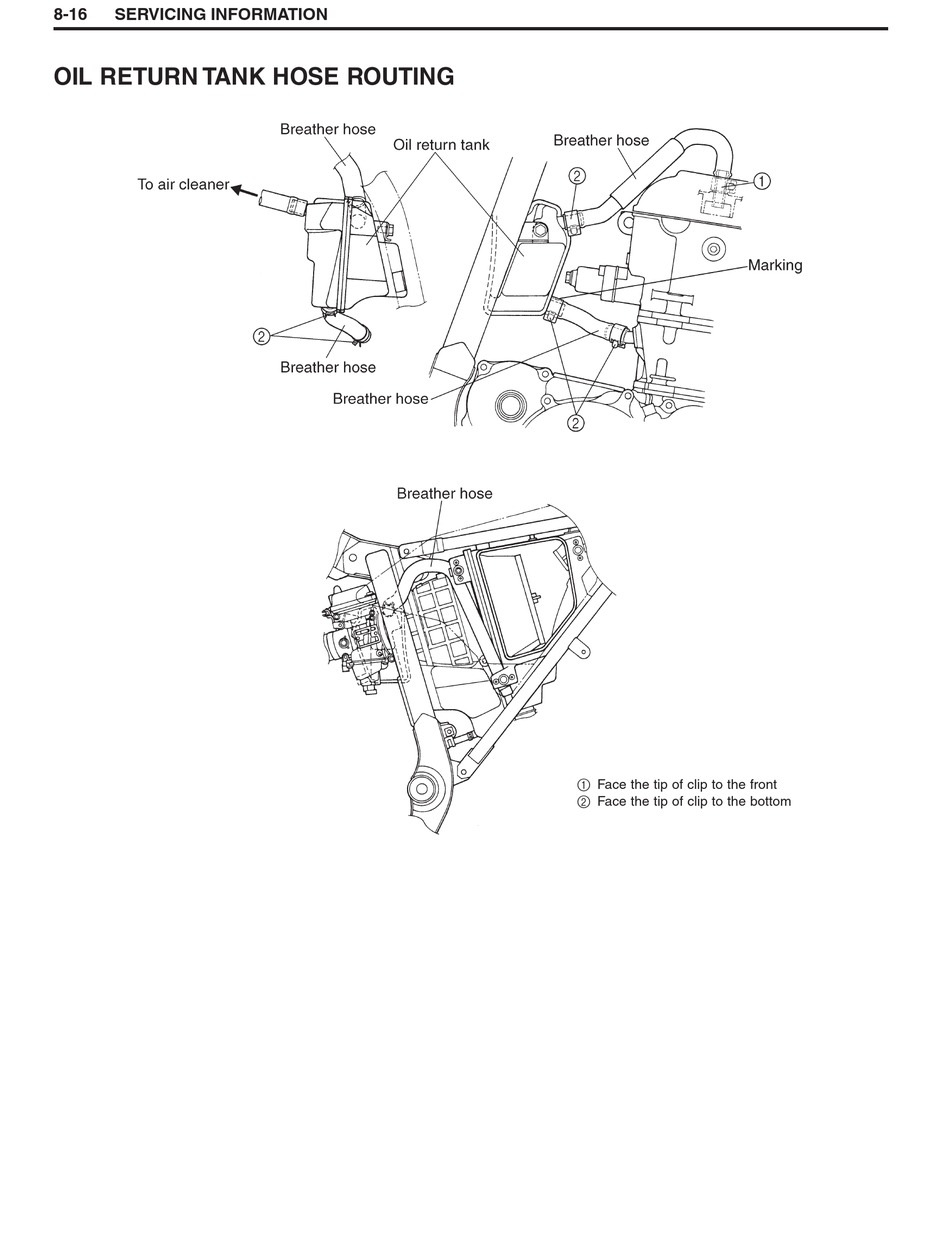

OIL RETURN TANK HOSE ROUTING

1 Face the tip of clip to the front
2 Face the tip of clip to the bottom
