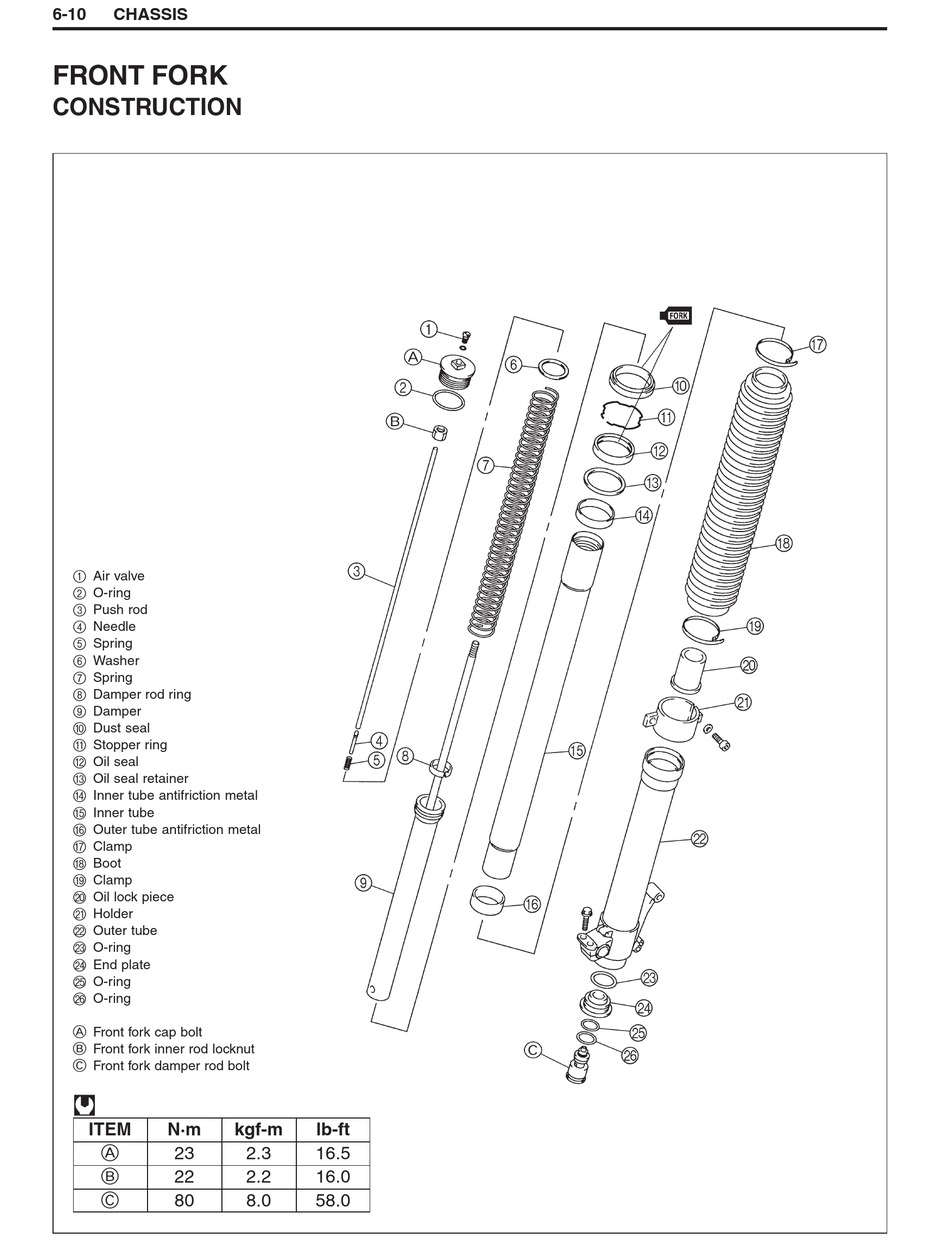

6-10 CHASSIS

FRONT FORK

CONSTRUCTION

1 Air valve
2 O-ring
3 Push rod
4 Needle
5 Spring
6 Washer
7 Spring
8 Damper rod ring
9 Damper
0 Dust seal
A Stopper ring
B Oil seal
C Oil seal retainer
D Inner tube antifriction metal
E Inner tube
F Outer tube antifriction metal
G Clamp
H Boot
I Clamp
J Oil lock piece
K Holder
L Outer tube
M O-ring
N End plate
O O-ring
P O-ring
A Front fork cap bolt
B Front fork inner rod locknut
C Front fork damper rod bolt
ITEM N·m
A
23
B
22
C
80
kgf-m lb-ft
2.3 16.5
2.2 16.0
8.0 58.0
