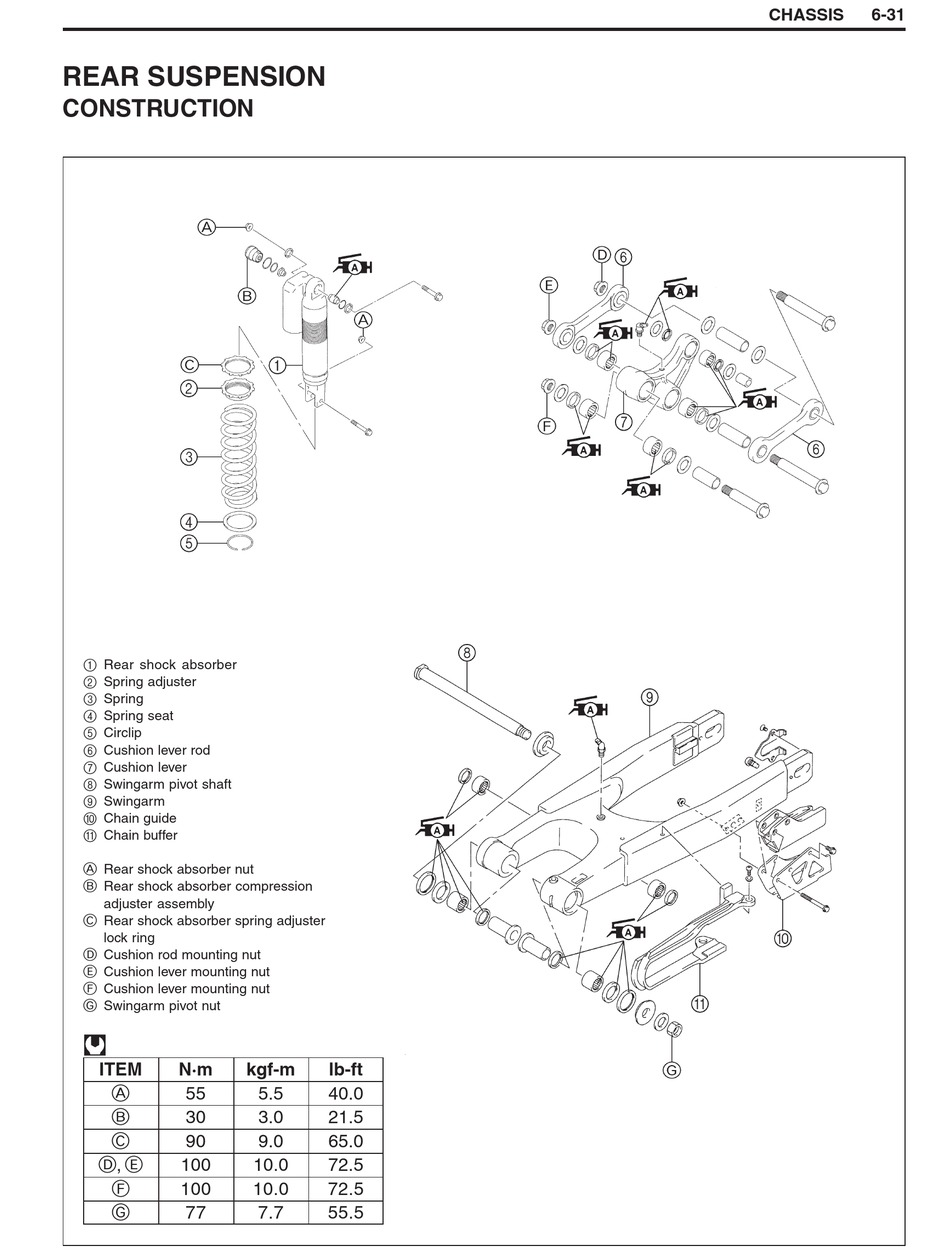

REAR SUSPENSION

CONSTRUCTION

1 Rear shock absorber
2 Spring adjuster
3 Spring
4 Spring seat
5 Circlip
6 Cushion lever rod
7 Cushion lever
8 Swingarm pivot shaft
9 Swingarm
0 Chain guide
A Chain buffer
A Rear shock absorber nut
B Rear shock absorber compression
adjuster assembly
C Rear shock absorber spring adjuster
lock ring
D Cushion rod mounting nut
E Cushion lever mounting nut
F Cushion lever mounting nut
G Swingarm pivot nut
ITEM N·m
A
55
B
30
C
90
D, E
100
F
100
G
77
kgf-m lb-ft
5.5 40.0
3.0 21.5
9.0 65.0
10.0 72.5
10.0 72.5
7.7 55.5
CHASSIS 6-31
