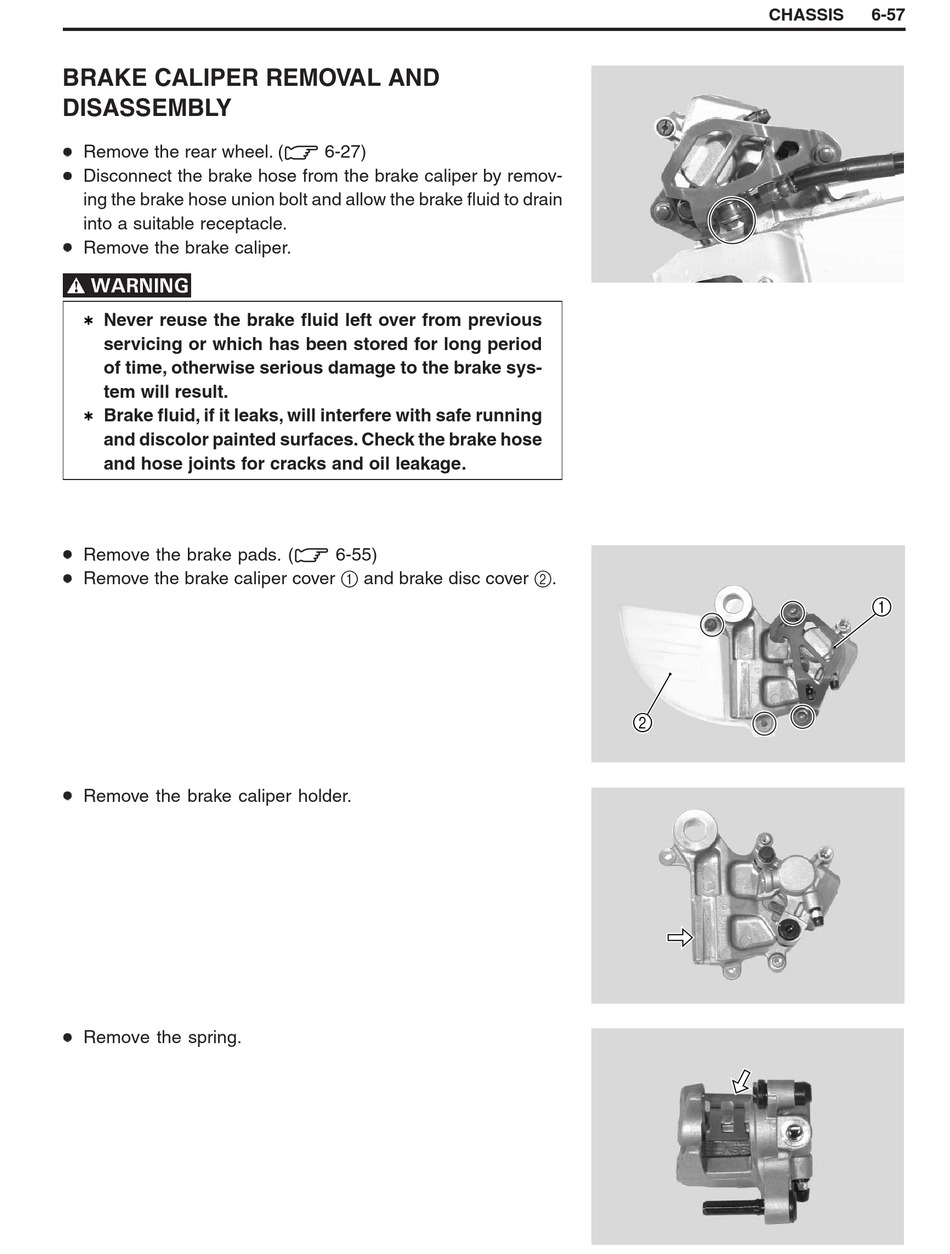

BRAKE CALIPER REMOVAL AND
DISASSEMBLY
Remove the rear wheel. (
Disconnect the brake hose from the brake caliper by remov-
ing the brake hose union bolt and allow the brake fluid to drain
into a suitable receptacle.
Remove the brake caliper.
Never reuse the brake fluid left over from previous
servicing or which has been stored for long period
of time, otherwise serious damage to the brake sys-
tem will result.
Brake fluid, if it leaks, will interfere with safe running
and discolor painted surfaces. Check the brake hose
and hose joints for cracks and oil leakage.
Remove the brake pads. (
Remove the brake caliper cover 1 and brake disc cover 2.
Remove the brake caliper holder.
Remove the spring.
6-27)
6-55)
