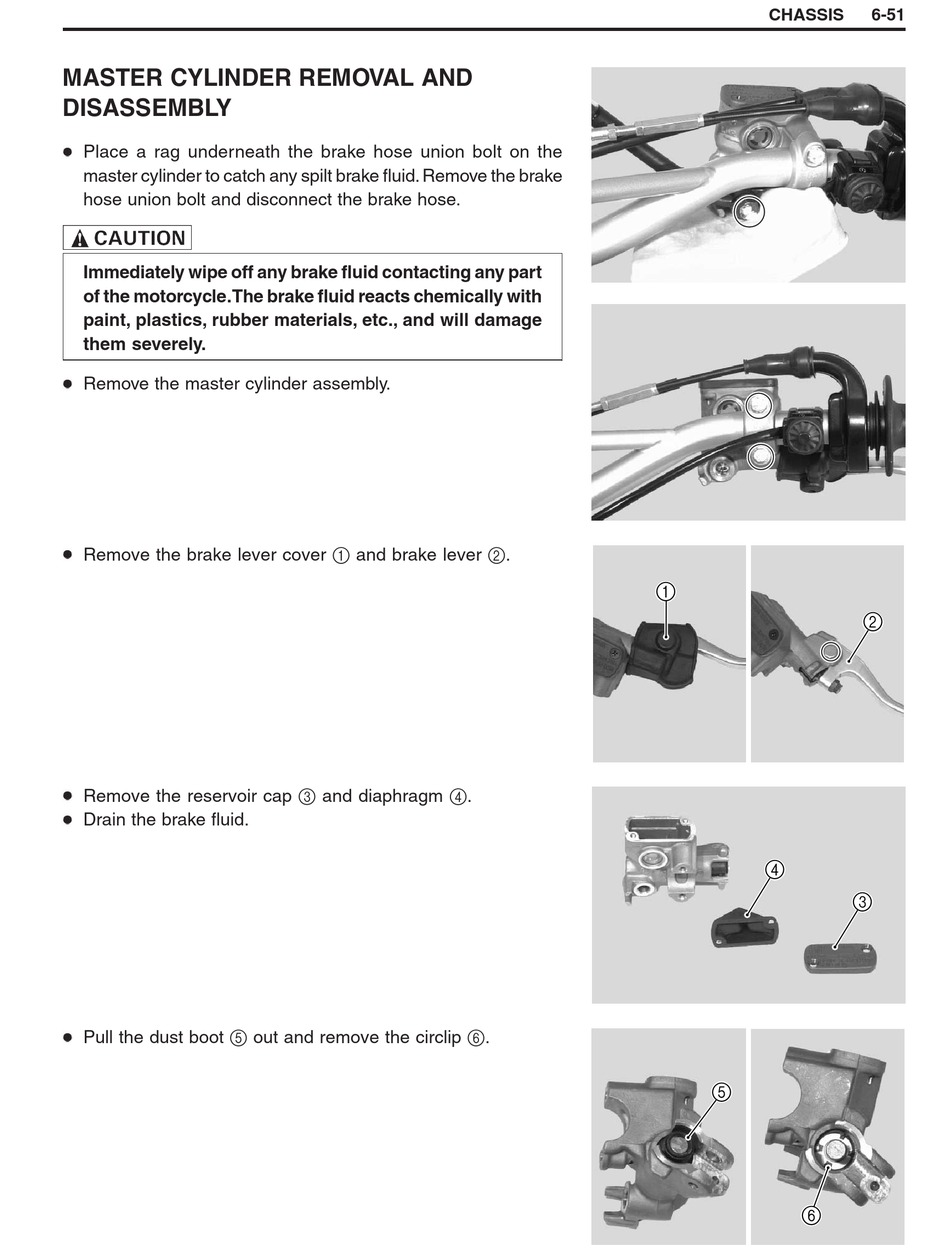

MASTER CYLINDER REMOVAL AND
DISASSEMBLY
Place a rag underneath the brake hose union bolt on the
master cylinder to catch any spilt brake fluid. Remove the brake
hose union bolt and disconnect the brake hose.
Immediately wipe off any brake fluid contacting any part
of the motorcycle. The brake fluid reacts chemically with
paint, plastics, rubber materials, etc., and will damage
them severely.
Remove the master cylinder assembly.
Remove the brake lever cover 1 and brake lever 2.
Remove the reservoir cap 3 and diaphragm 4.
Drain the brake fluid.
Pull the dust boot 5 out and remove the circlip 6.
CHASSIS
1
4
5
6
6-51
2
3
