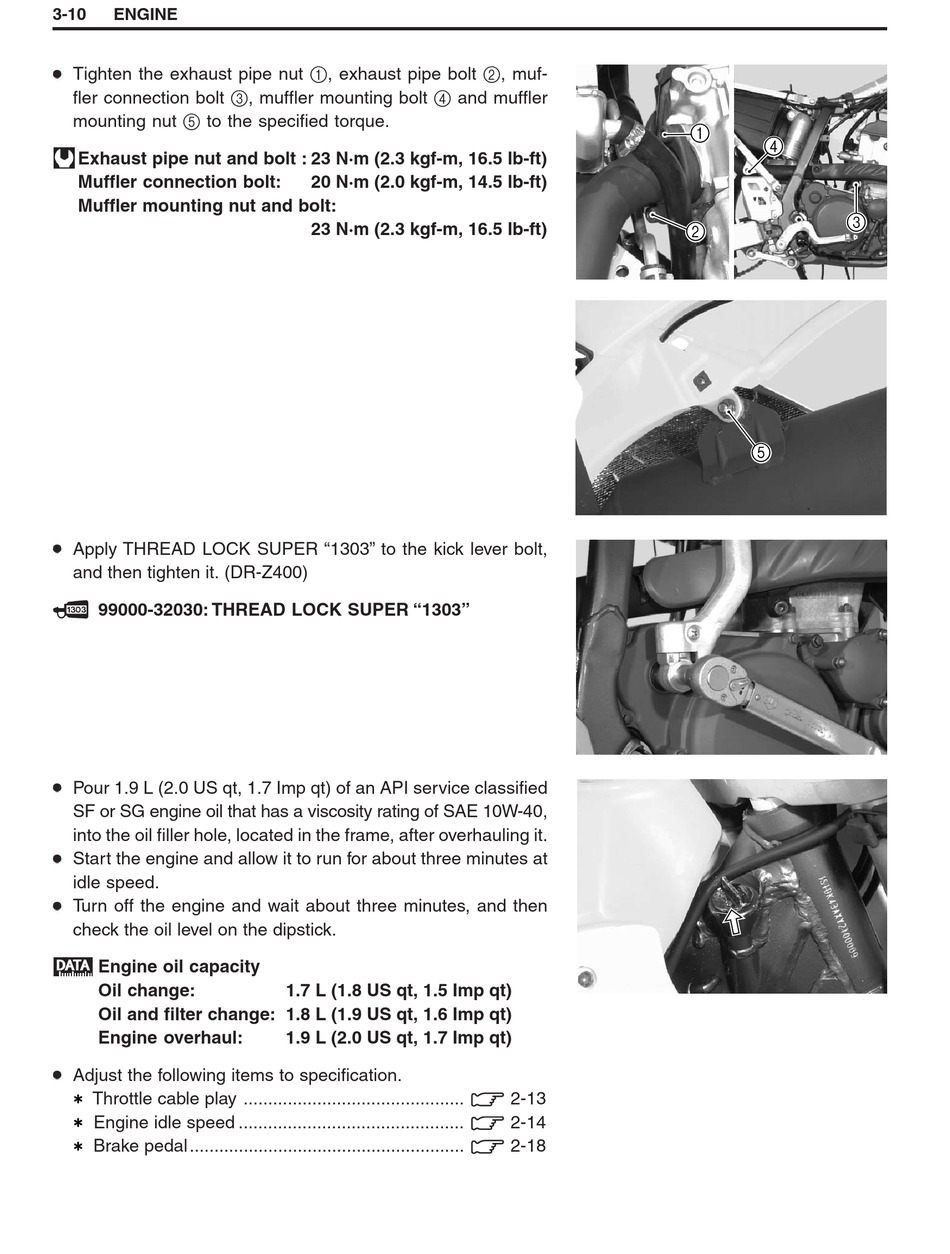

3-10 ENGINE
Tighten the exhaust pipe nut 1, exhaust pipe bolt 2, muf-
fler connection bolt 3, muffler mounting bolt 4 and muffler
mounting nut 5 to the specified torque.
Exhaust pipe nut and bolt : 23 N·m (2.3 kgf-m, 16.5 lb-ft)
Muffler connection bolt:
Muffler mounting nut and bolt:
Apply THREAD LOCK SUPER "1303" to the kick lever bolt,
and then tighten it. (DR-Z400)
99000-32030: THREAD LOCK SUPER "1303"
Pour 1.9 L (2.0 US qt, 1.7 Imp qt) of an API service classified
SF or SG engine oil that has a viscosity rating of SAE 10W-40,
into the oil filler hole, located in the frame, after overhauling it.
Start the engine and allow it to run for about three minutes at
idle speed.
Turn off the engine and wait about three minutes, and then
check the oil level on the dipstick.
Engine oil capacity
Oil change:
Oil and filter change: 1.8 L (1.9 US qt, 1.6 Imp qt)
Engine overhaul:
Adjust the following items to specification.
Throttle cable play .............................................
Engine idle speed ..............................................
Brake pedal ........................................................
20 N·m (2.0 kgf-m, 14.5 lb-ft)
23 N·m (2.3 kgf-m, 16.5 lb-ft)
1.7 L (1.8 US qt, 1.5 Imp qt)
1.9 L (2.0 US qt, 1.7 Imp qt)
