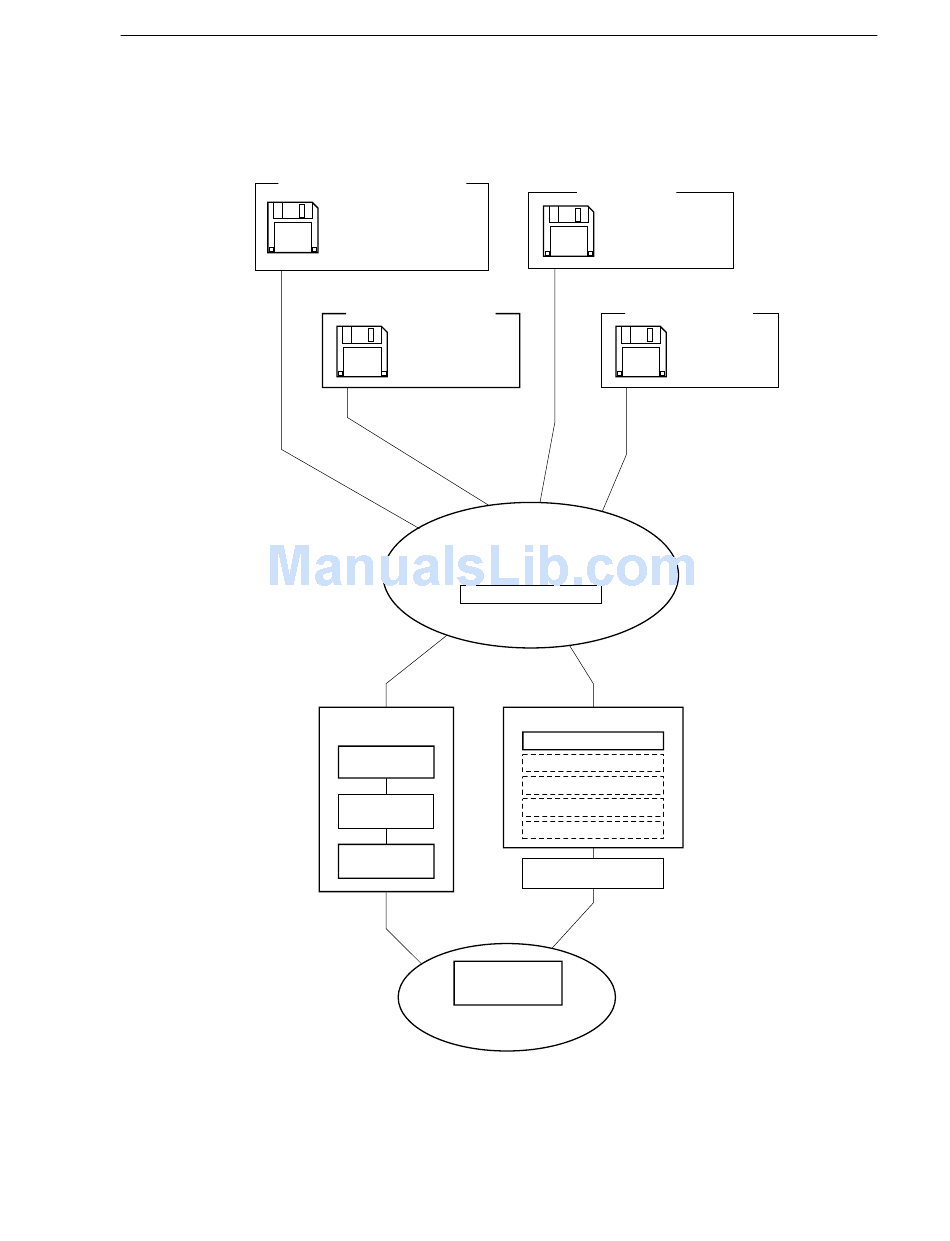

Figure B-1. Development Tool Configuration (2/2)
(2) When using in-circuit emulator IE-78001-R-A
Language processing software
Remark The parts shown within broken lines differ depending on the developing environment. Refer to
B.3.1 Hardware.
APPENDIX B DEVELOPMENT TOOLS
• Assembler package
• C compiler package
• C library source file
• Device file
PROM programming tool
• PG-1500 controller
Host machine (PC or EWS)
Interface board
PROM programming
environment
PROM
programmer
Programmer
adapter
PROM-contained
version
Conversion socket
or
conversion adapter
Target system
Debugging tool
• System simulator
• Integrated debugger
• Device file
Embedded software
• Real-time OS
• OS
In-circuit emulator
Interface adapter
Emulation board
I/O board
Probe board
Emulation probe conversion board
Emulation probe
