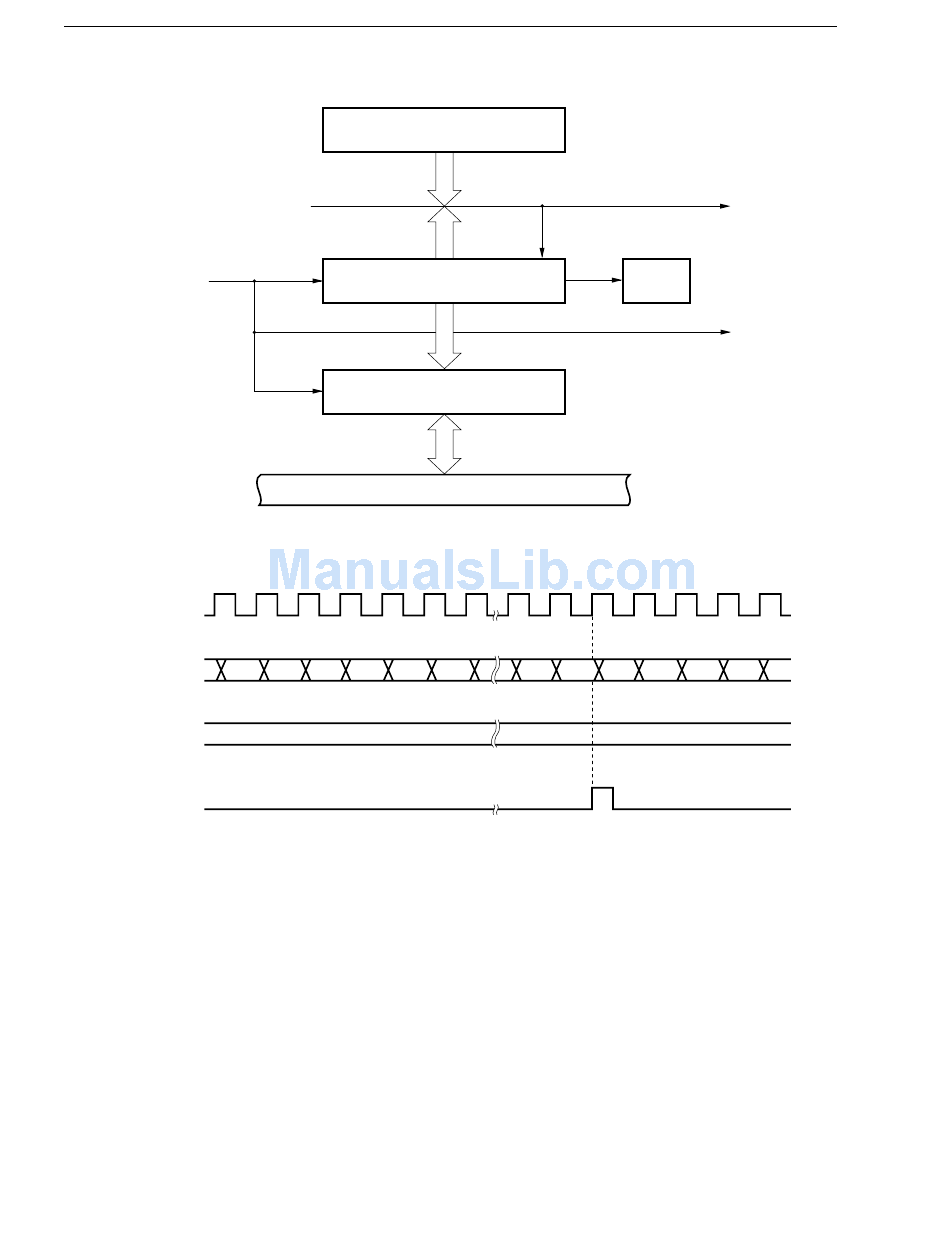

Figure 8-27. External Event Counter Configuration Diagram
TI00 Valid Edge
Figure 8-28. External Event Counter Operation Timings (with Rising Edge Specified)
TI00 Pin Input
TM0 Count Value 0000 0001 0002 0003 0004 0005
CR00
INTTM0
Caution When reading the external event counter count value, TM0 should be read.
212
CHAPTER 8 16-BIT TIMER/EVENT COUNTER
16-Bit Capture/Compare
Register 00 (CR00)
16-Bit Timer Register (TM0)
16-Bit Capture/Compare
Register 01 (CR01)
Internal Bus
N
Clear
OVF0
N – 1 N 0000 0001 0002 0003
INTTM00
INTP0
