5.12.1
PCI Express Routing

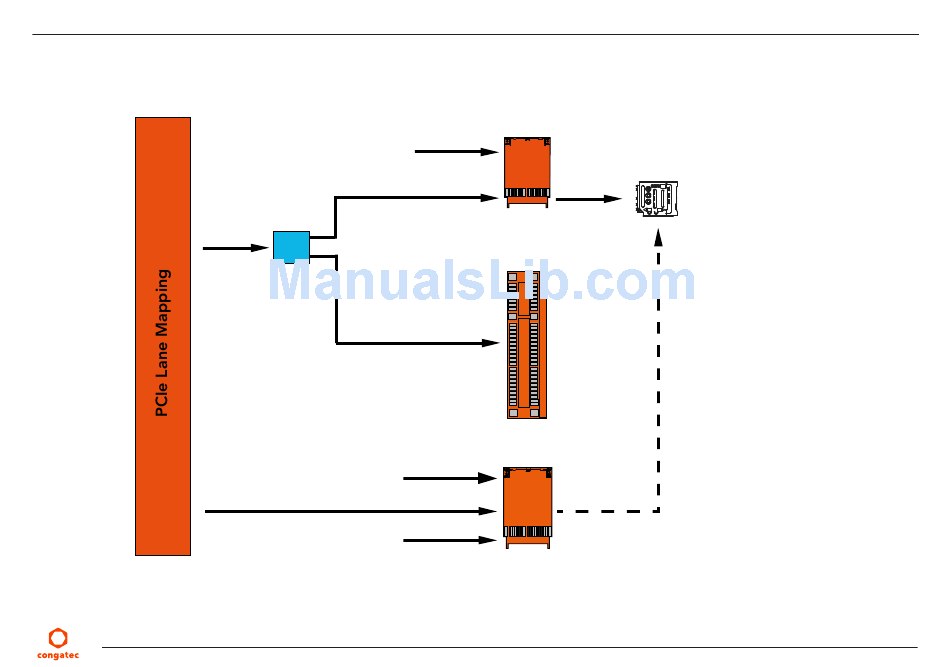

The diagram below shows how the PCIe lanes are routed to the PCIe connectors.
PCIe2
NOTE:
The PCIe x1 Slot (X8) will not function if you insert
an mPCIe card into connector X9 (mPCIe).
If you intend to use connector X8, do not insert any
mPCIe device into connector X9.
The SATA connector CN2 will not function if you insert
a device into the connector X12 (M.2).
If you intend to use connector CN2, do not insert any
M.2 device into connector X12.
The SIM Slot (X10) can be connected to
either mPCIe Slot (X9) or M.2 Slot (X12).
PCIe5
(Alternatively, can be configured as USB 3.0)
Copyright © 2017 congatec AG
USB Signals
MUX
SATA1 Signals
USB 2.0 Signals
mPCIe Slot
Connector X9
SIM Slot
Connector X10
PCIe x1 Slot
Connector X8
M.2 Slot
Connector X12
IA50m01
49/59
