5.11.1

PCI Express Routing

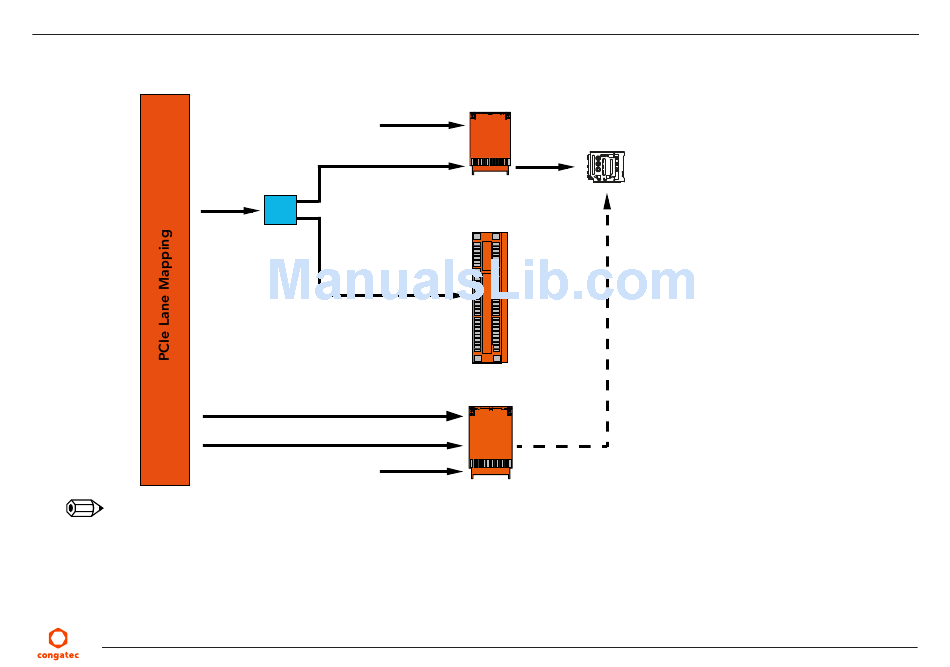

The diagram below shows how the PCIe lanes are routed to the PCIe connectors.

PCIe2

SATA1

(Can be conﬁgured as PCIe4 in BIOS setup)

USB 3.0

(Can be conﬁgured as PCIe5 with a custom BIOS)

Note

You can use either the PCIe x1 (X8) or mPCIe slot (X9). The PCIe x1 slot (x8) will not function if you insert a card into the mPCIe slot (X9).

Optionally, the SIM card slot (X10) can be connected to the M.2 slot (X12). It is connected to the mPCIe slot (X9) by default.

You can have either USB3.0 (default) or PCIe5 signals on the M.2 slot (X12). You can change the signals to PCIe5 with a custom BIOS.

You can have either SATA1 (default) or PCIe4 signals on the M.2 slot (X12). You can change the signals to PCIe4 in the BIOS setup.

USB 2.0

MUX

USB 2.0

mPCIe (X9)

SIM (X10)

PCIe x1 (X8)

M.2 (X12)

IA50m10

49/59
