Power Supply (Internal Connector)

The conga-IA5 offers a straight internal 4-pin power connector (X44) by default or a straight connector (X48) by assembly option. This connector
makes it possible to use customized power supply cables/connector and also offers short transient over-voltage protection to the input voltage.

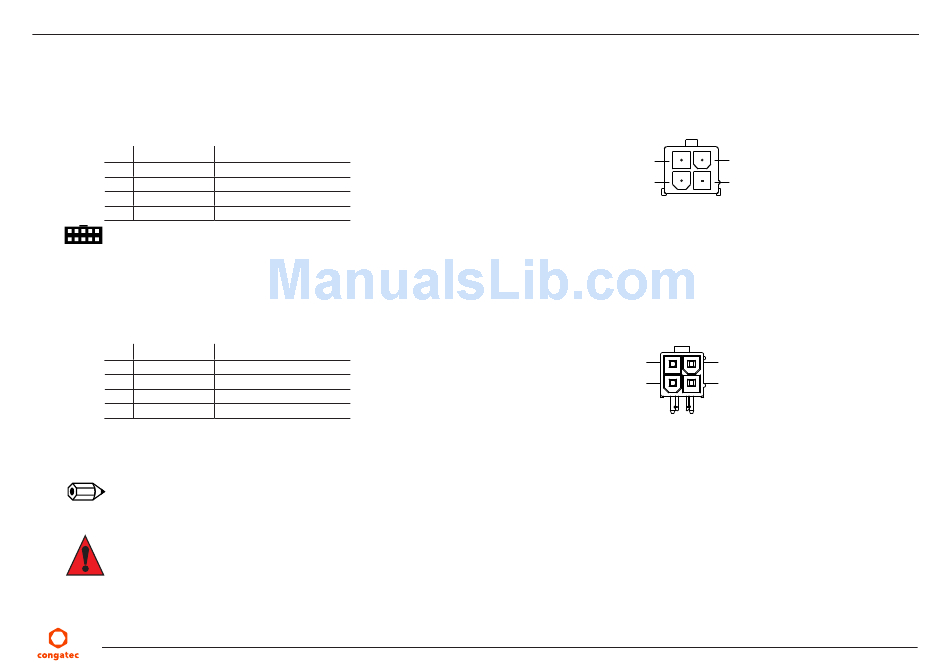

Table 12 Straight Internal Power (X44 Connector) Pinout Description
Pin Signal
1 GND
2 GND
3 +12V - 24V
4 +12V - 24V
Connector Type
X44: 4.2mm, 4 pin, straight, pin 1 rotated by 90 degrees to common (PN: 41500603)
Possible Mating Connector: Molex 39-01-2045
Table 13 Right Angle Internal Power (X48 Connector) Pinout Description
Pin Signal
1 +12V - 24V
2 +12V - 24V
3 GND
4 GND
X48: 4.2mm, 4 pin, right angle (PN: 41500604)
Possible Mating Connector: Molex 39-01-2045
Note
Depending on your BIOS settings, the conga-IA5 may start immediately after power is supplied.
Caution
The absolute maximum rating of the input voltage is 26.5 volts. Do not exceed this rating or expose the conga-IA5 to the absolute maximum
voltage for a prolonged time. Doing so may damage the system or affect system reliability.
