5.1.2

Power Supply (Internal Connector)

The conga-PA5 offers an internal 2-pin power connector. This connector makes it possible to use customized power supply cables/connector
and also offers short transient over-voltage protection to the input voltage.
Table 11 Connector X22 Pinout Description
Pin Signal
1 +12V
2 GND
Connector Type
X22: 2 pin, 3mm pitch micro-fit internal power connector
Possible Mating Connector: Molex 43645-0200
Note
For conga-PA5 commercial variants, you can use connector X22 as a +12V power output if the system is powered via the DC jack. The
industrial variants have only connector X22 for power input.
Caution
The absolute maximum rating of the input voltage is 13.2 volts. Do not exceed this rating or expose the conga-PA5 to the absolute maximum
voltage for a prolonged time. The system may not function, may be damaged or may have reliability issues if you do not observe this warning
information.
5.1.3

Power Status LED

The conga-PA5 provides an LED signal (PWR_LED) on pin 9 of the feature connector X18. The signal indicates the different power states of the
conga-PA5. Possible states of the LEDs are shown below:
Table 12 Single-Color Power LED
LED State Description
Off Sleeping or power-off (not running)
LED on Running
Copyright © 2017 congatec AG
Description
Power Supply +12V
Ground
ACPI State
S3, S5
S0

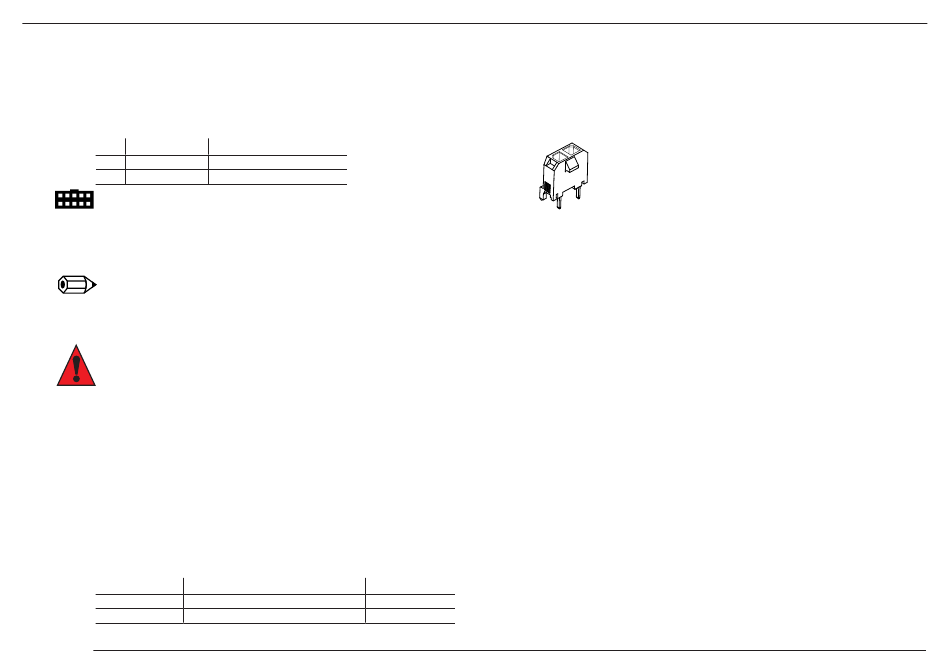

Internal Power Connector X22
2
1
