5.1.2

Power Supply (Internal Connector)

The conga-IA4 offers an internal 4-pin power connector. This connector makes it possible to use customized power supply cables/connector
and also offers under/over voltage protection to the input voltage.
Table 11 Connector X44 Pinout Description
Pin Signal
1 GND
2 GND
3 +12V - 24V
4 +12V - 24V
Connector Type
X44 : Internal power connector with 4 pin, 4.2mm pitch (PN: 41500079)
Possible Mating Connector: Molex 39-01-2045
Note
The conga-IA4 starts immediately power is supplied.
Caution
The absolute maximum rating of the input voltage is 36 volts. Do not exceed this rating or expose the conga-IA4 to the absolute maximum
voltage for a prolonged time. Doing so may damage the system or affect system reliability.
5.1.3 Optional SBM
3
The conga-IA4 offers an optional SBM
IA4 SBC optionally with an SBM battery kit. The battery kit requires two connections - the SBM battery power on connector X50 and the SBM
battery signals on connector X45.
Note
To use the SBM 3 feature, you must update the conga-IA4 firmware.
Copyright © 2016 congatec AG
Description
Ground
Ground
Power supply +12V-24V
Power supply +12V-24V
Power Connector (Internal Connector)
power connector (only BOM option). When this connector (X50) is populated, you can power the conga-
3

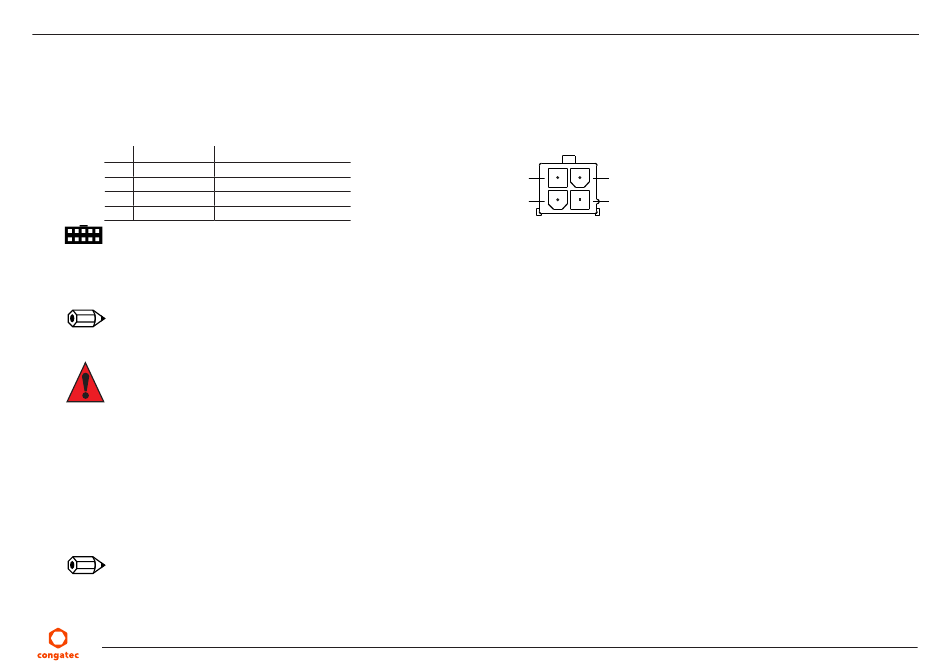

Internal Power Connector X44
3
4
1
2
