Konica Minolta bizhub C200 Service Manual page 409

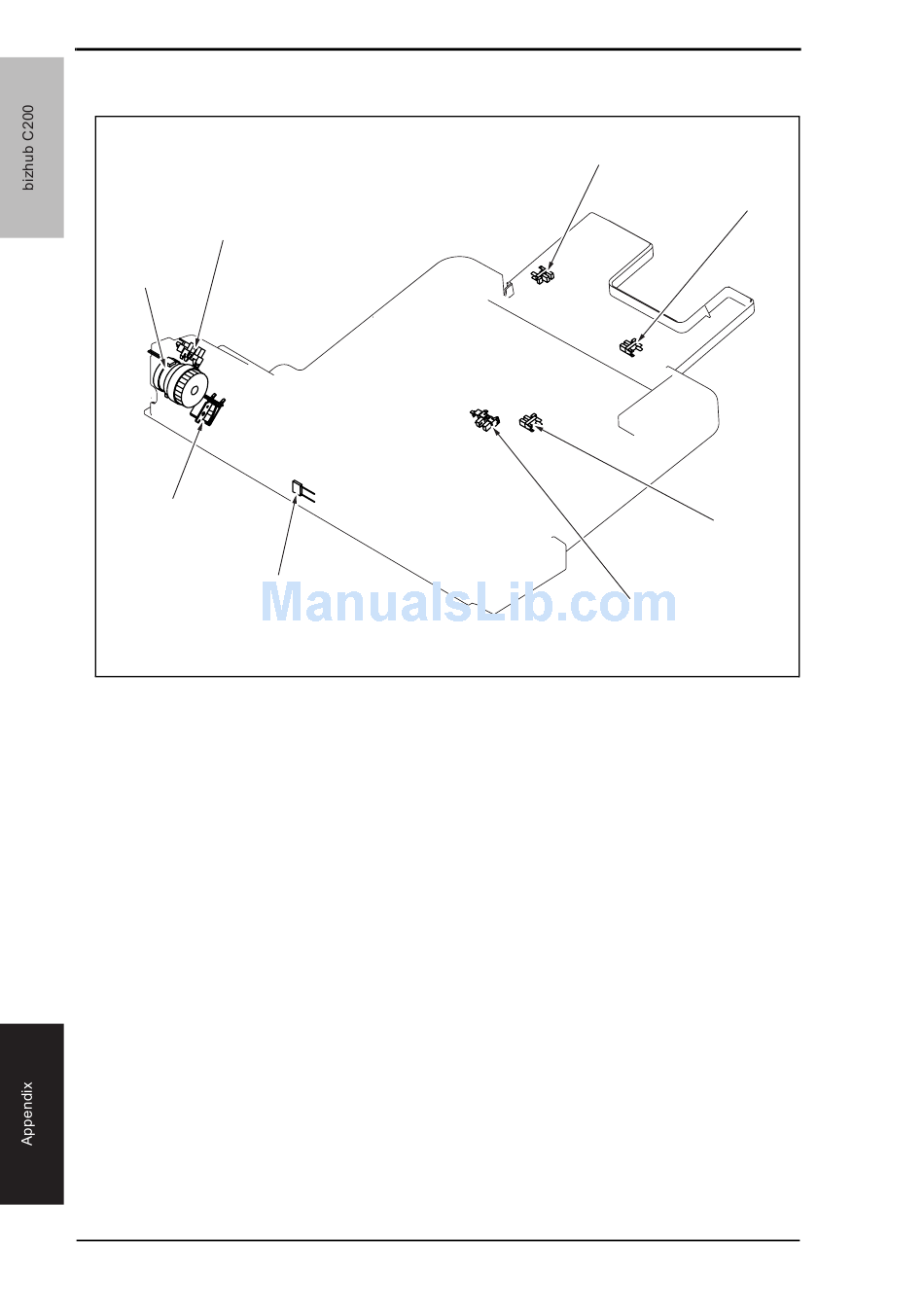

20. Parts layout drawing
20.3 MB-502 (option)
[8]
[7]
[6]
[1] FD size sensor/3 (PS22)
[2] FD size sensor/2 (PS21)
[3] FD size sensor/1 (PS20)
[4] Paper empty sensor (PS13)
370
[5]
Field Service Ver. 1.0 Jun. 2008
[1]
[4]
[5] Paper width detection resistor (VR1)
[6] Manual pick-up solenoid (SD2)
[7] Paper feed clutch (CL5)
[8] Lift-up position sensor (PS14)
[2]
[3]
A0EPF5C500DA
