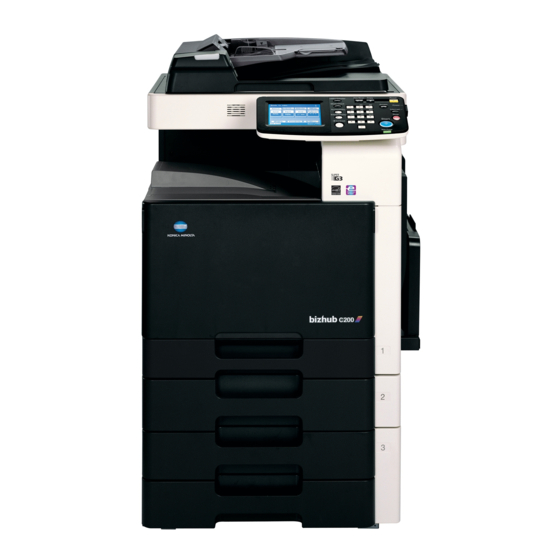

Konica Minolta bizhub c200 User Manual

Hide thumbs Also See for bizhub c200:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
User's Guide [Network Administrator]

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta bizhub c200

Summary of Contents for Konica Minolta bizhub c200

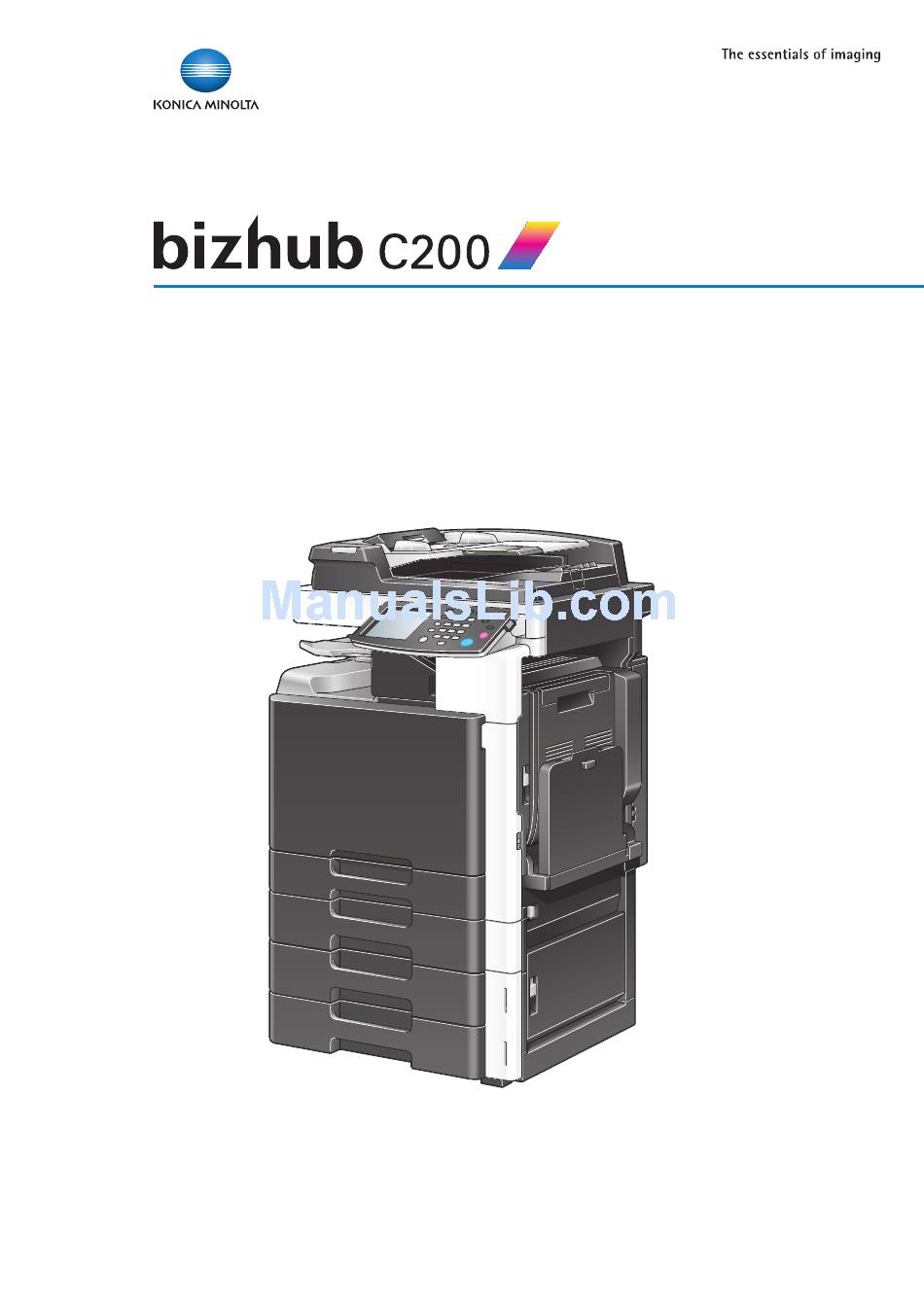

  • Page 1 User’s Guide [Network Administrator]...
  • Page 2 Thank you for purchasing this machine. This User’s Guide contains details on specifying settings for connecting and using the bizhub C200 with a network, on changing software switch settings, and on using Assistant tool for C200. To ensure the best possible performance and most effective use of the machine, refer to this User’s Guide, as necessary.

  • Page 3: Table Of Contents

    Table of contents Introduction Table of contents..............................x-2 About this manual..............................x-8 Structure of the manual ...........................x-8 Notations ..............................x-8 Explanation of manual conventions ......................x-9 User’s Guides................................x-10 Printed manual ............................x-10 User’s Guide CD manuals ........................x-10 Specifying network settings Displaying the Network Settings screen .................... 1-2 List of network settings for each operation..................
  • Page 4 Specifying the settings ...........................1-33 When SMTP authentication is used .......................1-35 1.3.12 RAW Port Number Settings........................1-36 Parameters .............................1-36 Specifying the settings ...........................1-36 Checking the network connection (Ping) ..................1-37 Specifying machine functions (software switch settings) Software switch settings ........................2-2 Specifying software switch settings ....................2-4 List of software switch settings ......................
  • Page 5 Specifying the settings ...........................2-17 2.4.15 Specifying TCP socket settings and NetWare settings (mode 386)............2-17 Factory settings ............................2-17 Specifying the settings ...........................2-17 2.4.16 Specifying settings concerning the encryption method for SSL/TLS and the SNMP protocol (mode 389)..............................2-18 Factory settings ............................2-18 Specifying the settings ...........................2-18 2.4.17 Specifying settings concerning the SNMP protocol (mode 390) ............2-19 Factory settings ............................2-19...
  • Page 6 2.5.15 Specifying the setting for selecting paper when printing received documents (mode 302) ....2-31 Factory settings ............................2-31 Specifying the settings ...........................2-31 2.5.16 Specifying settings concerning Internet faxing (mode 350) ..............2-32 Factory settings ............................2-32 Specifying the settings ...........................2-32 2.5.17 Specifying transmission source information for IP address fax transmissions and IP relay operations (mode 351)..............................2-33 Factory settings ............................2-33 Specifying the settings ...........................2-33...
  • Page 7 Copying settings ..........................2-44 2.7.1 Specifying settings for the main application (mode 402) ...............2-44 Factory settings ............................2-44 Specifying the settings ...........................2-44 2.7.2 Specifying settings for using Copy mode operations (mode 403) ............2-44 Factory settings ............................2-44 Specifying the settings ...........................2-44 2.7.3 Specifying whether or not the number of copies are limited (mode 417)..........2-45 Factory settings ............................2-45 Specifying the settings ...........................2-45...
  • Page 8 Administrator mode..........................3-26 3.4.1 System tab..............................3-26 System Settings - Measurement Unit Setting ..................3-26 System Settings - Paper Tray Setting ....................3-26 System Settings - Auto Color Level Adjustment ..................3-27 System Settings - Power Save Setting....................3-27 System Settings - Output Settings......................3-28 System Settings - Date & Time Setting ....................3-28 System Settings - Paper Size/Type Counter..................3-29 Display Settings............................3-29 Copier Settings ............................3-29...

  • Page 9: About This Manual

    Chapter 1 Specifying network settings Chapter 2 Specifying machine functions (software switch settings) Chapter 3 Assistant tool for C200 Chapter 4 Appendix Chapter 5 Index Notations Product name Notation in the manual bizhub C200 This machine Microsoft Windows Windows C200...

  • Page 10: Explanation Of Manual Conventions

    Explanation of manual conventions C200...

  • Page 11: User's Guides

    User’s Guides This machine is provided with printed manuals and PDF manuals on the User’s Guide CD. Printed manual Quick Guide [Copy/Print/Fax/Scan Operations] This manual contains operating procedures and descriptions of the most frequently used functions, allowing the machine to immediately be used. In addition, this manual contains notes and precautions that should be followed for safe use of the machine.

  • Page 12: Specifying Network Settings

    Specifying network settings...

  • Page 13: Displaying The Network Settings Screen

    Specifying network settings Specifying network settings Displaying the Network Settings screen Network settings are specified from the Administrator Management screen in Utility mode. Press the [Utility/Counter] key. Touch [Admin.]. Type in the password, and then touch [OK]. – For details on specifying and changing the password, refer to the User’s Guide [Copy Operations]. C200...
  • Page 14 Specifying network settings Touch [↓], and then touch [Network Settings]. The Network Settings screen appears. Reminder If items marked with are changed, the machine must be turned off, then on again. When turning the machine off, then on again, wait about 10 seconds to turn the machine on after turning it off. The machine may not operate correctly if it is turned on immediately after being turned off.

  • Page 15: List Of Network Settings For Each Operation

    Specifying network settings List of network settings for each operation The available operations are limited according to the connected network environment. Specify the network settings according to the environment and operations to be performed. The network settings should be specified as shown below in order for the various operations to be used. -: Required +: Necessary depending on environment o: Available...
  • Page 16 Specifying network settings Operation Inter- IP ad- Scan For- IP re- Scan Scan Assist- dress to E- ward- to FTP ant tool Mail C200 ceive d doc- ument Parameter RX Doc. Header − − − − − − − − Print E-Mail Header −...

  • Page 17: Specifying Network Settings

    Specifying network settings Specifying network settings 1.3.1 Network Settings Parameter Description Page refer- ence Basic Settings Specify the address settings in order to use this machine in a TCP/IP network p. 1-6 environment. DNS Settings Specify the host name and domain name in order to use a DNS server. p.

  • Page 18: Specifying The Settings

    Specifying network settings Note After changing the settings for these parameters, the machine must be turned off, then on again. Specifying the settings In the Network Settings screen, touch [Basic Settings]. Touch [DHCP]. Select the method for retrieving the IP address, and then touch [OK]. –...
  • Page 19 Specifying network settings Use the keypad to type in the subnet mask value, and then touch [OK]. – To enter a number with less than 3 digits, touch [→] to move the cursor to the next number. Touch [Gateway]. Use the keypad to type in the gateway address, and then touch [OK]. –...

  • Page 20: Dns Settings

    Specifying network settings Touching [OK] displays the following screen. To apply the new settings, turn the machine off, then on again. Reminder When turning the machine off, then on again, wait about 10 seconds to turn the machine on after turning it off.
  • Page 21 Specifying network settings Type in the host name for the machine, and then touch [OK]. Touch [Domain Name]. Type in the domain name of the DNS server, and then touch [OK]. Touch [DNS Server Address]. Touch [DNS Server Address 1]. –...

  • Page 22: Machine Name

    Specifying network settings Type in the IP address for DNS server 1, and then touch [OK]. – The IP address cannot be specified to begin with "0.", "127.", or a number greater than "224". – To enter a number with less than 3 digits, touch [→] to move the cursor to the next number. Touch [OK] in each screen until the initial screen appears.

  • Page 23: Smtp Tx Settings

    Specifying network settings 1.3.5 SMTP TX Settings Parameters Parameter Description SMTP Server Address Specify the IP address of the SMTP server. This must be specified in order to send Scan to E-mail and Internet fax transmissions. E-Mail Address Specify the e-mail address of the machine. SMTP Authentication Specify the SMTP authentication user name used with SMTP authentication.

  • Page 24: When Smtp Authentication Is Used

    Specifying network settings Type in the e-mail address of this machine, and then touch [OK]. Touch [OK] in each screen until the initial screen appears. When SMTP authentication is used In the Network Settings screen, touch [SMTP TX Settings]. Touch [SMTP Authentication User Name]. Type in the SMTP authentication user name, and then touch [OK].

  • Page 25: Smtp Rx Settings

    Specifying network settings Touch [New Password], type in the SMTP authentication password, and then touch [OK]. Touch [Confirm New Password], type in the SMTP authentication password again, and then touch [OK]. Touch [OK] in each screen until the initial screen appears. Detail In order to specify SMTP authentication settings, the software switch settings must be specified.

  • Page 26: Specifying The Settings

    Specifying network settings Detail Using the software switch settings, you can select whether or not SMTP reception is used. For details, refer to "Specifying settings concerning Assistant tool for C200, SMTP transmission/reception and POP3 reception (mode 361)" on page 2-11. In order to specify SMTP authentication settings, the software switch settings must be specified.

  • Page 27: When Smtp Authentication Is Used

    Specifying network settings When SMTP authentication is used In the Network Settings screen, touch [SMTP RX Settings]. Touch [SMTP Authentication User Name]. Type in the SMTP authentication user name, and then touch [OK]. Touch [SMTP Authentication Password]. Touch [New Password], type in the SMTP authentication password, and then touch [OK]. Touch [Confirm New Password], type in the SMTP authentication password again, and then touch [OK] twice.
  • Page 28 Specifying network settings Touch [1]. – For multiple exception settings, settings can be specified for Exception Setting "2" and "3". Use the keypad to type in the starting and ending IP addresses, and then touch [OK]. – The IP address cannot be specified to begin with "0.", "127.", or a number greater than "224". –...

  • Page 29: Pop3 Settings

    Specifying network settings 1.3.7 POP3 Settings Parameters Parameter Description POP3 Server Address Specify the IP address of the POP3 server. This must be specified in order to receive Internet faxes. POP3 User Name Specify the POP3 user name for this machine. POP3 Password Specify the POP3 password for this machine.
  • Page 30 Specifying network settings Type in the POP3 user name, and then touch [OK]. Touch [POP3 Password]. Touch [New Password], type in the POP3 password, and then touch [OK]. Touch [Confirm new Password], type in the POP3 password again, and then touch [OK]. Touch [Auto-RX Check].

  • Page 31: Scanner Settings

    Specifying network settings 1.3.8 Scanner Settings Parameters Parameter Description Activity Report Select whether or not a notification is sent of Internet fax reception results. RX Doc. Header Print Select whether or not the e-mail message header is printed on the first page of the received document when Internet faxes are printed.

  • Page 32: Specifying The Settings (Rx Doc. Header Print)

    Specifying network settings Specifying the settings (RX Doc. Header Print) In the Network Settings screen, touch [Scanner Settings]. Touch [RX Doc. Header Print]. Select whether or not header information is printed when printing a document received as an Internet fax, and then touch [OK]. Touch [OK] in each screen until the initial screen appears.

  • Page 33: Specifying The Settings (Subject Registration)

    Specifying network settings Select the method for inserting text, and then touch [OK]. – Register text with Assistant tool for C200. For details, refer to "Scan Setting" on page 3-56. Touch [OK] in each screen until the initial screen appears. Specifying the settings (Subject Registration) In the Network Settings screen, touch [Scanner Settings].

  • Page 34: Specifying The Settings (Division Settings)

    Specifying network settings Touch [OK] in each screen until the initial screen appears. Specifying the settings (Division Settings) In the Network Settings screen, touch [Scanner Settings]. Touch [Division Settings]. Touch [Binary Division]. Select whether or not e-mail messages are divided before being sent, and then touch [OK]. Touch [Binary Division Size].

  • Page 35: Specifying The Settings (Gateway Tx)

    Specifying network settings Type the size into which e-mail messages are divided, and then touch [OK]. Touch [OK] in each screen until the initial screen appears. Detail Using the software switch settings, you can select the interval for sending divided messages. For details, refer to "Specifying settings concerning the transmission interval for divided e-mail messages (mode 372)"...

  • Page 36: Ldap Settings

    Specifying network settings 1.3.9 LDAP Settings Parameters Parameter Description LDAP Settings Specify the settings used to connect to the LDAP server. To use the LDAP server, touch [YES]. To not use the LDAP server, touch [NO]. Setting Up LDAP Register the information for the LDAP server to be connected to. Settings can be speci- fied for the following.

  • Page 37: Specifying Settings In Setting Up Ldap Screen 1/4

    Specifying network settings – When the registration is finished, the name of the registered server appears on the button. Setting Up LDAP screen 1/4 appears. Specifying settings in Setting Up LDAP screen 1/4 Touch [Server Name]. Type in the server name, and then touch [OK]. –...
  • Page 38 Specifying network settings Use the keypad to type in the server address, and then touch [OK]. – To specify a host name, touch [Host Name], and then type in the host name for the LDAP server. – The IP address cannot be specified to begin with "0.", "127"., or a number greater than "224". –...

  • Page 39: Specifying Settings In Setting Up Ldap Screen 2/4

    Specifying network settings Specifying settings in Setting Up LDAP screen 2/4 Touch [Search Base]. Specify the starting point for searches, and then touch [OK]. – A maximum of 255 characters can be entered. In Setting Up LDAP screen 2/4, touch [Auth. Type]. Select the authentication method, and then touch [OK].

  • Page 40: Specifying Settings In Setting Up Ldap Screen 3/4

    Specifying network settings Specifying settings in Setting Up LDAP screen 3/4 Touch [Login Name]. – If "anonymous" was selected as the authentication method, it is not necessary to specify the login name and password. Type in the login name, and then touch [OK]. –...

  • Page 41: Specifying Settings In Setting Up Ldap Screen 4/4

    Specifying network settings Specifying settings in Setting Up LDAP screen 4/4 Touch [Domain Name]. – If "GSS-SPNEGO" was selected as the authentication method, type in the domain name of Active Directory. Type in the domain name, and then touch [OK]. –...

  • Page 42: Selecting The Ldap Server Used By Default

    Specifying network settings Type in the length of time until the LDAP search times out, and then touch [OK]. – The length of time can be set between 5 and 300 seconds. After the desired settings have been specified, touch [Check Connect.]. Check that a connection could be established correctly, and then touch [OK].

  • Page 43: Frame Type Set

    Specifying network settings 1.3.10 Frame Type Set Note Specify the settings necessary for this machine to connect to the NetWare server in order to use the printing functions. Parameters Parameter Description Frame Type Set Specify the frame type according to the NetWare environment that this machine is con- necting to.

  • Page 44: Ip Relay Settings

    Specifying network settings 1.3.11 IP Relay Settings Note This parameter appears if the optional fax kit has been installed. Parameters Parameter Description IP Relay Destination Register the address of IP relay stations. Registration Enter the domain name specified for "Self-Domain Name" on the relay station when limit- ing reception according to the domain name during IP relay operations.
  • Page 45 Specifying network settings Touch [IP Relay Address]. Type in the address of the IP relay station, and then touch [OK]. – To specify a host name, touch [Host Name], and then type in the host name for the IP relay station. –...

  • Page 46: When Smtp Authentication Is Used

    Specifying network settings To change the port number, use the keypad to type in the number of the port receiving communication results, and then touch [OK]. – To return to the default setting, touch [Default]. – After changing the port number, the machine must be turned off, then on again. Touch [OK] in each screen until the initial screen appears.

  • Page 47: Raw Port Number Settings

    Specifying network settings Touch [New Password], type in the SMTP authentication password, and then touch [OK]. Touch [Confirm New Password], type in the SMTP authentication password again, and then touch [OK]. Touch [OK] in each screen until the initial screen appears. Detail In order to specify SMTP authentication settings, the software switch settings must be specified.

  • Page 48: Checking The Network Connection (Ping)

    Specifying network settings Checking the network connection (Ping) This function is used to send a ping to check if the network is correctly connected. The ping can be sent to check the connection with an SMTP server, POP3 server or any server (specified IP address). Press the [Utility/Counter] key.
  • Page 49 Specifying network settings Select the destination where the ping is to be sent. – If [Ping IP Address] was touched, type in the IP address of the server to be checked. Press the [Start] key. The ping is sent. C200 1-38...

  • Page 50: Specifying Machine Functions (Software Switch Settings)

    Specifying machine functions (software switch settings)
  • Page 51 Specifying machine functions (software switch settings) Specifying machine functions (software switch settings) Software switch settings By specifying the software switch settings ("Mode Selection", "Bit Selection" and "HEX Selection"), various machine functions can be changed to meet your specific needs. Reminder Do not change any modes or bits other than those described in this manual.
  • Page 52 Specifying machine functions (software switch settings) Decimal number "Bit Selection" "HEX Selection" setting (hexadecimal number) setting (binary number) 1111 1111 C200...

  • Page 53: Specifying Software Switch Settings

    Specifying machine functions (software switch settings) Specifying software switch settings Follow the procedure described below to specify the software switch settings. In the Administrator Management screen, touch [↓] to display the next page. – For details on displaying the Administrator Management screen, refer to "Displaying the Network Settings screen"...
  • Page 54 Specifying machine functions (software switch settings) – To specify the hex value, touch [HEX Selection], use the keypad or touch [A] through [F] to specify the value, and then touch [Apply]. To change the setting for a different mode, repeat steps 3 and 4. Touch [OK].

  • Page 55: List Of Software Switch Settings

    Specifying machine functions (software switch settings) List of software switch settings 2.3.1 List of network settings Title Mode Page refer- ence Specifying settings concerning the SMTP transmission timeout p. 2-8 Specifying settings concerning the SMTP reception timeout p. 2-9 Specifying settings concerning the POP3 reception timeout p.

  • Page 56: List Of Printing Settings

    Specifying machine functions (software switch settings) Title Mode Page refer- ence Specifying whether transmission source information is added when performing a IP relay op- p. 2-33 eration, or when forwarding received documents Specifying the default setting for the coding method for Internet Fax (E-mail) p.

  • Page 57: Network Settings

    Specifying machine functions (software switch settings) Network settings The software switch settings related to the network are described below. 2.4.1 Specifying settings concerning the SMTP transmission timeout (mode 356) Specify the time until a connection with the SMTP server times out during an e-mail transmission. Factory settings Bits 7654 3210...

  • Page 58: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.2 Specifying settings concerning the SMTP reception timeout (mode 357) Specify the time until a connection with the SMTP server times out during an e-mail reception. Factory settings Bits 7654 3210 Settings 1010 0000 (HEX: A0) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 59: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.3 Specifying settings concerning the POP3 reception timeout (mode 358) Specify the time until a connection with the POP3 server times out during an e-mail reception. Factory settings Bits 7654 3210 Settings 0010 0000 (HEX: 20) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 60: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.4 Specifying settings concerning Assistant tool for C200, SMTP transmission/reception and POP3 reception (mode 361) Specify settings concerning Assistant tool for C200, SMTP transmission/reception and POP3 reception. Factory settings Bits 7654 3210 Settings 1111 1000 (HEX: F8) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 61: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.6 Specifying settings concerning the FTP connection timeout (mode 365) Specify the time until a connection with the FTP server times out when there is no FTP command request after logging on to the FTP server. Factory settings Bits 7654 3210...

  • Page 62: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.8 Specifying settings concerning the transmission interval for divided e-mail messages (mode 372) Specify the transmission interval for divided e-mail messages. Factory settings Bits 7654 3210 Settings 0000 1111 (HEX: 0F) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 63: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.10 Specifying settings for IPP printing (mode 378) Specify settings concerning the IPP protocol. Factory settings Bits 7654 3210 Settings 1111 1111 (HEX: FF) Specifying the settings During the production of this unit, the settings in the shaded cells were selected. Bits Description Settings...

  • Page 64: Specifying The Settings

    Specifying machine functions (software switch settings) Bits Description Settings Details Specify whether or not mail transmission authentication Not used (PLAIN authentication) is used. Used Specify whether or not the SMTP authentication ID and The ID and password are password are shared with the POP3 user name and pass- shared.

  • Page 65: Specifying The Settings

    Specifying machine functions (software switch settings) SMTP authentication is enabled when the following conditions are met. Bit 6 of mode 383 is set to "1". Bit 5, 4 or 3 of mode 383 is set to "1". Detail For details on specifying SMTP authentication settings for e-mail receptions, refer to "SMTP RX Settings"...

  • Page 66: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.14 Specifying settings concerning the SMB protocol (mode 385) Specify settings concerning the SMB transmission protocol and the SMB print protocol. Factory settings Bits 7654 3210 Settings 1100 0000 (HEX: C0) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 67: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.16 Specifying settings concerning the encryption method for SSL/TLS and the SNMP protocol (mode 389) Specify settings concerning the encryption method for SSL/TLS and the SNMP protocol. Factory settings Bits 7654 3210 Settings 0000 1100 (HEX: 0C) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 68: Specifying The Settings

    Specifying machine functions (software switch settings) 2.4.17 Specifying settings concerning the SNMP protocol (mode 390) Specify the security level for the SNMP protocol. Factory settings Bits 7654 3210 Settings 1010 0100 (HEX: A4) Specifying the settings During the production of this unit, the settings in the shaded cells were selected. Bits Description Settings...

  • Page 69: Specifying The Settings

    Specifying machine functions (software switch settings) Scanning/faxing settings The software switch settings related to scanning/faxing are described below. Note For details on the Fax/Scan mode operations, refer to the User’s Guide [Network Scan/Fax/Network Fax Operations]. 2.5.1 Specifying settings concerning the position of the transmission source information and concerning password communications (mode 000) Specify settings concerning the position of the transmission source information and concerning password communications.
  • Page 70 Specifying machine functions (software switch settings) Bits Description Settings Details Specify whether or not the recipient name is added to trans- Is not added mitted original. Is added C200 2-21...

  • Page 71: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.3 Specifying printing of the memory clear report and the report for a broadcast transmission (mode 002) Specify whether the memory clear report is printed and when the report is printed with a broadcast transmission.

  • Page 72: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.4 Specifying the storage time for failed transmission originals (mode 004) Specify the length of time for storing originals that could not be transmitted. Factory settings Bits 7654 3210 Settings 0000 0110 (HEX: 06) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 73: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.5 Specifying whether or not a received date report is added and its format (mode 016) Specify whether or not a received date report is added and how it is formatted when a network fax or fax is received.

  • Page 74: Specifying Settings For Administrator Forwarding (Mode 024)

    Specifying machine functions (software switch settings) Bits Description Settings Details Specify whether or not an image of the transmitted docu- Is not added ment is added to the results report. Is added − *Do not change the settings for these bits. 2.5.7 Specifying settings for administrator forwarding (mode 024) Specify whether or not transmitted originals are forwarded to the recipient specified as the administrator.

  • Page 75: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.8 Specifying settings concerning transmission if the memory becomes full (mode 025) Specify whether or not to send the transmission if the memory of this machine became full while scanning the original. Factory settings Bits 7654 3210 Settings...

  • Page 76: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.10 Specifying settings for fax reception functions (mode 030) Specify whether or not rotation or 2in1 printing is used with received faxes. Factory settings Bits 7654 3210 Setting (North American model) 1101 0001 (HEX: D1) Setting (European model) 1101 0000 (HEX: D0) Specifying the settings...

  • Page 77: Specifying The Settings

    Specifying machine functions (software switch settings) Bits Description Settings Details − *Do not change the setting for this bit. Specify whether or not the bypass tray can be selected when Cannot be selected printing received faxes. Can be selected − *Do not change the settings for these bits.

  • Page 78: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.13 Specifying settings for the number of rings until automatic reception (port 2) (mode 249) Specify the number of rings until an automatic reception is performed at port 2. Factory settings Bits 7654 3210 Settings 0000 1000 (HEX: 08) Specifying the settings...

  • Page 79: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.14 Specifying settings for receiving long documents (mode 301) Specify how to print long documents that are received. The received document can be automatically reduced or the excess can be discarded. Factory settings Bits 7654 3210 Setting (North American model) 0001 1001 (HEX: 19)

  • Page 80: Specifying The Setting For Selecting Paper When Printing Received Documents (Mode 302)

    Specifying machine functions (software switch settings) Maximum reduction ratio: Since excess longer than the length specified by bits 7, 6 and 5 is reduced to fit within the paper, specify the maximum of this reduction ratio. (Available only if bit 1 is set to "0" while printing received documents.) For example, if "90%"...

  • Page 81: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.16 Specifying settings concerning Internet faxing (mode 350) Specify the POP3 setting and the efficiency of the recipient’s machine for Internet faxing. Factory settings Bits 7654 3210 Settings 0010 1000 (HEX: 28) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 82: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.17 Specifying transmission source information for IP address fax transmissions and IP relay operations (mode 351) Specify the transmission source information for IP relay operations or for forwarding received IP address fax documents. Factory settings Bits 7654 3210 Settings...

  • Page 83: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.19 Specifying the default setting for the coding method for Internet Fax (E-mail) (mode 360) Specify the default coding method for Internet Fax (E-mail). Factory settings Bits 7654 3210 Settings 1000 0000 (HEX: 80) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 84: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.21 Specifying settings concerning the default address input screen and the From information for accounts (mode 366) Specify the default screen for IP address faxing and Scan to SMB and Scan to FTP operations. In addition, in order to prevent anonymous e-mail from being sent, you can select whether or not the account setting is in the From information for e-mail messages.

  • Page 85: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.23 Specifying settings concerning Full mode functions with Internet faxing (mode 373) Specify settings concerning Full mode functions with Internet faxing. Factory settings Bits 7654 3210 Settings 0000 1000 (HEX: 08) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 86: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.25 Specifying settings concerning the communication results of IP relay operations (mode 382) Specify the length of time until the communication results for an IP relay operation times out and the specified operation is performed. Factory settings Bits 7654 3210...

  • Page 87: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.26 Specifying the coding method for Scan to E-mail, Scan to SMB and Scan to FTP (mode 391) Specify the coding method for Scan to E-mail. Factory settings Bits 7654 3210 Settings 0000 0000 (HEX: 00) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 88: Specifying The Settings

    Specifying machine functions (software switch settings) 2.5.28 Specifying settings concerning the Direct Input tab and broadcast transmissions (mode 476) Specify whether or not the Direct Input tab is displayed, and whether or not broadcast transmissions are permitted. Factory settings Bits 7654 3210 Settings 0000 0000 (HEX: 00)

  • Page 89: Specifying The Settings

    Specifying machine functions (software switch settings) Bits Description Settings Details Specify whether or not a screen asking for confirmation of Does not display the setting the settings is displayed before a broadcast transmission. confirmation screen Displays the setting confir- mation screen before a broadcast transmission Normally displays the set- ting confirmation screen, re-...

  • Page 90: Specifying The Settings

    Specifying machine functions (software switch settings) Note The default settings for bit 7 are shown below. North American model: 1 European model: 0 2.5.31 Specifying settings for checked receiver transmissions (mode 804) Specify whether or not the fax transmission is sent after checking the CSI (called subscriber ID) signal from the recipient’s machine.
  • Page 91 Specifying machine functions (software switch settings) Compared item Comparison relationship Operation Comparison number When the comparison number has The comparison is performed only less digits than the number of digits with the number of digits in the com- in the CSI signal parison number.

  • Page 92: Specifying The Settings

    Specifying machine functions (software switch settings) Printing settings The software switch settings related to printing are described below. Note For details on printing operations, refer to User’s Guide [Print Operations]. 2.6.1 Specifying the storage time for confidential documents (mode 304) Specify the length of time that confidential documents are stored.

  • Page 93: Copying Settings

    Specifying machine functions (software switch settings) Copying settings The software switch settings related to copying are described below. Note For details on Copy mode operations, refer to User’s Guide [Copy Operations]. 2.7.1 Specifying settings for the main application (mode 402) Specify whether the machine will be used mainly with Copy mode operations or printing operations.

  • Page 94: Specifying Whether Or Not The Number Of Copies Are Limited (Mode 417)

    Specifying machine functions (software switch settings) 2.7.3 Specifying whether or not the number of copies are limited (mode 417) Specify whether or not the number of copies are limited. Factory settings Bits 7654 3210 Settings 0000 0000 (HEX: 00) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 95: Specifying The Settings

    Specifying machine functions (software switch settings) 2.7.5 Specifying settings for Enlarge Display mode (mode 501) Specify how screens are displayed in Enlarge Display mode while touch panel operations are performed. Factory settings Bits 7654 3210 Settings 0000 0000 (HEX: 00) Specifying the settings During the production of this unit, the settings in the shaded cells were selected.

  • Page 96: Assistant Tool For C200

    Assistant tool for C200...

  • Page 97: Introduction

    Assistant tool for C200 Assistant tool for C200 Introduction Assistant tool for C200 is a device management utility supported by the HTTP server integrated into the printer controller. Using a Web browser on a computer connected to the network, machine settings can be specified.

  • Page 98: Accessing Assistant Tool For C200

    The pages of Assistant tool for C200 are constructed as shown below. Item Description Konica Minolta logo Click the logo to go to the Konica Minolta Web site. [Logout] button This button appears after you have logged on when account track settings have been specified. Click this button to log off.

  • Page 99: Specifying Settings

    Assistant tool for C200 3.1.5 Specifying settings Assistant tool for C200 has a User mode, which can be used by any user, and an Administrator mode, which is used by the machine administrator. The settings that can be specified differ for each mode. User mode User mode can be used by the general user.
  • Page 100 Assistant tool for C200 Tabs Parameter Description Fax/Scan One-Touch Key Registra- One-touch dial registration information can be exported and imported. tion TX Settings Settings for registering source information and for redialing can be spec- ified. RX Settings Output settings for memory reception can be specified. Fax Settings Information such as the machine’s ID and telephone number can be specified.

  • Page 101: Logging On And Logging Off

    Assistant tool for C200 Logging on and logging off The procedure for logging on to Administrator mode and the procedure for logging on when account track settings have been specified are described below. 3.2.1 Logging on to Administrator mode Note When logged on to Administrator mode, the control panel of the machine is locked and cannot be used.

  • Page 102: When Account Track Settings Have Been Specified

    Assistant tool for C200 3.2.2 When account track settings have been specified If account track settings have been specified, a logon page appears when this machine is accessed. Type in the account name and password, and then click the [Login] button. To log on to Administrator mode, type in the administrator password for the machine, and then click the [Login] button.

  • Page 103: User Mode

    Assistant tool for C200 User mode The procedure for using the menu that appears on the left side of the main User mode page is described below. 3.3.1 System tab On the System tab, information and settings concerning the system configuration of this machine are displayed.

  • Page 104: Detail - Output Tray

    Assistant tool for C200 Detail - Output Tray Information on the output trays installed on the machine is displayed. Item Description Output Tray Shows the statuses of the installed output trays. Note This menu item appears if the optional separator has been installed. Detail - Interface Information Information on the network that this machine is connected to and the interface available for printing from a computer are displayed.

  • Page 105: Detail - Consumables

    Assistant tool for C200 Detail - Consumables Information on the consumables can be viewed. Item Description Consumables Shows the statuses of each toner and imaging unit, the fusing unit, the image transfer belt unit and the waste toner box. Note The information that is displayed differs depending on the options that have been installed.

  • Page 106: Online Assistance

    Assistant tool for C200 Item Description Others Shows the number of document pages scanned, the number of pages used for printing, and the number of double-sided copy or printing pages. Online Assistance Online support information for the machine is displayed. Item Description Online Assistance...
  • Page 107 Assistant tool for C200 Jobs sent by the machine can be checked. Item Description Doc.# Shows the document number. Time Stored Shows the date and time that the job was received. User/Account Shows the name of the account that is logged on. Destination Shows the destination information.

  • Page 108: Print Tab

    Assistant tool for C200 3.3.3 Print tab From the Print tab, the default settings for printing functions can be viewed. Default Settings - General Settings The default settings for printing functions are displayed. Item Description PDL Setting Shows the page description language. Copies Shows the number of copies specified for a print command received with the number of copies not specified.

  • Page 109: Default Settings - Ps Setting

    Assistant tool for C200 Default Settings - PS Setting The default settings for PS printing functions are displayed. Item Description PS Error Print Shows whether or not error information is printed when an error occurs during PS printing. 3.3.4 Fax/Scan tab From the Fax/Scan tab, one-touch destinations, fax programs and character strings can be registered, and their settings can be changed.

  • Page 110: Registering, Editing And Deleting One-Touch Dial Buttons

    Assistant tool for C200 Registering, editing and deleting one-touch dial buttons Follow the procedure described below to register, edit or delete one-touch dial buttons. Note For details on registering one-touch dial buttons from the control panel, refer to the User’s Guide [Network Scan/Fax/Network Fax Operations].
  • Page 111 Assistant tool for C200 Note The following number and types of characters can be entered for the index name. Range: Up to 8 characters Characters that can be entered: Alphanumeric characters and symbols (space ! " # $ % & ' ~ = ¥ | ; : + * ` / ? @ _ - .
  • Page 112 Assistant tool for C200 Specifying TX: InternetFax settings Item Description One-Touch No. Shows the number of the one-touch dial button to be programmed. One-Touch Name Type in the recipient name that will appear on the one-touch dial button. Range: Up to 24 characters Characters that can be entered: Alphanumeric characters and symbols (! # $ % &...
  • Page 113 Assistant tool for C200 Item Description Destination Address Select the method (IP address/host name) for specifying the destination address, and then type in the address of the destination. A host name can be specified for the destination address if "DNS Settings" has been set to "ON".
  • Page 114 Assistant tool for C200 Item Description Sub Address Regis- A secondary recipient can be registered in case the data could not be sent to the main one- tration* touch dial destination. Click the [Sub Address Registration] button to display a page where the secondary destination can be selected.
  • Page 115 Assistant tool for C200 Item Description One-Touch Name Type in the recipient name that will appear on the one-touch dial button. Range: Up to 24 characters Characters that can be entered: Alphanumeric characters and symbols (! # $ % & ' ~ = + ` @ _ - { }) Destination Address Select the method (IP address/host name) for specifying the destination address, and then...

  • Page 116: Fax Program Registration

    Assistant tool for C200 Item Description Destination Address Select the method (IP address/host name) for specifying the destination address, and then type in the address of the destination computer. A host name can be specified for the destination computer if "DNS Settings" has been set to "ON".

  • Page 117: Registering, Editing And Deleting Fax Programs

    Assistant tool for C200 Registering, editing and deleting fax programs Follow the procedure described below to register, edit or delete fax programs. Note For details on registering fax programs from the control panel, refer to the User’s Guide [Network Scan/Fax/Network Fax Operations]. Click the Fax/Scan tab.
  • Page 118 Assistant tool for C200 Specify the fax program settings. Item Description One-Touch No. Shows the number of the one-touch dial button to be programmed. Program Name Type in the name of the program. Range: Up to 24 characters Characters that can be entered: Alphanumeric characters and symbols (space ! " # $ % & ' ~ = ¥...
  • Page 119 Assistant tool for C200 Item Description Quick Scan TX Select whether or not to send a quick transmission (send the fax at the same time that the doc- ument page is scanned). Timer TX Select whether or not to send a timer transmission (send the fax at the specified time). Time For a timer transmission, type in the starting time of the transmission.

  • Page 120: Domain Name Registration

    Assistant tool for C200 Domain Name Registration Character strings, such as frequently used domain names, can be registered. Registered character strings can be selected by touching [Domain] when entering addresses from the control panel. Item Description Domain Name 1-6 Type in the string of characters to be registered. Range: Up to 64 characters Characters that can be entered: Alphanumeric characters and symbols (- .

  • Page 121: Administrator Mode

    Assistant tool for C200 Administrator mode The procedure for using the menu that appears on the left side of the main Administrator mode page is described below. 3.4.1 System tab From the System tab, settings concerning the system configuration of this machine can be specified. System Settings - Measurement Unit Setting Specify the basic unit of measure used with this machine.

  • Page 122: System Settings - Auto Color Level Adjustment

    Assistant tool for C200 System Settings - Auto Color Level Adjustment Specify the automatic color adjustment level for this machine. Item Description Auto Color Level Specify the reference level for detecting a color or black-and-white document when the "Auto Adjustment Color"...

  • Page 123: System Settings - Output Settings

    Assistant tool for C200 System Settings - Output Settings Specify output settings for each function. Item Description Print/Fax Output Specify the timing for printing data received with each function ("Printer" and "Fax/E-Mail"). Setting Select whether the received data is printed in one batch after it is received, or whether it is printed while it is being received.

  • Page 124: System Settings - Paper Size/Type Counter

    Assistant tool for C200 Item Description Daylight Saving Type in the starting month, and then select the starting week number and day of the week. Time (Type B) Type in the ending month, and then select the starting week number and day of the week. System Settings - Paper Size/Type Counter The paper type and the amount used of each paper size can be checked.

  • Page 125: Administrator Settings

    Assistant tool for C200 Administrator Settings Specify the e-mail address of the recipient for the activity report. Item Description Activity Report E- Type in the e-mail address where the activity report is to be sent. mail Address Range: Up to 64 characters Characters that can be entered: Alphanumeric characters and symbols (! # $ % &...
  • Page 126 Assistant tool for C200 Item Description Account Name Type in the account name. Range: Up to 12 characters Characters that can be entered: Alphanumeric characters and symbols (space ! # $ % & ' ~ ^ = ¥ | ; : * ` / ? @ _ - . , ( ) [ ] { } < >) Password Type in the password for logging on to the account.
  • Page 127 Assistant tool for C200 Item Description Network Info. E-Mail Address(From) Type in the e-mail address for the account. Range: Up to 64 characters Characters that can be entered: Alphanumeric characters and symbols (! # $ % & ' * + - . / = ? _ ` { | } ~ @) SMTP Authentication Specify the SMTP authentication user name used when SMTP au- User Name...

  • Page 128: Online Assistance

    Assistant tool for C200 Online Assistance Register online support information for the machine and change the settings. Note This information appears in the Online Assistance page in User mode. Item Description Contact Name Specify the name of the contact for the machine. Range: Up to 63 characters Characters that can be entered: Alphanumeric characters and symbols Contact Information...

  • Page 129: Print Tab

    Assistant tool for C200 3.4.2 Print tab From the Print tab, default settings for the connection interface and for printing functions can be specified. Local I/F The local interface timeout setting can be changed. Item Description Timeout Type in the reception timeout for the local interface. (Range: 10 to 1000 seconds) Default Settings - General Settings The default settings for printing functions can be specified.

  • Page 130: Pcl Setting

    Assistant tool for C200 PCL Setting The default settings for PCL printing functions can be specified. Item Description Font Name Select the font used in the PCL mode. Symbol Set Select the symbol set. Font Size Type in either the font point size (Range: 4.00 to 999.75) or the font pitch (Range: 0.44 to 99.99), depending on the selected font.

  • Page 131: Fax/Scan Tab

    Assistant tool for C200 3.4.3 Fax/Scan tab From the Fax/Scan tab, communication setting for faxes and scan data can be specified. One-Touch Key Registraion - Import One-touch dial registration information can be imported into the machine. Item Description Import Click the [Browse...] button, and then specify the one-touch dial registration file to be imported into the machine.

  • Page 132: Tx Settings - Tsi Registraion

    Assistant tool for C200 Reminder The file containing the one-touch dial information is in a format where registered information is separated by a comma (,). Do not delete the comma since it is extremely important that it is used to separate the information.

  • Page 133: Rx Settings - Memory Rx Time Setting

    Assistant tool for C200 RX Settings - Memory RX Time Setting Specify the settings for the printing function that prints received fax documents together on a specified day and at a specified time. Item Description Memory RX Time Select whether or not to print received fax documents together at the specified time. Start Time When specifying a time, type in the starting time for printing.

  • Page 134: Fax Settings - Self-Telephone # Information 1/2

    Assistant tool for C200 Fax Settings - Self-Telephone # Information 1/2 Specify the telephone number, private branch exchange and line type for each port. Item Description Self-Telephone # Type in the fax number. Range: Up to 20 digits Characters that can be entered: Numbers and symbols (+) Dialing Method Select "DP20pps", "DP10pps"...

  • Page 135: Fax Settings - Password Communication

    Assistant tool for C200 Fax Settings - Password Communication Specify the password that is used for sending and receiving faxes. Item Description Password Type in the password. Range: 2 digits Characters that can be entered: Numbers Document Management - Forward to Administrator Specify the administrator where documents are to be forwarded.

  • Page 136: Document Management - Rx Document

    Assistant tool for C200 Document Management - RX Document Specify how received documents are processed when a fax is received. Item Description Fax(G3/G3-1/G3-2) Select to specify how documents are managed when they are received at the G3, G3-1 and G3-2 ports. Network Select to specify how documents are managed when they are received by Internet faxing or IP address faxing.
  • Page 137 Assistant tool for C200 Detail "RX Doc. Settings" can be set to any of the following settings. Memory RX: Select this setting to save received documents in the All Other Docs. user box without printing them. To print documents saved in the user box, touch [Doc.] in the Job List screen of the control panel.
  • Page 138 Assistant tool for C200 If "All Other Documents" was selected Item Description Password Type in the password necessary for printing the document. Range: Up to 20 digits Characters that can be entered: Numbers and symbols (# *) Retype Password For confirmation, type in the password again. Range: Up to 20 digits Characters that can be entered: Numbers and symbols (# *) RX Doc.
  • Page 139 Assistant tool for C200 If "User Box" was selected Item Description Box Select When a box number range is selected in the top part of the page, the list of user box numbers within the selected range appear in the bottom part of the page. User Box No.

  • Page 140: Report Settings

    Assistant tool for C200 Item Description Forwarding Desti- If "Forward" or "Print & Forward" was selected for "RX Doc. Settings", specify the forwarding nation destination. Click the [Select Forward Dest.] button to display a page where forwarding destinations can be selected. Select the check box for the forwarding destination, and then click the [Apply] but- ton.

  • Page 141: Network Tab

    Assistant tool for C200 3.4.4 Network tab From the Network tab, information and settings concerning network connections can be specified. Common Setting - TCP/IP Specify the TCP/IP settings. Item Description TCP/IP Setting Select whether or not TCP/IP is used. DHCP Setting Select whether or not DHCP is used.

  • Page 142: Common Setting - Ipp

    Assistant tool for C200 Common Setting - IPP Specify the IPP settings. Item Description IPP Setting Select whether IPP is turned on or off. Accept IPP Jobs Select whether IPP job permitting is turned on or off. In order to use IPP printing, select "ON". Print Job Select "Enable"...

  • Page 143: Common Setting - Netware

    Assistant tool for C200 Common Setting - NetWare Specify the NetWare settings. Item Description NetWare Setting Select whether or not NetWare is used. Frame Type Select the frame type used with NetWare. NDS/Bindery Setting If "Operating Mode" is set to "PServer", select whether only NDS is valid or whether NDS and Bindery are valid.

  • Page 144: Common Setting - Netware Status

    Assistant tool for C200 Reminder In order to apply changes to the settings for parameters marked with , the machine must be restarted (turn it off, then on again). When the machine is turned off, then on again, turn the machine off with the sub power switch before turning off the main power switch.

  • Page 145: Common Setting - Ldap

    Assistant tool for C200 Item Description Printer Name Type in the printer name that appears in AppleTalk. Range: Up to 31 characters Characters that can be entered: Alphanumeric characters and symbols (space ! " # $ % & ' ( ) | ` { } + * < > ? _ - ^ @ [ ] ; : , . / ¥) Zone Name Type in the name of the zone to be used with AppleTalk.

  • Page 146: Common Setting - Ldap Server Setting

    Assistant tool for C200 Common Setting - LDAP Server Setting Specify the LDAP server settings. Item Description Shows the name of the registered LDAP server. Click a box containing "---", indicating that the LDAP server has not yet been registered, to display a page for registering the LDAP server.

  • Page 147: Pop3

    Assistant tool for C200 Item Description Search Base Specify the starting point for LDAP searches. Range: Up to 255 characters Characters that can be entered: Alphanumeric characters and symbols (space ! " # $ % & ' ~ = ¥ | ; : + * ` / ? ? @ _ - . , ( ) [ ] { } < >) Authentication Type Select the authentication method used for logging on to the LDAP server.

  • Page 148: Smtp Tx Settings

    Assistant tool for C200 Item Description POP3 Password Type in the password. Range: Up to 32 characters Characters that can be entered: Alphanumeric characters and symbols (space ! " # $ % & ' ~ = ¥ | ; : + * ` / ? ^ @ _ - . , ( ) [ ] { } < >) Retype POP3 Pass- For confirmation, type in the password again.
  • Page 149 Assistant tool for C200 Item Description E-Mai Address Type in the e-mail address for this machine. Range: Up to 64 characters Characters that can be entered: Alphanumeric characters and symbols (! # $ % & ' * + - . / = ? _ ` { | } ~ @) SMTP Authentication SMTP Authentication Type in the SMTP authentication user name used when SMTP au-...

  • Page 150: Smtp Rx Settings

    Assistant tool for C200 SMTP RX Settings Specify the settings for SMTP reception. Item Description Self-Domain Name Type in the domain name for this machine. Range: Up to 64 characters Characters that can be entered: Alphanumeric characters and symbols (- . @) Port Number Type in the port number for the SMTP server.

  • Page 151: Scan Setting

    Assistant tool for C200 Scan Setting Specify the scanning settings. Item Description Machine Name Type in the name of the machine. Range: Up to 16 characters Characters that can be entered: Alphanumeric characters and symbols (! # $ % & ' ~ = + ` @ _ - { }) Binary Division Select whether or not data that exceeds the specified file size is divided into binary parts and...

  • Page 152: Ftp Setting

    Assistant tool for C200 FTP Setting Specify the settings for FTP client functions and FTP server functions. Item Description FTP Client Setting Select whether or not to use the machine as an FTP client (Scan to FTP). FTP Server Setting Select whether or not to use the machine as an FTP server.

  • Page 153: Smb Setting

    Assistant tool for C200 SMB Setting Specify the SMB settings. Item Description Scan Setting Select whether or not to use scanning using SMB (Scan to SMB). Print Setting Select whether or not to use printing using SMB (SMB printing). NetBIOS Name Type in the NetBIOS name.

  • Page 154: Snmp Setting - Common Setting

    Assistant tool for C200 SNMP Setting - Common Setting Specify the SNMP settings. Item Description SNMP v1/v2c Setting Select whether or not SNMP v1/v2c is used. SNMP v3 Setting Select whether or not SNMP v3 is used. UDP Port Number Type in the UDP port number.

  • Page 155: Snmp Setting - Snmp V3 Settings

    Assistant tool for C200 Item Description Read Community Name Type in the community name used when reading. Range: Up to 15 characters Characters that can be entered: Alphanumeric characters and symbols (space ! " # $ % & ' ~ = ¥ | ; : + * ` / ? @ _ - . , ( ) [ ] { } < >) Write Community Name Type in the community name used when writing.

  • Page 156: Ssl Setting

    Assistant tool for C200 Item Description Write User Name Type in the user name for write users. Range: Up to 32 characters Characters that can be entered: Alphanumeric characters and symbols (space ! " # $ % & ' ~ = ¥ | ; : + * ` / ? @ _ - . , ( ) [ ] { } < >) Write Security Level Select the security level for write users.

  • Page 157: Ssl Setting - Certificate Creation

    Assistant tool for C200 SSL Setting - Certificate Creation Specify the settings to create a certificate. Item Description Common Name Shows the IP address of this machine. Department Type in the name of the organization or group. Range: Up to 63 characters Characters that can be entered: Alphanumeric characters and symbols (space ! "...

  • Page 158: Ssl Setting - Change Ssl Setting

    Assistant tool for C200 The next time that "SSL Setting" is clicked in the Network tab, the specified settings are displayed. SSL Setting - Change SSL setting The specified SSL settings can be changed. Item Description SSL Setting Select whether or not to enable SSL. After changing the settings for these parameters, the ma- chine must be turned off, then on again.

  • Page 159: Ip Relay - Ip Relay Settings

    Assistant tool for C200 Reminder In order to apply changes to the settings for parameters marked with , the machine must be restarted (turn it off, then on again). When the machine is turned off, then on again, turn the machine off with the sub power switch before turning off the main power switch.
  • Page 160 Assistant tool for C200 Registering an IP relay station Item Description IP Relay Address Select the method (IP address/host name) for specifying the address, and then type in the ad- dress of the IP relay station. IP address format: ***.***.***.***; Range for ***: 0 to 255 Host name range: Up to 64 characters Characters that can be entered: Alphanumeric characters and symbols (! # $ % &...

  • Page 161: Auto Log-Out

    Assistant tool for C200 Auto Log-out Specify the length of time until the user is automatically logged off if no operation is performed for the set length of time while the user is logged on. Item Description Auto log-out Time Select the length of time until an automatic logoff is performed.

  • Page 162: Appendix

    Appendix...

  • Page 163: Product Specifications (Network Operations)

    Appendix Appendix Product specifications (Network operations) Item Specification Type Embedded Connection cable 10Base-T/100Base-TX Connector RJ-45 Main compatible proto- TCP/IP (IPv4), BOOTP, ARP, ICMP, DHCP, AutoIP, LPR/LPD, RAW Socket, HTTP, POP, cols SMTP, SSL, Ping, DNS, SLP, SNMP, FTP, SMB, IPP, LDAP, IPX/SPX, AppleTalk Assistant tool for C200 Compatible Web browsers system requirements...

  • Page 164: Index

    Index...
  • Page 165 Index Index Index Account track ............3-7 Fax Program Registration ........3-21 Account Track Registration .........3-30 Fax Settings - Password Communication ...3-40 Activity Report .............1-20 Fax Settings - RX Functions ........3-39 Administrator mode ........3-4 3-26 Fax Settings - Self-ID ..........3-38 Administrator Settings .........3-30 Fax Settings - Self-Telephone # Information 1/2 ......3-39 APOP authentication ...........2-14...
  • Page 166 Index System Settings - Power Save Setting ....3-27 System tab (Administrator mode) ......3-26 PCL Setting ............3-35 System tab (User mode) ........3-8 Ping ..............1-37 POP Before SMTP time ........2-11 POP3 ..............3-52 TCP Socket Setting ..........3-63 POP3 Password ..........1-18 TCP/IP ..............2-16 POP3 reception ...........2-11 TX Settings - TSI Registraion ......3-37 POP3 reception timeout ........2-10 POP3 Server Address ..........1-18...
