System 5 Digital Audio Mixing System Operation Manual
6.3

Bus Routing Panel

BVU950
This panel shows the Group and Mix Bus routing for channels assigned to the Center
Strip. The Rec Ready, Route Grp, Route Mix, and Route Section switches along
the bottom of the panel determine the information being displayed and controlled.
These switches intercancel: only one can be lit and active at a time. The Pan To: GRP
Busses and MIX Busses keys switch pan in/out for the Group and Mix Busses.
NOTE: The Reverse Route switch is not currently operational.
6.3.1 Route Grp
All 48 switches indicate Group Bus routing. The green number LEDs light to indicate
the available busses. The switches light to show that the Center Strip channel is routed
to that Group Bus.
6.3.2 Route Mix
All 48 switches indicate Mix Bus routing. The green number LEDs light to indicate the
available busses. The switches light to show that the Center Strip channel is routed to
that Mix Bus.
6.3.3 Route Section
This is the default mode of operation. The top two rows indicate Group Bus routing.
The bottom row is used for the 16 Mix Busses.
6.3.4 Rec Ready
This mode allows track arming up to 48 tracks of a record machine.

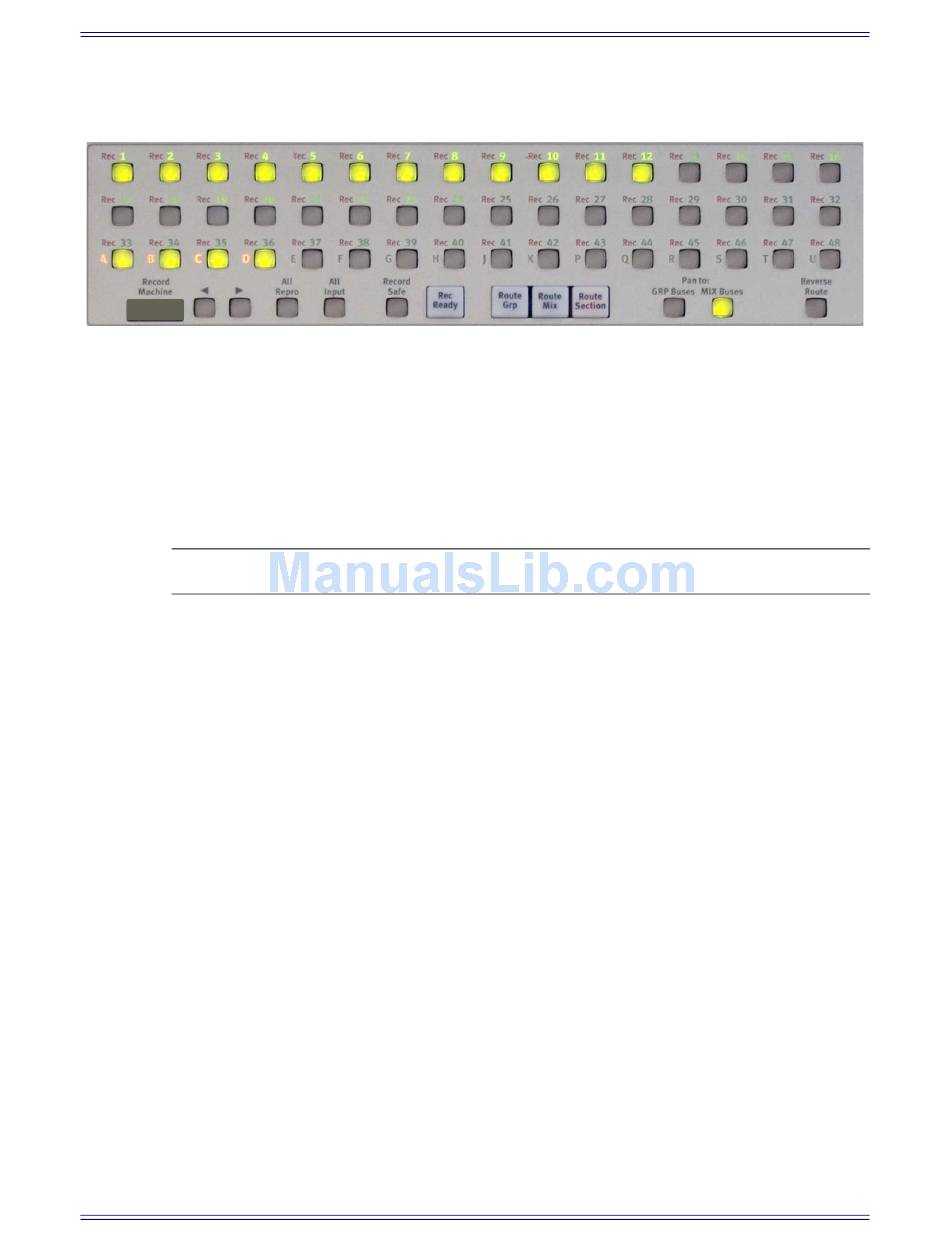

Figure 6-5 Bus Routing Panel
86
CM402T Center Section
